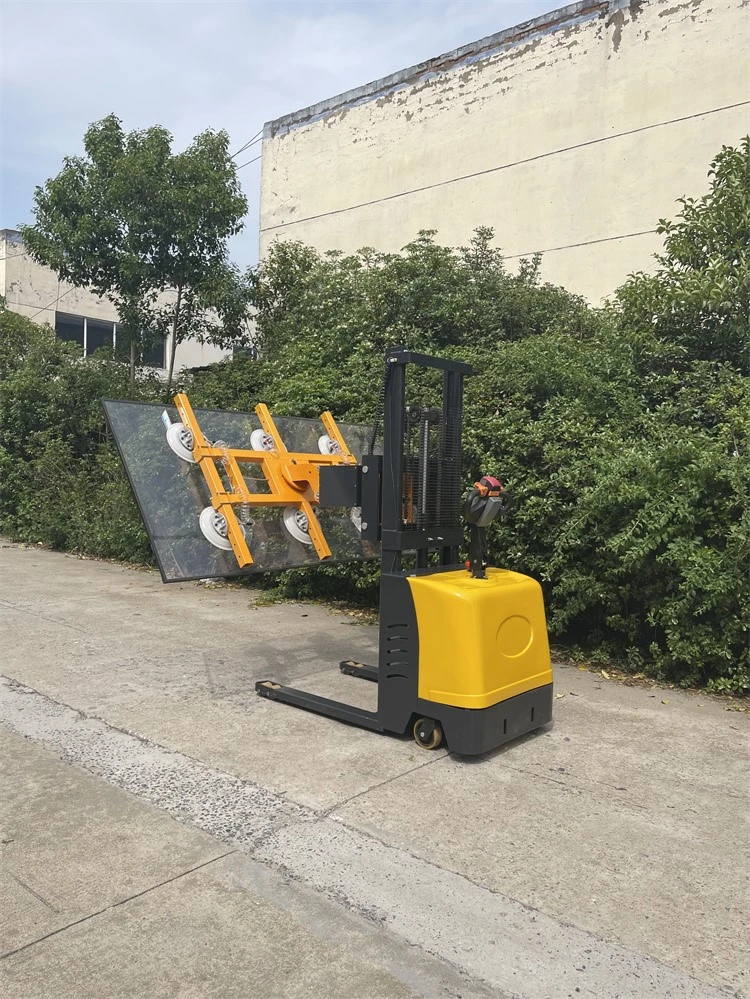

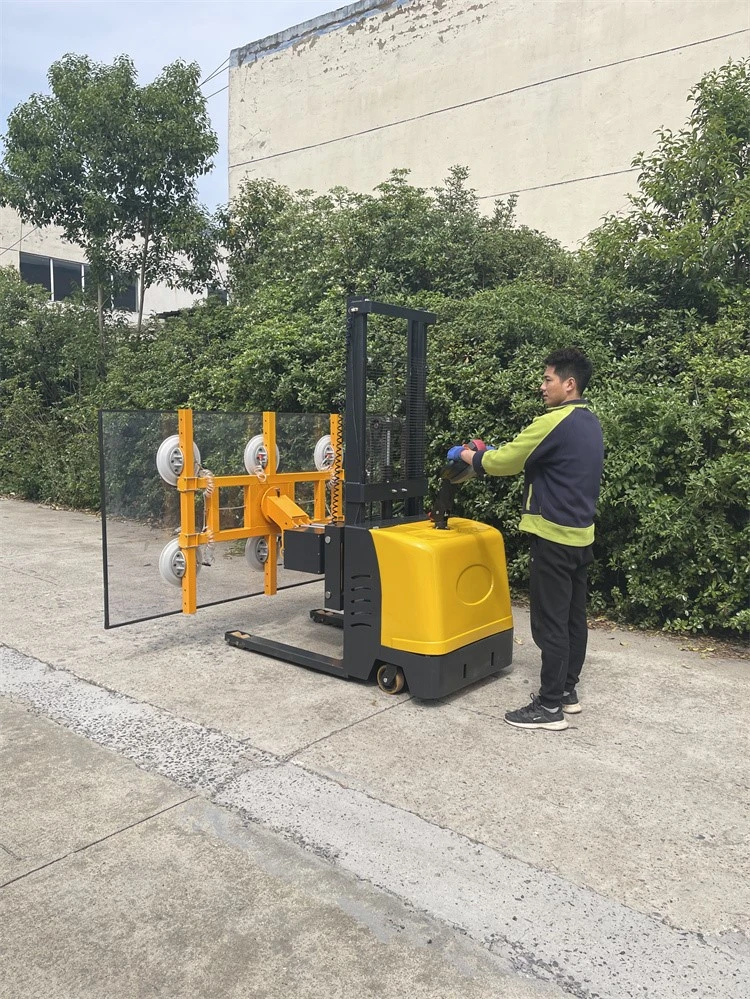

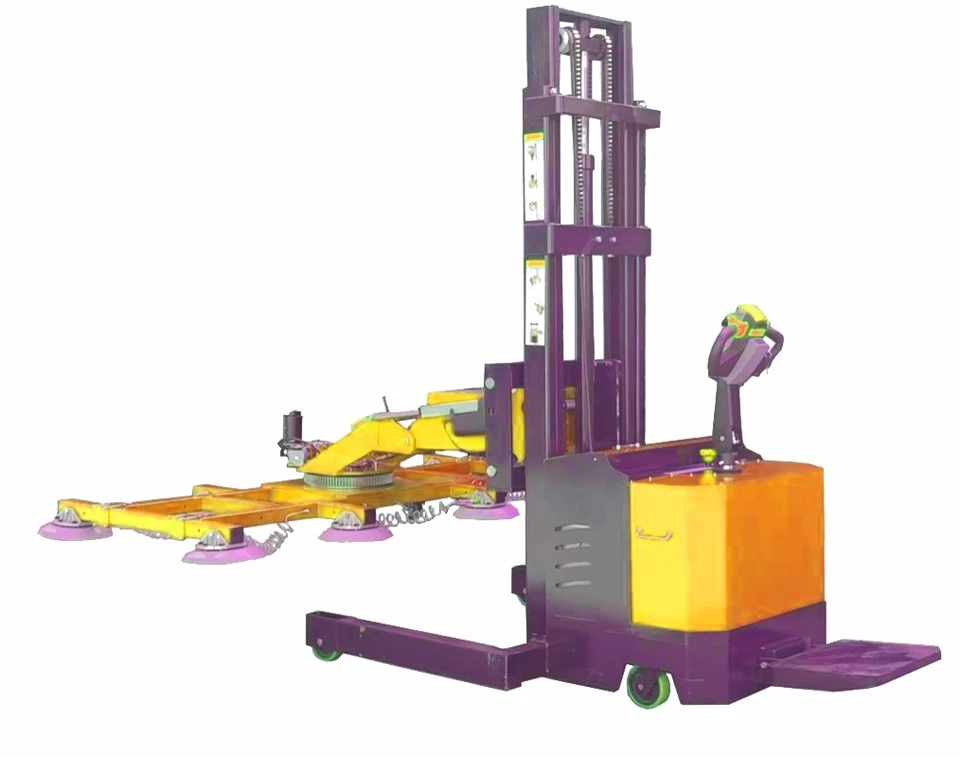

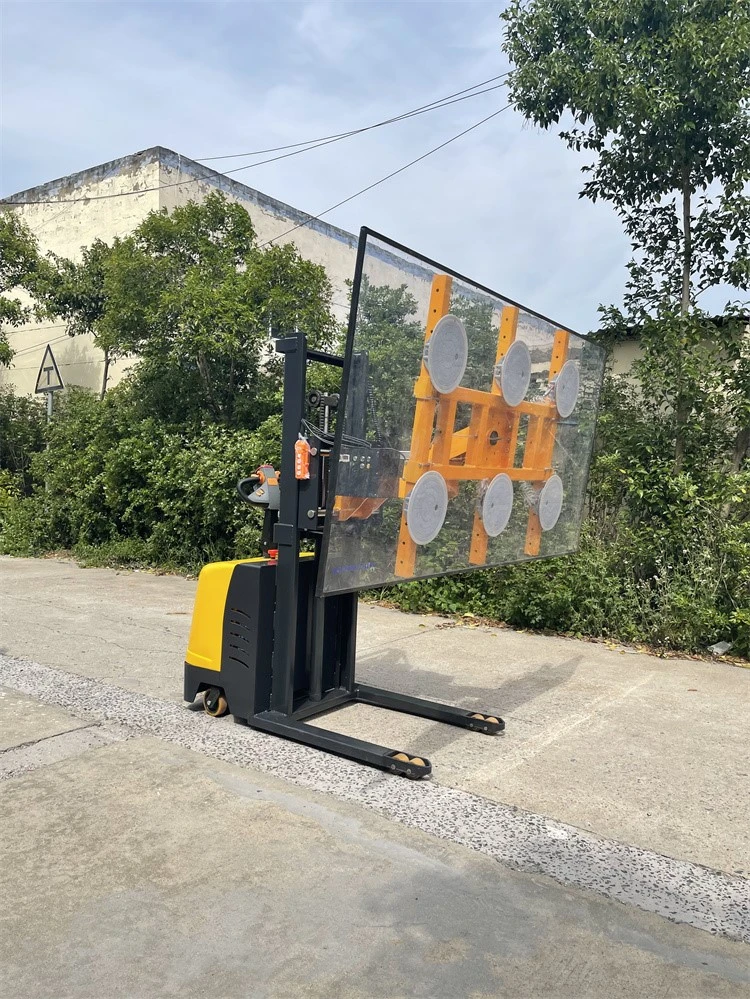

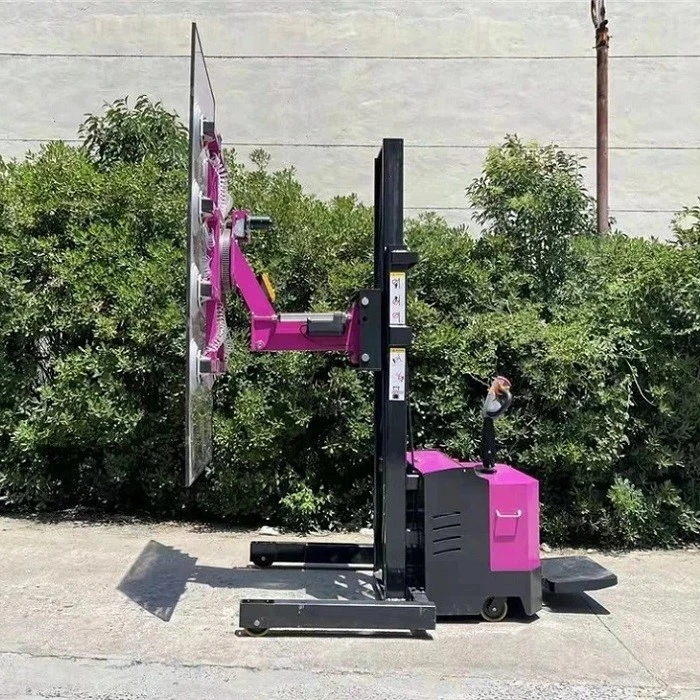

Fully-electric Sucker Trolley
This Fully-electric sucker Trolley is a senior machine with Front Axle driven, which have better road holding and friction force while driving with loads. Moreover, this model improved the controller from manual valves to remote controller, intuitive interface helped operation easier to find required function, and much helpful to the speed control as well.Various options customized for special request as well.
Standard Movements:
1. Moving control: powered moving, speed control by manual roller sensibly
2. Lifting control: with a hydraulic ram, use the push rod to control the hand-operated valve.
3. Extension control: with a hydraulic ram, use the push rod to control the hand-operated valve. maximum extension distance 750mm, maximum extension distance from the front wheel to the suction pads was 915mm (the ram in the horizontal position)
4. Tilting control: with a hydraulic ram, use the push rod to control the hand-operated valve, the maximum tilting degree near to 180 degree, which can tilt the frame down and up to horizontal position
5. Side-shift: with a hydraulic ram, use the push rod to control the hand-operated valve, 50mm for both sides, totally 100mm
6. Side turning control: By manual, with a spring lock for positioning, the maximum rotation was 180 degree, 90 degrees for both sides.(Automatic Side Turning for optional)
7. Rotation control: By manual, with a spring lock for positioning, the maximum rotation was 360 degree. Electrical rotation for optional.(Automatic Rotating for optional)

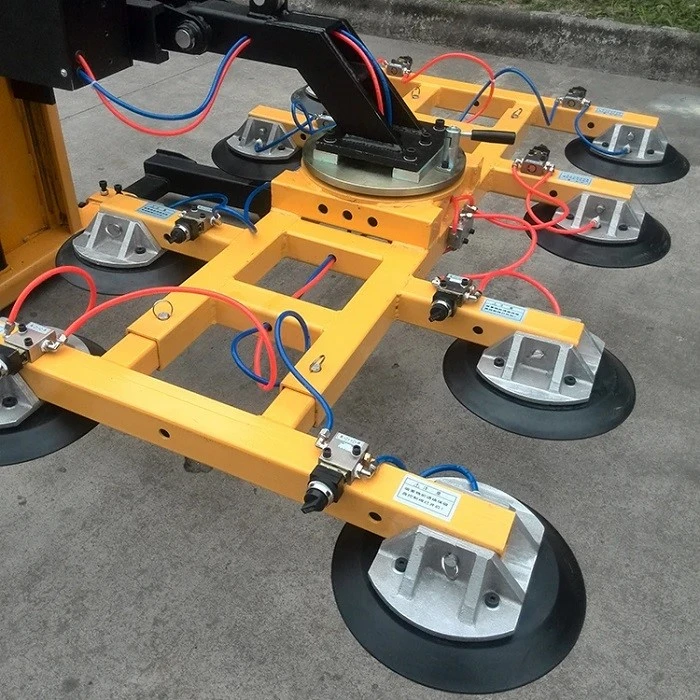

8. Suction and Releasing by wired remote control (Wireless Remote Control for optional)
|
Load Capacity |
kg |
300 |
400 |
500 |
600 |
800 |
|
Safe Load Capacity |
kg |
300 |
400 |
500 |
600 |
800 |
|
Lifting Height |
mm |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Overall Height |
mm |
2080 |
2080 |
2080 |
2080 |
2080 |
|
Overall Length |
mm |
2200 |
2200 |
2300 |
2300 |
2350 |
|
Overall Width |
mm |
850 |
850 |
850 |
850 |
850 |
|
Suction Frame Size |
mm |
1000*800 |
1000*800 |
1600*900 |
1600*900 |
1600*900 |
|
Pads Size |
mm |
Φ300 |
Φ300 |
Φ300 |
Φ300 |
Φ300 |
|
Pads Qty. |
pcs |
4 |
4 |
6 |
6 |
8 |
|
Rotating |
° |
Without/ Manual/ Electrical 360° |
||||
|
Tilting |
° |
Electrical 90° |
||||
|
Driving Speed (Load/Unload) |
km/h |
4/6 |
4/6 |
4/6 |
4/6 |
4/6 |
|
Lifting Speed (Load/Unload) |
mm/s |
80/130 |
80/130 |
80/130 |
80/130 |
80/130 |
|
Falling Speed (Load/Unload) |
mm/s |
110/90 |
110/90 |
110/90 |
110/90 |
110/90 |
|
Brake Type |
Electromagnetic Braking |
|||||
|
Driving Wheel |
mm |
Φ250*80 |
Φ250*80 |
Φ250*80 |
Φ250*80 |
Φ250*80 |
|
Driving Wheel Type |
Horizontal |
|||||
|
Front Wheel |
mm |
Φ80*70*2 |
Φ80*70*2 |
Φ80*70*2 |
Φ80*70*2 |
Φ80*70*2 |
|
Driving Motor/ Lifting Motor |
kw |
1.2 | 1.6 |
1.2 | 1.6 |
1.5 | 2.0 |
1.5 | 2.0 |
1.5 | 2.2 |
|
Battery |
V/Ah |
2*12/100 |
2*12/100 |
2*12/120 |
2*12/120 |
2*12/150 |
|
Control Type |
/ |
Stepless Speed Regulation |
||||
