Semi Electric Pallet Stacker
Strong door frame, lifting goods more safe, steel material, will not be deformed.
Fixed fork double roller design mobile flexibility and light, greater load force driving smoothly. The wheels are strong and wear-resistant with little noise

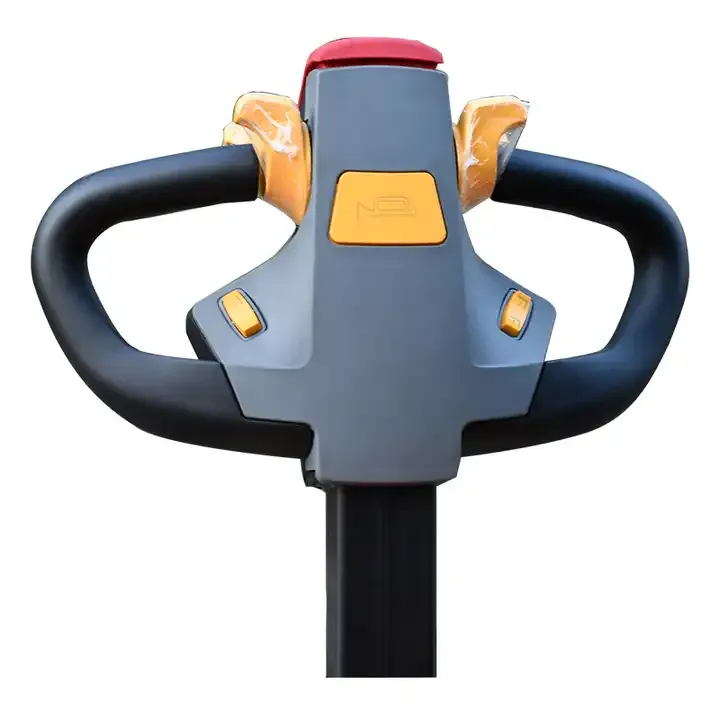

Intelligent handle
Ergonomic handle, forward and backward, with emergency stop switch, safer. At the same time can lift operation, safer.

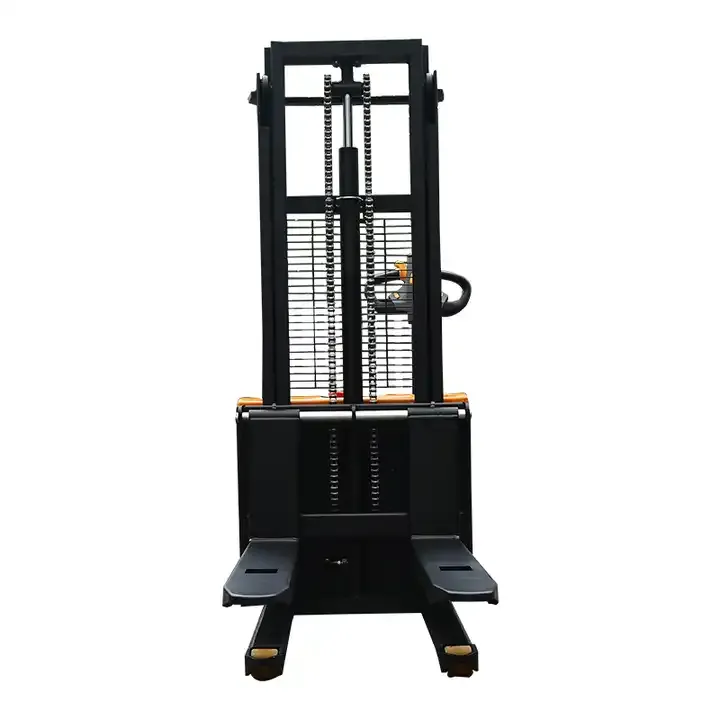

A sturdy door frame
Strong door frame, lifting goods more safe, steel material, will not be deformed.
Thickened fork
Fixed fork double roller design mobile flexibility and light, greater load force driving smoothly. The wheels are strong and wear-resistant with little noise
|

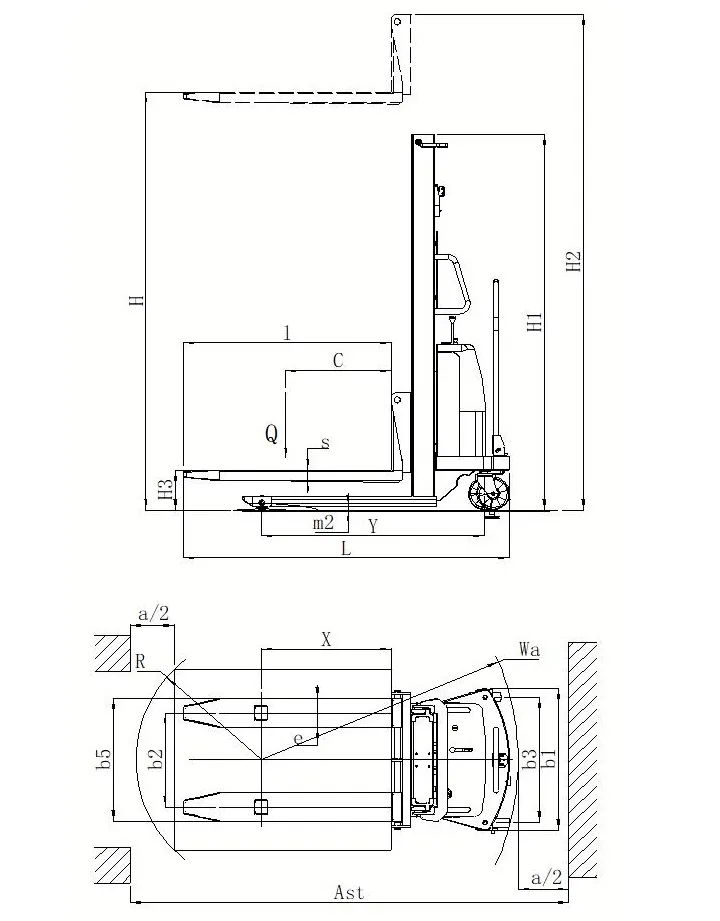

Characteristic |
1.1 |
Model |
CDD10A-30 |
CDD15A-25 |
CDD20A-16 |
|
|
1.2 |
Power |
Semi-electric |
Semi-electric |
Semi-electric |
||
|
1.3 |
Operation Type |
Walkie Type |
Walkie Type |
Walkie Type |
||
|
1.4 |
Load Capacity |
Q(Kg) |
1000 |
1500 |
2000 |
|
|
1.5 |
Load Center |
C(mm) |
500 |
500 |
500 |
|
|
1.6 |
Bearing Distance |
X(mm) |
716 |
716 |
716 |
|
|
1.7 |
Wheelbase |
Y(mm) |
1280 |
1280 |
1280 |
|
|
Weight |
2.1 |
Self-weight With Battery |
kg |
402 |
421 |
502 |
|
Wheels, chassis |
3.1 |
Wheel Type |
Nylon |
Nylon |
Nylon |
|
|
3.2 |
Front Wheel |
∅×w(mm) |
Φ80x70 |
Φ80x70 |
Φ80x70 |
|
|
3.3 |
Rear Wheel |
∅×w(mm) |
Φ180x50 |
Φ180x50 |
Φ180x50 |
|
|
3.4 |
Front Wheelbase |
b2(mm) |
520 |
520 |
520 |
|
|
3.5 |
Rear Wheelbase |
b3(mm) |
693 |
693 |
693 |
|
|
Dimensions |
4.1 |
Mast Lowered Height |
H1(mm) |
2080 |
1830 |
2080 |
|
4.2 |
Lift Height |
H(mm) |
3000 |
2500 |
1600 |
|
|
4.3 |
Height,mast entended |
H2(mm) |
3429 |
2929 |
2080 |
|
|
4.4 |
Fork Clearance when Mast Lowered |
H3(mm) |
85 |
85 |
85 |
|
|
4.5 |
Overall Length |
L(mm) |
1800 |
1800 |
1800 |
|
|
4.6 |
Overall Width |
b1(mm) |
775 |
775 |
775 |
|
|
4.7 |
Fork Size |
s/e/l(mm) |
65/160/1150 |
65/160/1150 |
65/190/1150 |
|
|
4.8 |
Fork Outer Width |
b5(mm) |
680 |
680 |
710 |
|
|
4.9 |
Min. Ground Clearance |
m2(mm) |
25 |
25 |
25 |
|
|
4.10 |
Aisle Width, pallet 1000×1200 (1200 placed across forks) |
Ast(mm) |
2267 |
2267 |
2267 |
|
|
4.11 |
Aisle Width, pallet 1000×1200 (1200 placed along forks) |
Ast(mm) |
2386 |
2386 |
2386 |
|
|
4.12 |
Min. Turning Radius |
Wa(mm) |
1405 |
1405 |
1405 |
|
|
Performance |
5.1 |
Lifting Speed Unladen/Laden) |
m/s |
0.112/0.092 |
0.112/0.090 |
0.112/0.085 |
|
5.2 |
Lower Speed (Unladen/Laden) |
m/s |
0.108/0.120 |
0.108/0.123 |
0.108/0.125 |
|
|
5.3 |
Service Brake |
Mechanical |
Mechanical |
Mechanical |
||
|
Motor, Charger |
6.1 |
Lift Motor |
kw |
1.6 |
1.6 |
2 |
|
6.2 |
Battery Type |
Lead Storage Battery |
Lead Storage Battery |
Lead Storage Battery |
||
|
6.3 |
Battery voltage/nominal capacity |
V/Ah |
12/120 |
12/120 |
12/120 |
|
|
6.4 |
Charger |
V/Ah |
12V/15A |
12V/15A |
12V/15A |
|
|
Other |
7.1 |
Type of drive control |
Mechanical |
Mechanical |
Mechanical |
|
|
7.2 |
Sound level at the driver's ear acc. to EN12053 |
dB(A) |
70 |
70 |
70 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
||||||
