Scissor Lift Table Truck

Scissor Lift Table Truck

Scissor lift table truck, also known as a hydraulic lift table or scissor lift table, is a mechanical device designed to vertically raise or lower heavy loads within a specific range. It consists of a platform (or table) that is attached to a set of scissor-like mechanisms, which are powered by hydraulic cylinders or electrically-driven systems.
Send Inquiry
Product Introduction

Model

Capacity (kg)

Lifitng height (mm)

Tbale size (mm)

Min height (mm)

Pump

Wheel size (mm)

PT150A

150

720

700*450*35

210

Single cylinder

φ100*32

PTS150A

150

1200

700*450*35

295

Single cylinder

φ100*32

PT300A

300

900

815*500*50

280

Single cylinder

φ125*50

PT500A

500

900

815*500*50

280

Single cylinder

φ125*50

PTS350A

350

1300

905*500*50

350

Single cylinder

φ125*50

PTS350A-1.5

350

1500

905*500*50

350

Single cylinder

φ125*50

PTS500

500

1500

905*500*50

360

Double cylinder

φ125*50

PT1000A

1000

1000

1000*500*55

415

Single cylinder

φ150*50

PTS1000

1000

1700

1200*600*80

500

Double cylinder

φ150*50



Product Description



Scissor lift table truck, also known as a hydraulic lift table or scissor lift table, is a mechanical device designed to vertically raise or lower heavy loads within a specific range. It consists of a platform (or table) that is attached to a set of scissor-like mechanisms, which are powered by hydraulic cylinders or electrically-driven systems. Lift tables are commonly used in industrial,commercial, and even residential settings to facilitate material handling, ergonomic positioning, and accessibility.



Advantages of Scissor lift table truck:



1. Increased Efficiency: Lift tables can quickly and smoothly raise or lower heavy loads, enhancing logistics and operational efficiency. They can complete substantial lifting tasks in a short time, reducing labor and time costs.
2. Reduced Labor Intensity: Using lift tables eliminates the need for manual lifting or lowering of heavy objects, reducing physical labor for workers and lowering the risk of injuries associated with manual handling.
3. Ergonomics: Lift tables can position platforms at suitable heights to accommodate various tasks and operator heights, providing ergonomic work environments and minimizing unnecessary bending and stretching.
4. Safety: Modern lift tables are equipped with various safety features such as anti-pinch mechanisms, emergency stop buttons,and safety skirts, reducing the risk of accidents and injuries. This makes handling heavy loads safer and more reliable.
5. Versatility: Lift tables are suitable for various applications, from industrial manufacturing to warehousing, logistics, retail, and more. They can handle items of different sizes and types, offering wide-ranging applicability.

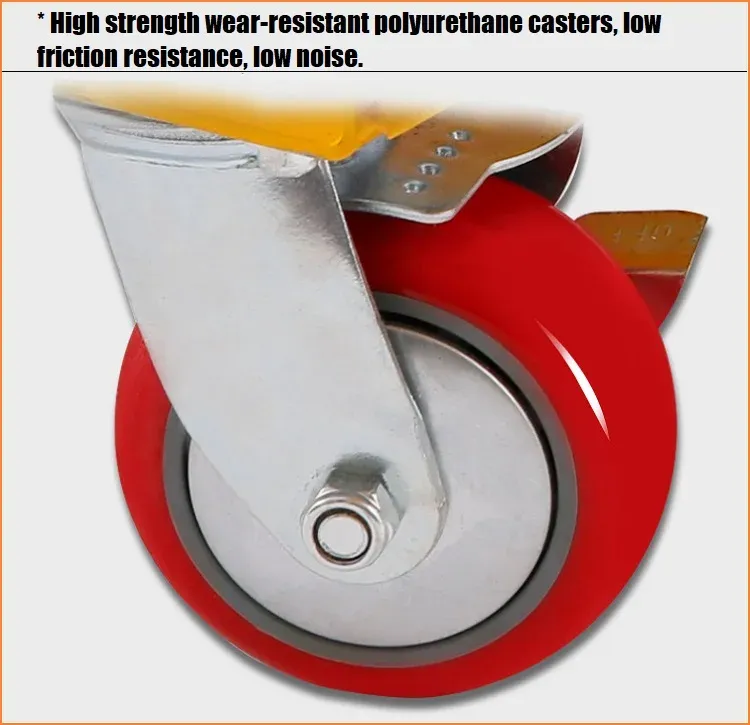

Scissor lift table truck 1

Scissor lift table truck 3

Scissor lift table truck 4

Scissor lift table truck 5

Scissor lift table truck 7

Scissor lift table truck 8



Hot Tags: scissor lift table truck, China scissor lift table truck manufacturers, suppliers, factory, Scissor Lift Table, vertical platform lift, Hand Push Scissor Lift Table, Semi automatic Scissor Lifting Platform, Rotaing Scissor Lift Table, Elevated Work Scissor Lifting Platform
