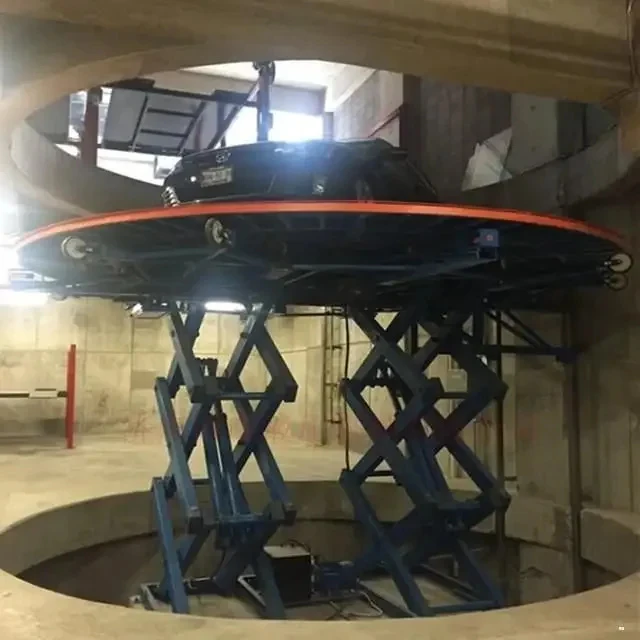

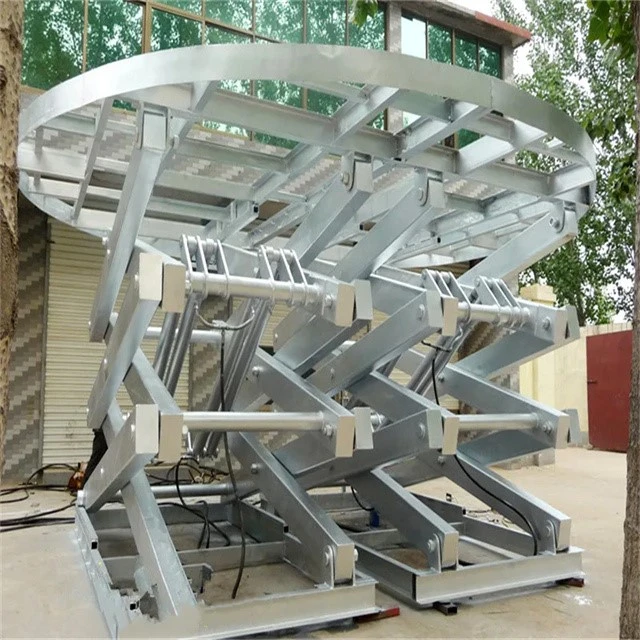

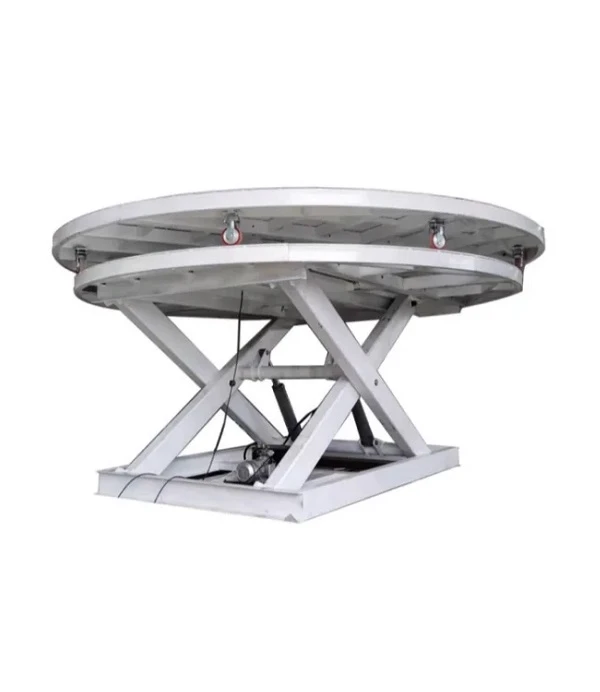

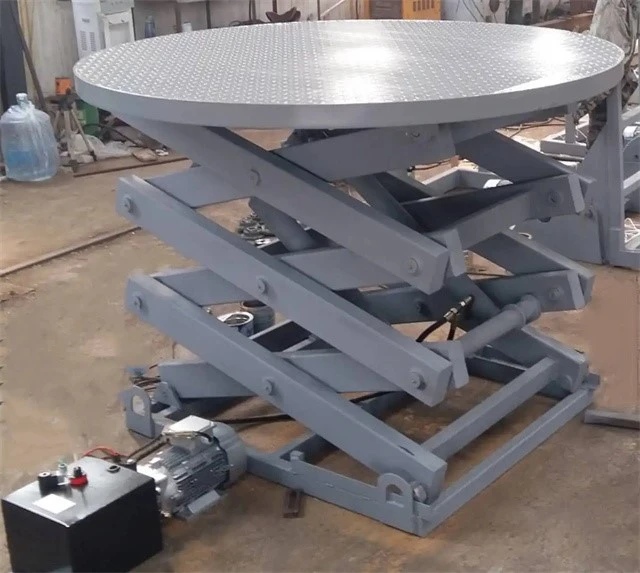

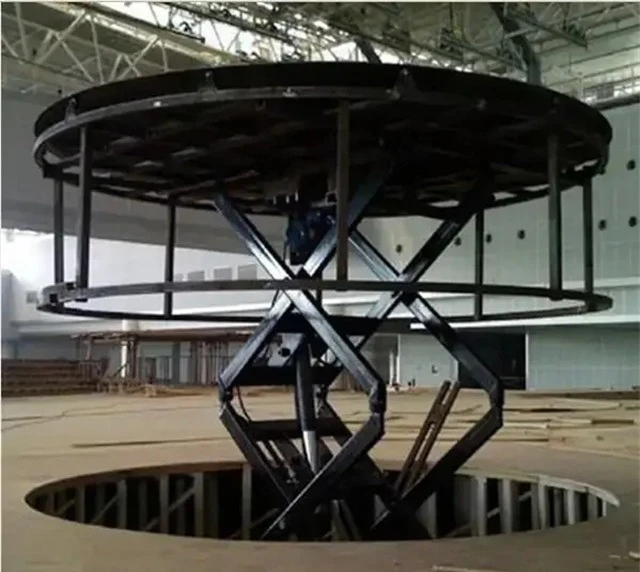

Rotaing Scissor Lift Table

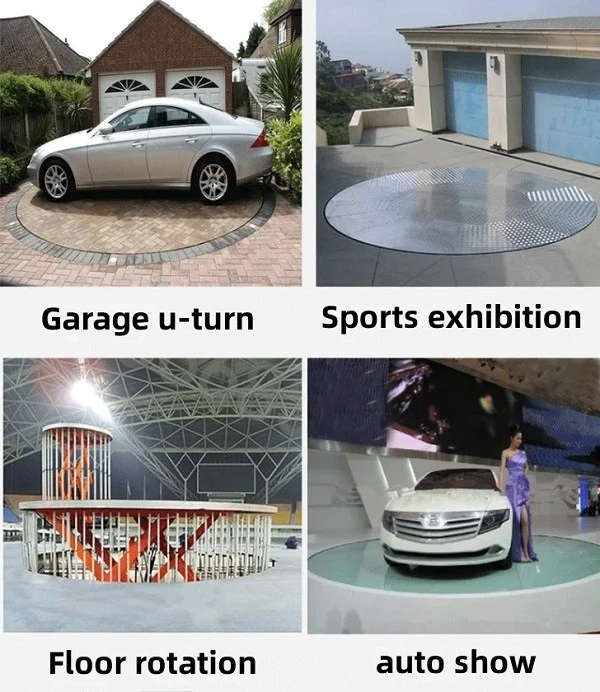

The Rotating Scissor Lift Table is the most commonly used product. It's mainly function is used for scenery and actors moved up and down when the scene transitions. In addition, in order to highlight the main actors, stage will rise slowly; dancers can produce the ups and downs on the stage. At the same time, the process of lifting stage movement also can increase the performance effect.
Manual rotation and powered lift lower turntable allows used to transfer products from work space to work space, while holding an ergonomically friendly position.
Top can be manually rotated 360 degree for improved packaging and handling capabilities.
Built-in fork pockets.
Operated with hand control or foot control.
Technical Parameters
|
Model |
Rated Loading (kg) |
Min Height H1 (mm) |
Max Height H2 (mm) |
Diameter L*w (mm) |
Lifting Time (s) |
Votage (v) |
Power (kw) |
|
Double Shear Lift Platform |
|||||||
|
SJG1-0.5 |
500 |
350 |
1550 |
1000 |
16 |
optional |
1.1 |
|
SJG1.7-1 |
1000 |
400 |
2100 |
1500 |
28 |
optional |
1.5 |
|
SJG1.6-2 |
2000 |
600 |
2200 |
1800 |
41 |
optional |
2.2 |
|
SJG1.5-5 |
5000 |
650 |
2150 |
1800 |
40 |
optional |
4 |
|
Duplex Lift Platform |
|||||||
|
SJG1-0.8 |
500 |
250 |
1050 |
1000 |
8 |
optional |
1.1 |
|
SJG1-1 |
1000 |
300 |
900 |
1500 |
15 |
optional |
1.5 |
|
SJG0.7-3 |
3000 |
400 |
1100 |
2000 |
25 |
optional |
3 |
|
SJG1.7-5 |
5000 |
800 |
2200 |
2000 |
60 |
optional |
4 |
Quality Guarantee
A. High manganese steel, strong structure.
B. Thickened hydraulic cylinder to prevent oil leakage, prolong life.
C. 24-hour online customer, one-year remote warranty.
Easy operation:
A. Local power supply is supported, and the voltage can be customized.
B. Wired remote control and wireless remote control can be optional.
C. Both point mode and automatic mode are equipped, which can be lifted by one key.
Custom Function:
It can be customized up and down + rotation function, positive rotation + reversal can be. The speed of rotation can be adjusted.
