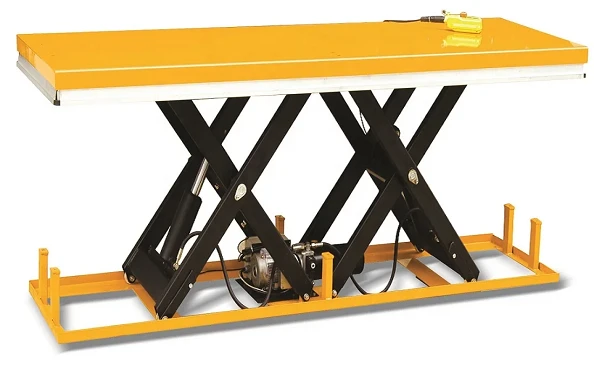

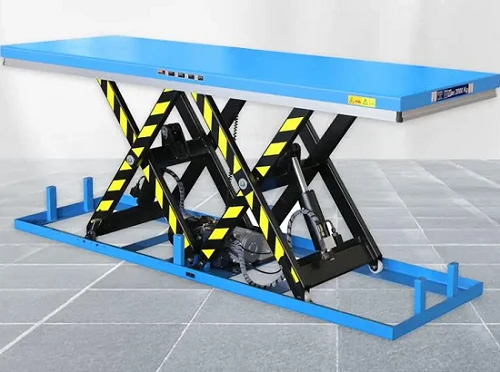

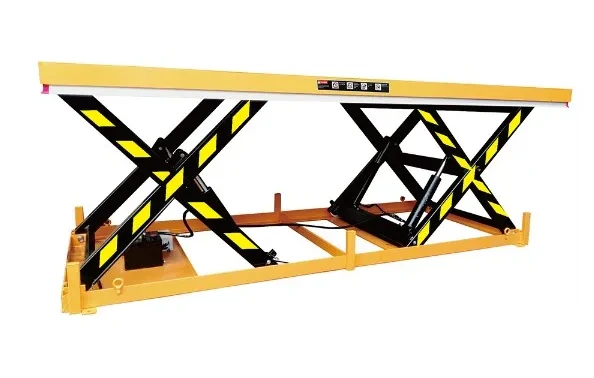

Double Scissor Lift

Large platform for special size materials.
Heavy duty design.
Meet EN1570 norm and ANSI/ASME safety standard.
These models can be used in above-floor or in-floor pit applications.

Send Inquiry

Product Introduction

Large platform for special size materials.

Heavy duty design.
Meet EN1570 norm and ANSI/ASME safety standard.

These models can be used in above-floor or in-floor pit applications.

Standard Safety Faetures

Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

Low-tention(24V)control box with up-down buttons.

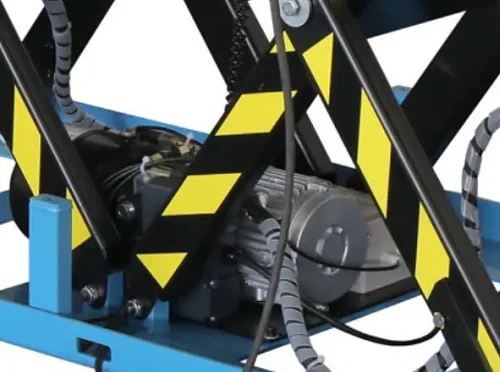

Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

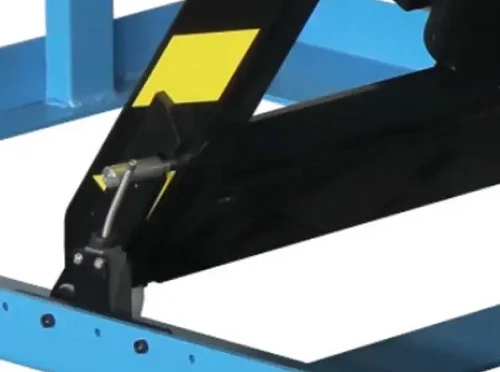

Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

Safety clearance between scissors to prevent trapping during operation.

Other Standard Features:

Self lubricating bushings on pivot points.

Removable lifting eye to facilitable handling and lift table installation.

Model	HW500L	HW501	HW502	HW2000D	HW4000D
rated capacity	500kg	500kg	500kg	2000kg	4000kg
table size	2000*800	1300*600	1300*800	2500*820	2500*850
base size	1615*680	1110*585	1210*585	2460*640	2450*785
table min-max height	200/1000	180/1000	180/1000	205/1000	230/1000
lifting time	16-26s	10-15s	10-15s	36-46s	26-36s
power supply	380v/50hz	380v/50Hz	380/50Hz	380v/50Hz	380v/50Hz
Net weight	193kg	121kg	131kg	265kg	360kg

What is the feature for the electric hydraulic doube scissor lift table?

1. loading capacity 2000kg, 4000kg, 8000kg support customized.

2. Anti pinch fork design: anti pinch fork design, with automatic lubrication bushing at pivot point.

3. Good quality hydraulic pump, stable and powerful when lifting goods, with safety bar device under the table, when the table is falling, it will stop falling when it meets obstacles.

4. The heavy-duty oil cylinder is equipped with a drainage device and a check valve, which can stop the lifting platform from descending when the oil pipe bursts.

● Equipped with safety devices to prevent the lifting platform from overloading;

● Equipped with a protection valve to prevent hydraulic oil pipe rupture;

● Equipped with emergency descending device for sudden power failure.
