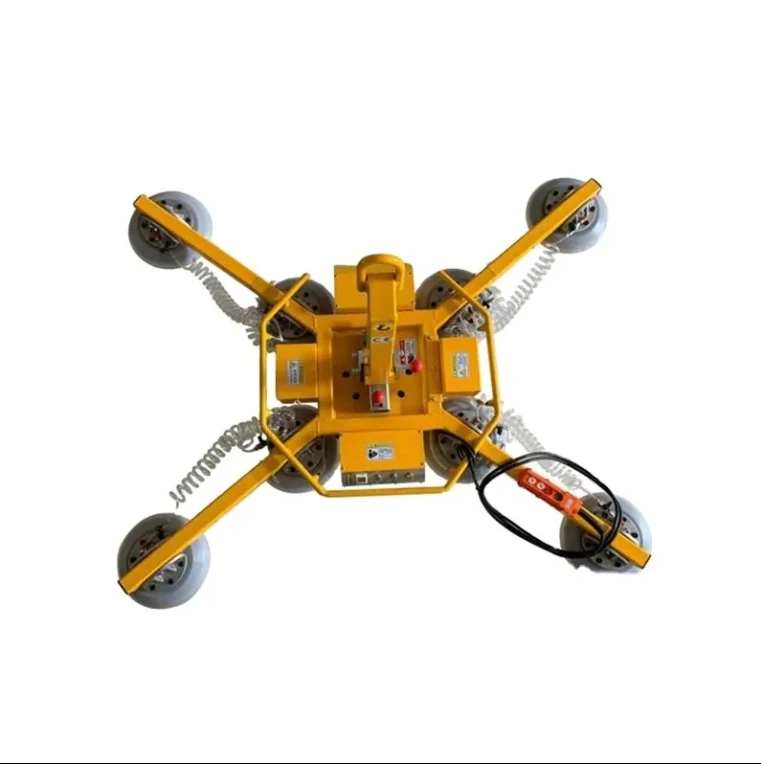

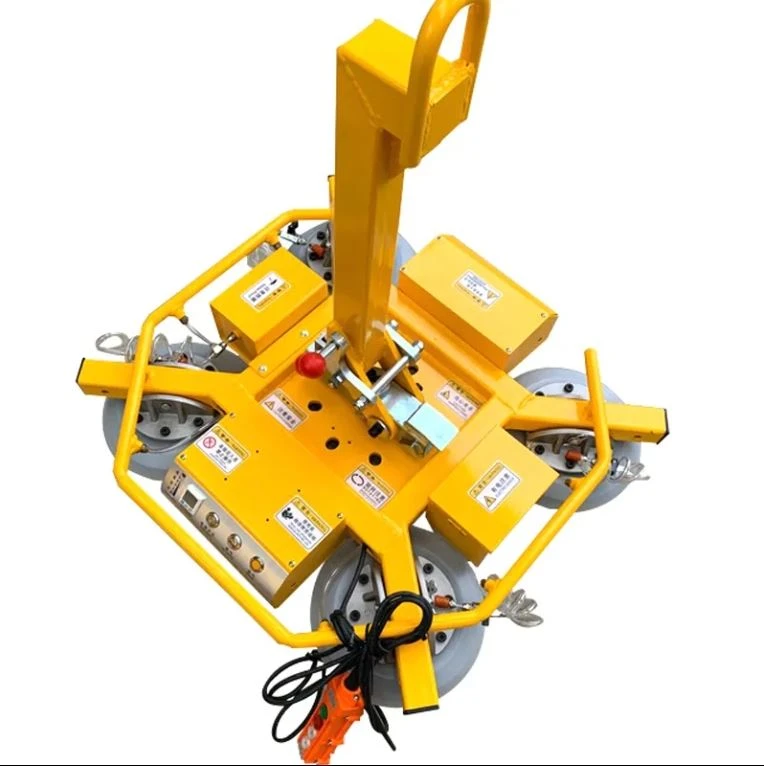

Glass Vacuum Lifter
Your Professional Glass Vacuum Lifter Supplier
Our goal is to become your true partner in the field of glass vacuum lifter China. Shandong Match Machinery Co., Ltd is specialized in Aerial Work Platform and Material handing equipment, we are one of the leading manufactures of lifting equipment in China. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Production equipment
Our company boasts state-of-the-art equipment, including imported fully automatic bending robots, laser cutting machines, CNC punching machines, large-scale automated surface coating lines, and final assembly lines, among other award-winning processing equipment.
Production and market
Our products are highly sought after and exported to countries and regions around the world, including Europe, America, and Asia.
Customized solutions
We fully understand our customers' needs and offer customized, OEM services to meet their individual needs.
Our services
Our team of experts will recommend the most suitable products according to customer needs and provide detailed consultation, we ensure timely delivery and provide installation guidance, and we provide long-term service support.
Advantages of Glass Vacuum Lifter
Speed in glass handling
Glass vacuum lifters significantly improve handling speed by reducing the time and effort required to lift and move large glass panels. This is achieved through the use of powerful suction cups or pads that create a secure grip on the glass, allowing for easy maneuverability.
Enhanced safety measures
Glass vacuum lifters also enhance safety by eliminating the risks associated with manual handling methods. These lifters provide a secure grip on the glass, reducing the likelihood of accidents and injuries.
Reduction in required labor
Vacuum glass lifters reduce the need for manual labor by allowing a single operator to handle heavy glass panels. This not only saves time but also reduces the overall labor costs associated with handling glass.
Overall cost-effectiveness
The use of vacuum glass lifters results in significant cost savings over time. By reducing labor costs and improving efficiency, businesses can complete projects more quickly and effectively, leading to increased productivity and profitability.
Specification of Glass Vacuum Lifter
|
Product Model |
BK-B400 |
BK-B600 |
BK-B800 |
BK-B1000 |
|
Rated Load (KG) |
400 |
600 |
800 |
1000 |
|
Suction Cup Diameter (MM) |
300 |
300 |
300 |
300 |
|
Number Of Suction Cups (PCS) |
4 |
6 |
8 |
10 |
|
Overall Dimensions (MM) |
800x850 |
1800x850 |
1800x1750 |
1800x2600 |
|
Reverse Scan |
90° manual |
90° manual |
90° manual |
90° manual |
|
Rotation Function |
360° manual |
360° manual |
360° manual |
360° manual |
|
Working Power Supply (V) |
DC12V |
DC12V |
DC12V |
DC12V |
Sealed cover for components protection, safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job.
Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size). Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric.
With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value. Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently, the pressure-keepping function can extend the handling time and make the use safer.
Types of Glass Vacuum Lifter
Manual vacuum glass lifters
These lifters are operated manually, with the operator using a hand pump to create the necessary vacuum. Manual vacuum glass lifters are lightweight and portable, making them suitable for smaller glass panes or projects that require frequent movement.
Powered vacuum glass lifters
Powered lifters use an electric or pneumatic pump to create and maintain the vacuum. These lifters are more suitable for larger glass panes or projects that require extended periods of lifting and holding.
Vacuum glass robots
Vacuum glass robots are automated systems that can handle multiple glass panes simultaneously. These robots are often used in large-scale projects that require high precision and efficiency.
Specialized vacuum glass lifters
There are also specialized vacuum glass lifters designed for specific applications, such as curved glass or irregularly shaped surfaces. These lifters are customized to ensure a secure grip and safe handling of the unique glass shapes.
Application of Glass Vacuum Lifter
Architectural glass installation: Vacuum glass lifters are extensively used in the installation of glass windows, curtain walls, and glass facades in buildings. They provide a secure and efficient method of handling large glass panes and ensure precise placement during installation.
Glass manufacturing: Vacuum glass lifters play a crucial role in the manufacturing process of glass products. They are used to lift and transport glass sheets, enabling seamless production and minimizing the risk of breakage or damage.
Renovation and restoration projects: When restoring or renovating historical buildings, vacuum glass lifters are used to handle delicate and valuable glass pieces. They provide a safe and reliable method of lifting and positioning antique glass windows and other decorative glass elements.
Automotive industry: Vacuum glass lifters are employed in the automotive industry for handling windshields and other glass components during assembly or repair processes. They ensure precise placement and reduce the risk of damage to the glass.
Retail and commercial spaces: In retail and commercial spaces, vacuum glass lifters are used for the installation of glass partitions, display cases, and other glass features. They allow for efficient and safe handling of large glass panels, contributing to the overall aesthetic appeal of the space.
Packing and Shipping of Glass Vacuum Lifter
|
Packing |
Tray |
|
Shipping |
Shipped by road, sea, rail |
