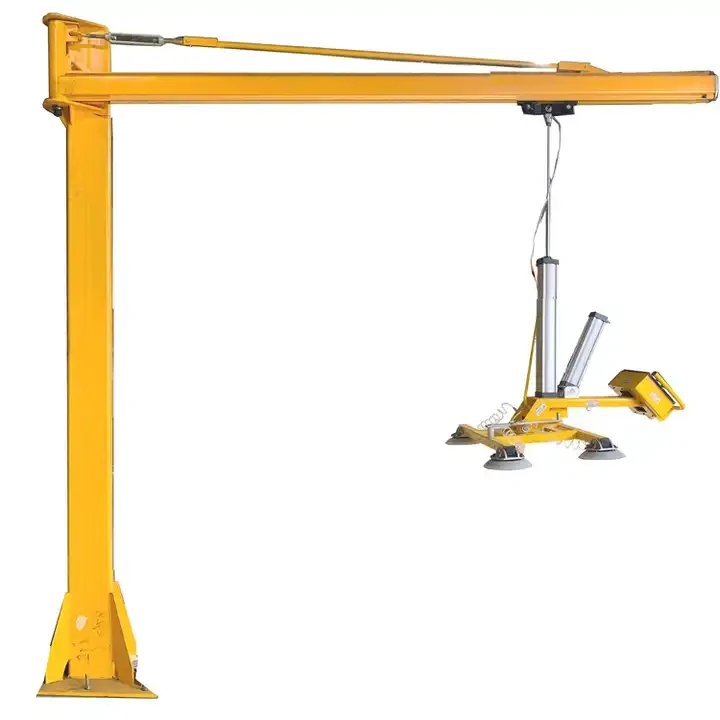

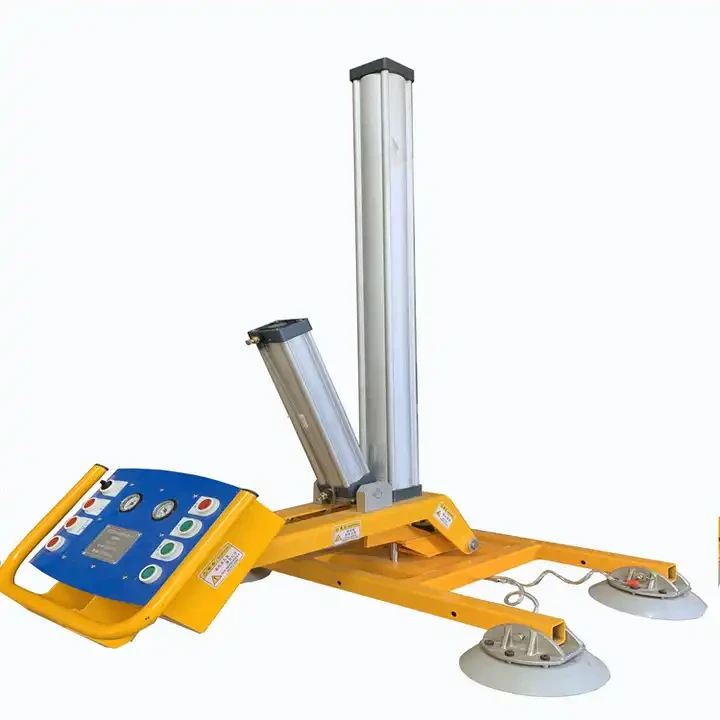

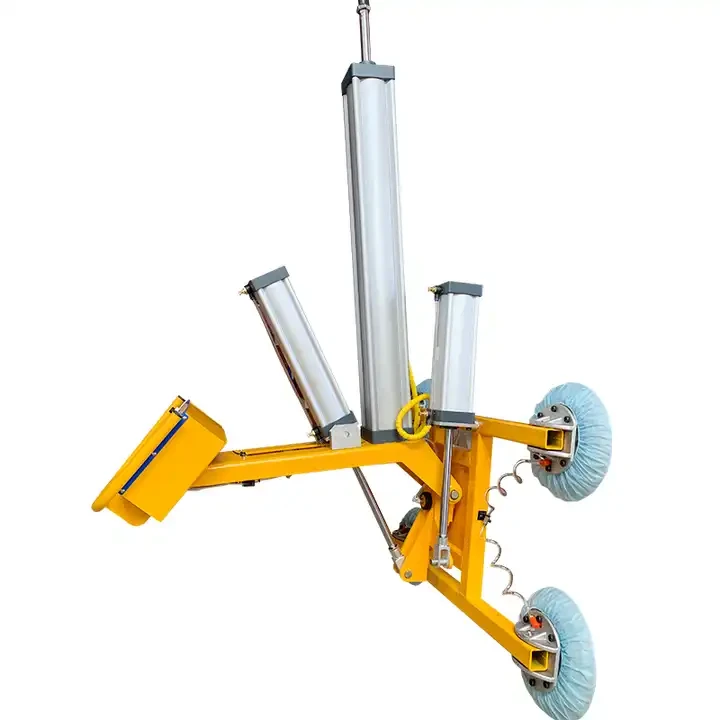

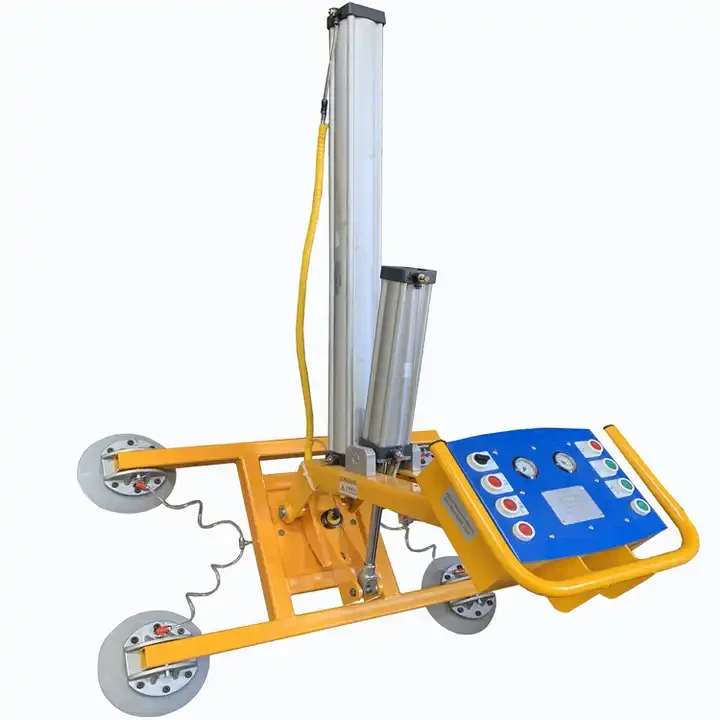

Pneumatic Sucker

High stability and easy operation. Adopting the principle of pneumatic power, only need to operate the control button to finish the handling process of the work piece.
High efficiency. The operator can control the movement of the workpiece with a small force, and can stop at any position, the handling process is easy, fast and coherent.

Send Inquiry

Product Introduction

1. High stability and easy operation. Adopting the principle of pneumatic power, only need to operate the control button to finish the handling process of the work piece.

2. High efficiency. The operator can control the movement of the workpiece with a small force, and can stop at any position, the handling process is easy, fast and coherent.

3. High safety, it equipped with air cut protection and automatic braking device. When the power supply suddenly disappears, the glass will keep holding in the original position for a a period time without falling down.

4. Main components all adopt international famous brand, quality assurance.

5. Vacuum Generator imported from Japan SMC, with the advantages of large flow, small size, convenient maintenance and long service time.

6. Cylinder imported from Taiwan AirTAC, fast action, energy saving,environmental protection and long service time.

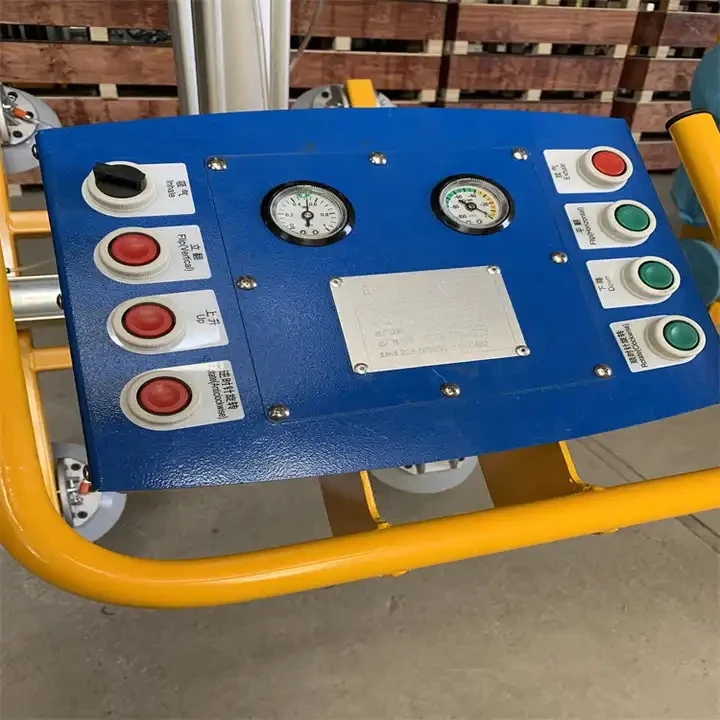

7. Vacuum pressure gauge imported from Japan SMC, with precise pointer and sensitive response.

8. One-way valve imported from Japan SMC, if power failure, automatically shuff off the vacuum pump and provide enough pressure holding time to ensure that the work piece won't suddenly fall.

9. Adopt high strength Q345B steel, high strength and elasticity, the machine won't out of shape easily.

10. Imported silicone material suction cups, three-layer sealing ring with better sealing.

pneumatic sucker	Lifting cylinder	rotating cylinder	turning cylinder	Sucker size	Number of sucker	Maximum size of the sucker
300kg	SU100*1000	SU80*400	SU80*300	250	4	1150*780
400kg	SU125*1000	SU100*400	SU100*300	300	4	1200*820
500kg	160*1000	SU125*400	SU125*350	300	6	1200*820
