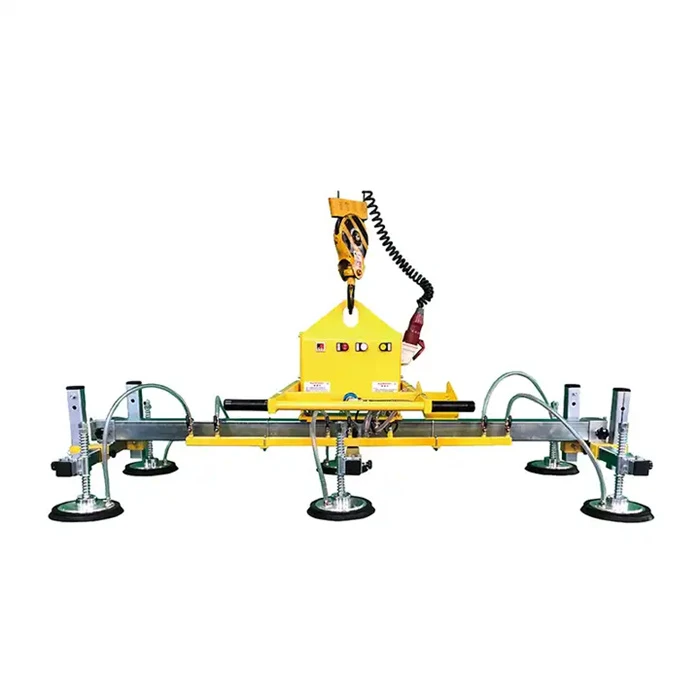

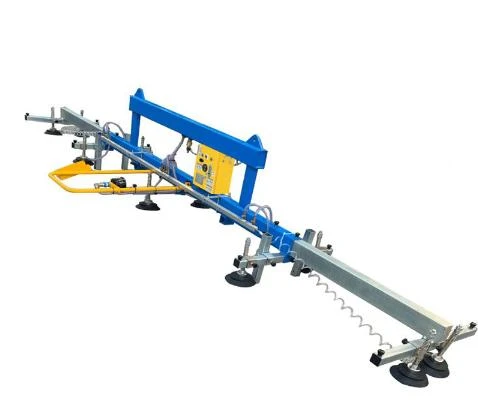

Metal Sheet Vacuum Lifter

1. Energy saving and environmentally, no pollutant emission. Easy to operate, with high working efficiency

2. Adjustable pads position and each pad with a manual ball valve to control opening and closing, easy to handle different sizes plates

3. Sucker rod is equipped with double springs up and down. When the plate is uneven, the spring plays a cushioning role to make the sucker's force uniform, so as to ensure the safety and reliability of the suction crane

4. The ends of main beam are sealed by plate welding, used as vacuum gas storage tank. When the equipment is suddenly shit down, it is guaranteed that the plate can be reliably adsorbed for at least 20 minutes without causing safety accidents

5. Original Panasonic vacuum pressure switch, and assemble high sensitivity buzzer alarm unit. If don't reach the set pressure, then light up the red light to prompt operator to dispose in time

(1) Power supply: 380VAC±15%, Frequency: 50Hz ±1Hz, 3-phase system

(2) Operation manner: Horizontal handling, operate by manual for vacuum suction and release.

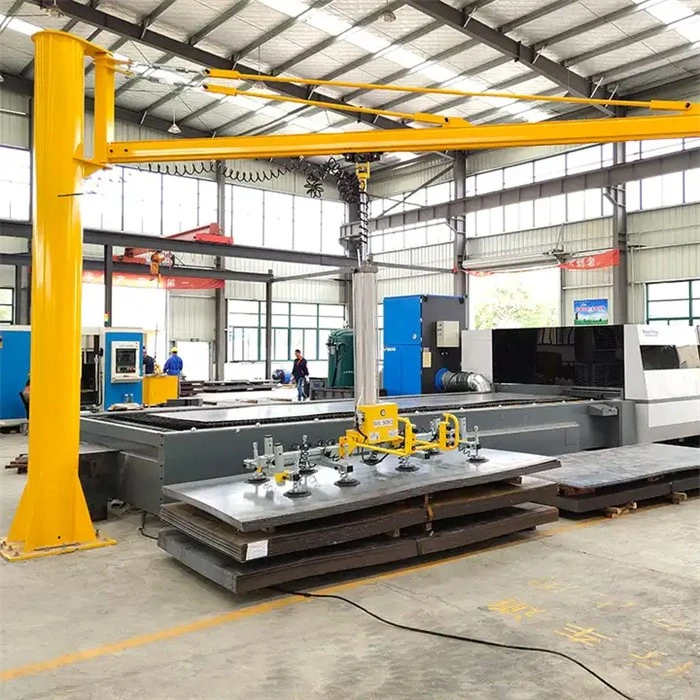

(3) Lifting equipment: Driving crane/ Jib arm with crane (should be provided by the client)

(4) Jib crane Max. carrying capacity above 500kg

1, Vacuum pump:

To choose Germany brand of Becker, Oilless, air cooling, rotary vanes vacuum pump, bleed air rate 4m³/h, and the max. Vacuum degree up to 85%;to save energy, small and light, maintenance-free, etc

Oil free air cooling type rotary vane vacuum pump, connected to 220V,, Three-phase power can produce vacuum, As a core part of vacuum system, The highest vacuum degree 85%;

2, Vacuum pad:

To suction the work piece surface, Rubber in contact with the workpiece, ensure that won't cause damage to the workpiece surface.

3, Vacuum filter:

To eliminate the dust and particles in the air flow, ensure the lifetime of the vacuum pump;

4, Vacuum gauge:

To show the vacuum level to the operator, Provide security;

5, Vacuum pressure switch:

Pump-film type, When insufficient vacuum pressure, To give electrical signal to alarm system.

6, Manual slide valve:

To switch off the access of vacuum pump and suction pads between the air flow, Safety locks, prevent accidental operation.

7, Vacuum non-return valve:

When the system power failure occurs, automatically shut off the vacuum pump and air channel, Lock the vacuum energy of vacuum tank. Provide enough pressure holding time, ensure the workpiece will not falling in suddenly.

8, Manual Ball Valve:

To manually open or close vacuum pump and suction pads pathway, convenient maintenance.

9, Alarm indicator lamp:

When the suction force of a single set of suction pads is insufficient, The corresponding indicator light alarm.
