Aluminum Alloy Lift Platform
Your Professional Aluminum Alloy Lift Platform Supplier
Our goal is to become your true partner in the field of aluminum alloy lift platform China. Shandong Match Machinery Co., Ltd is specialized in Aerial Work Platform and Material handing equipment, we are one of the leading manufactures of lifting equipment in China. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Production equipment
Our company boasts state-of-the-art equipment, including imported fully automatic bending robots, laser cutting machines, CNC punching machines, large-scale automated surface coating lines, and final assembly lines, among other award-winning processing equipment.
Production and market
Our products are highly sought after and exported to countries and regions around the world, including Europe, America, and Asia.
Customized solutions
We fully understand our customers' needs and offer customized, OEM services to meet their individual needs.
Our services
Our team of experts will recommend the most suitable products according to customer needs and provide detailed consultation, we ensure timely delivery and provide installation guidance, and we provide long-term service support.
Advantages of Aluminum Alloy Lift Platform
Strong corrosion resistance
Aluminum alloy has excellent rust and corrosion resistance, so that the equipment can be used for a long time outdoors and in humid environments, reducing maintenance costs.
High stability
The aluminum alloy mast lift adopts a multi-stage mast structure, which is stable and compact. Even at high altitudes, the equipment can still maintain a high stability to ensure the safety of operators.
Easy to transport and store
Due to the light weight and compact structure of the equipment, it occupies less space, is convenient for storage and transportation, and is suitable for frequent use between multiple locations.
Strong versatility
The equipment can be equipped with a variety of accessories to meet the needs of different working conditions, such as electric and manual operation modes, which improves its application flexibility.
Specification of Aluminum Alloy Lift Platform
|
Model |
GTWY2-6 |
GTWY2-8 |
GTWY2-10 |
GTWY2-12 |
GTWY2-14 |
GTWY2-16 |
|
Double mast ALUMINUM ALLOY LIFT PLATFORM |
||||||
|
Max. Working Height |
8m |
10m |
12.4m |
14m |
16m |
18m |
|
Max. Platform Height |
6m |
8m |
10.4m |
12m |
14m |
16m |
|
Loading Capacity |
250kg |
250kg |
250kg |
200kg |
200kg |
150kg |
|
Occupants |
2 |
2 |
2 |
2 |
2 |
1 |
|
Platform Dimension |
1.45m x 0.7m |
1.45m x 0.7m |
1.45m x 0.7m |
1.45m x 0.7m |
1.8m x 0.7m |
1.8m x 0.7m |
|
Overall Dimension |
||||||
|
Overall Height |
1.99m |
1.99m |
1.99m |
1.99m |
2.68m |
2.68m |
|
Overall Width |
0.81m |
0.81m |
0.81m |
0.81m |
0.81m |
0.81m |
|
Overall Length |
1.45m |
1.45m |
1.45m |
1.45m |
1.88m |
1.88m |
|
Outrigger coverage |
2.45m x 1.75m |
2.45m x 1.75m |
2.45m x 2.1m |
2.45m x 2.1m |
2.7m x2.8m |
2.7m x2.8m |
|
Weight |
||||||
|
AC |
610kg |
645kg |
715kg |
750kg |
892kg |
996kg |
|
DC |
660kg |
695kg |
765kg |
800kg |
942kg |
1046kg |
|
Power |
||||||
|
AC |
380V/220V/110V |
380V/220V/110V |
380V/220V/110V |
380V/220V/110V |
380V/220V/110V |
380V/220V/110V |
|
AC Motor |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
|
DC |
2x12V |
2x12V |
2x12V |
2x12V |
2x12V |
2x12V |
|
DC motor |
2.2KW |
2.2KW |
2.2KW |
2.2KW |
2.2KW |
2.2KW |
|
Charger |
12V/15A |
12V/15A |
12V/15A |
12V/15A |
12V/15A |
12V/15A |
Anti-fall safety device for aluminum alloy lifting platform: The anti-fall safety device is an important part of the construction elevator. It is necessary to rely on it to eliminate the occurrence of cage falling accidents and ensure the safety of the occupants. Therefore, the factory test of the anti-fall safety device is very strict.
Safety switch of aerial work platform: The safety switches of the elevator are designed according to safety requirements, including fence door limit, hanging cage door limit, top door limit, limit switch, upper and lower limit switch, and anti-weight rope breaking protection switch.
Wear and replacement of gears and racks: The use of aluminum alloy elevators on the construction site, the operating environment is harsh, the cement, mortar, and dust cannot be eliminated and cleaned, and the gears and racks grind each other, and the teeth are sharpened and still in use, which should be paid attention to.
Types of Aluminum Alloy Lift Platform

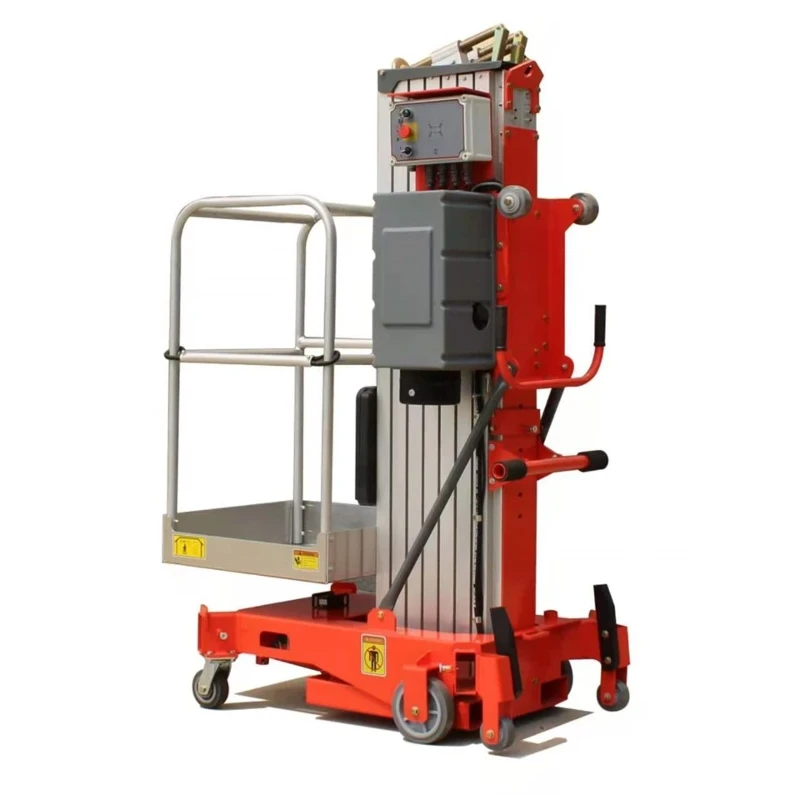

Single-post aluminum alloy lift
Single-post aluminum alloy lift is the most common type in reality and usually can elevate one worker to 6m, 8m or 10m in aerial jobs.

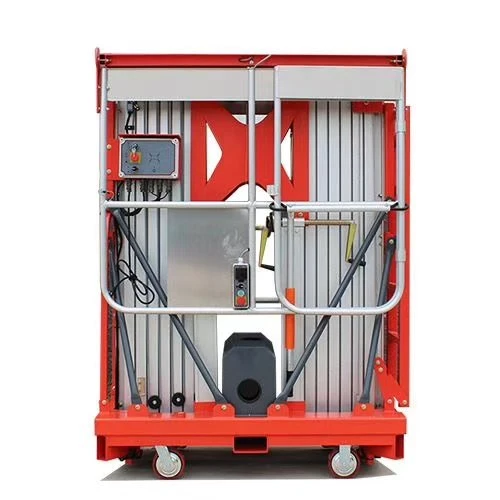

Double-post aluminum alloy lift
Double-post aluminum alloy lift is another common vertical lift table whose lifting height can be 6m, 8m, and 12m. Estimated lifting height can vary from 6m to 14m.
Comparing with single-post aluminum alloy lift
Three-post aluminum alloy lift and multiple-post aluminum alloy lift. Although three-post aluminum alloy lift and multiple-post aluminum alloy lift are greater in size, they do have special advantages in large-scale aerial jobs.
Application of Aluminum Alloy Lift Platform
Glass curtain wall cleaning: When cleaning the glass curtain wall, workers first pushed the lift platform to the designated work area. Due to the platform’s lightweight design, two workers could easily position the equipment.
Facade equipment maintenance: In addition to routine cleaning, the platform was also used for inspecting and maintaining the facade’s LED display screens and decorative light strips.
Factories and warehouses: In high-altitude installation, maintenance of lamps, pipes or inspection of ceilings, aluminum alloy mast lifts provide a safe and reliable high-altitude platform, suitable for narrow passages or places that require frequent movement.
Commercial places and shopping centers: Used for billboard installation, lamp maintenance, window cleaning, etc., aluminum alloy mast lifts are very suitable for use in places with high traffic due to their convenience and easy operation.
Hotels and exhibition centers: Due to their light weight, easy transportation and layout, hotels and exhibition centers often use aluminum alloy mast lifts for decoration, lighting installation, sign installation and other operations.
Construction sites: Suitable for interior decoration and maintenance in early construction, especially in small working spaces, lightweight aluminum alloy lifts can operate flexibly.
Power and communication maintenance: When repairing outdoor power lines and communication equipment, corrosion-resistant aluminum alloy lifts are a safe and efficient choice.
Packing and Shipping of Aluminum Alloy Lift Platform
|
Packing |
Tray |
|
Shipping |
Shipped by road, sea, rail |
