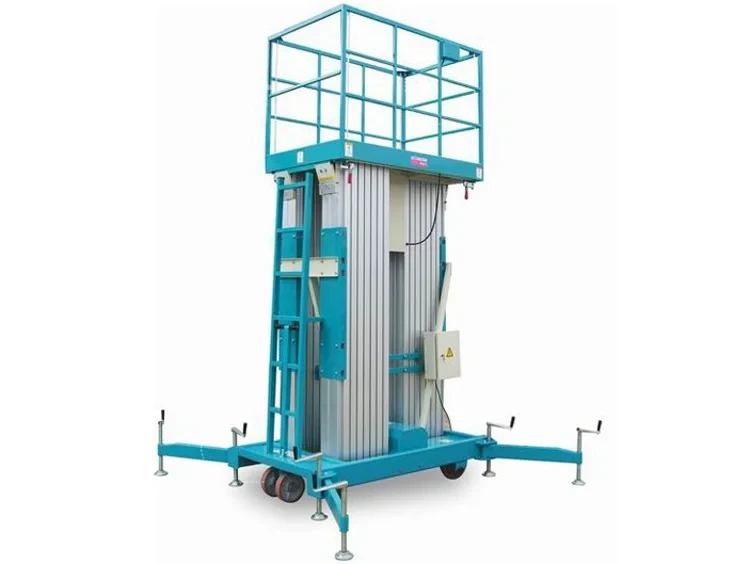

Three Mast Aluminum Alloy Lift Platform

Send Inquiry

Product Introduction

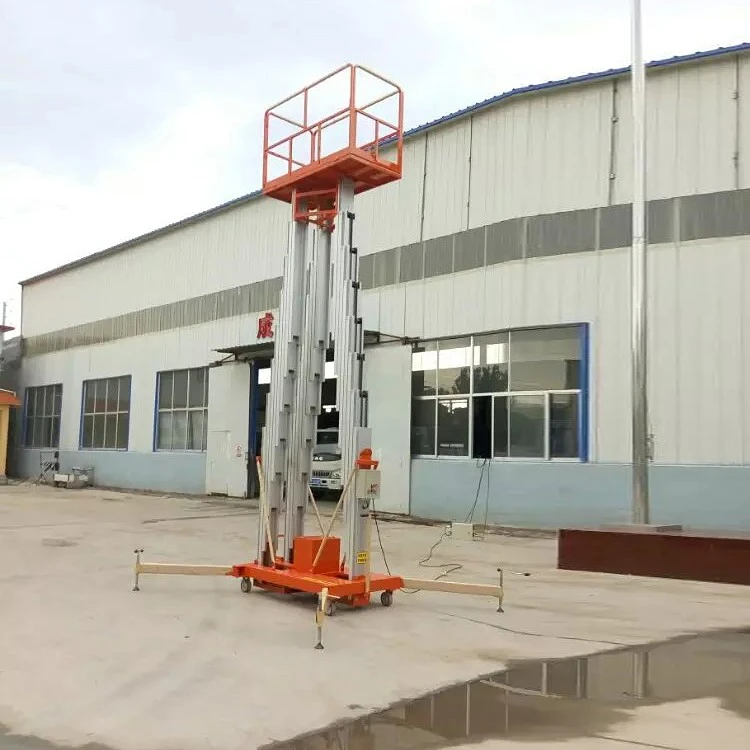

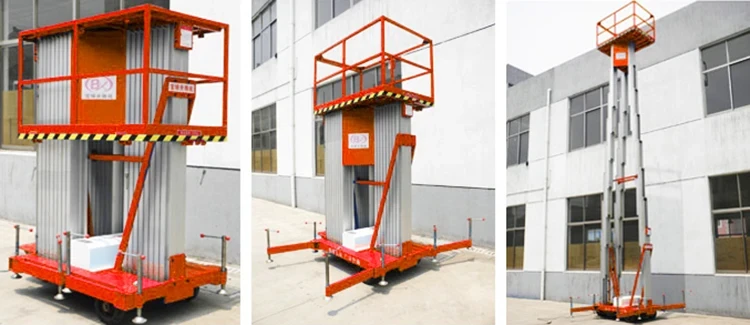

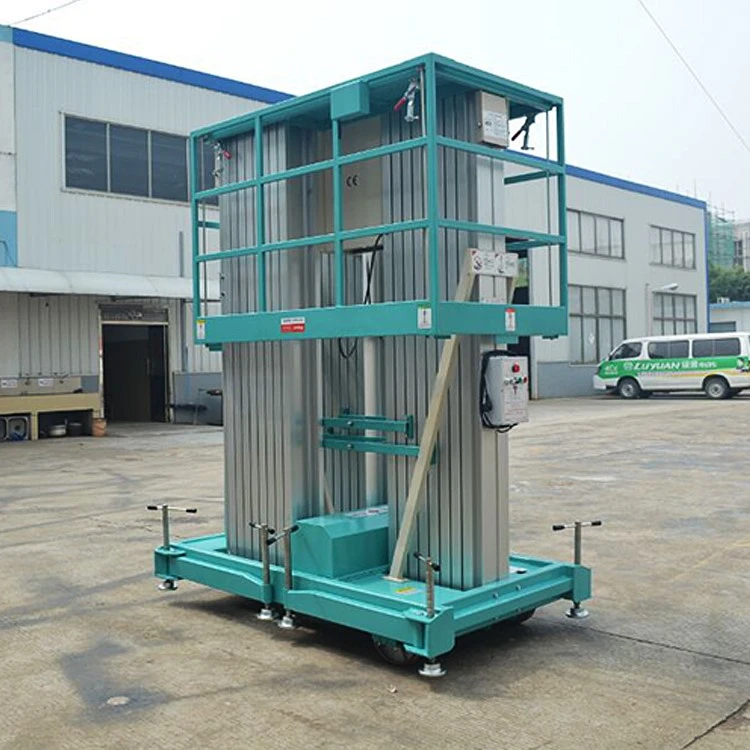

Gtwy Series Three Masts Aluminum Alloy Lift Platform

This type of aluminum aerial platform is three mast type. For such type of lift, the lifting height can be made from 12m to 16m,and the loading capacity can be 250 kg. This type is more stable than the two mast lift but price relatively a little higher.
Aluminum lift platform adopts high strength aluminum alloy, with light weight ,pretty appearance and compact body. it has safety steel wire and anti-fall device. It can reach up to 24m and load 2 max person working on the platform. The lift can pass through the low door and elevator, suit for small space. popular used for workshop, hotel, restaurant ,lobby, railway station, airport,cinema, exhibition hall, shopping mall and other place need to installation and maintenance.

Aluminum Alloy Lift Platform

1. This series of products subject structure using high-strength aluminum alloy material.

2. The equipment takes up small spaces, light-weight, mobile flexible, looks beautiful.

3. Electrical control or manual pump control when the electricity is not available.

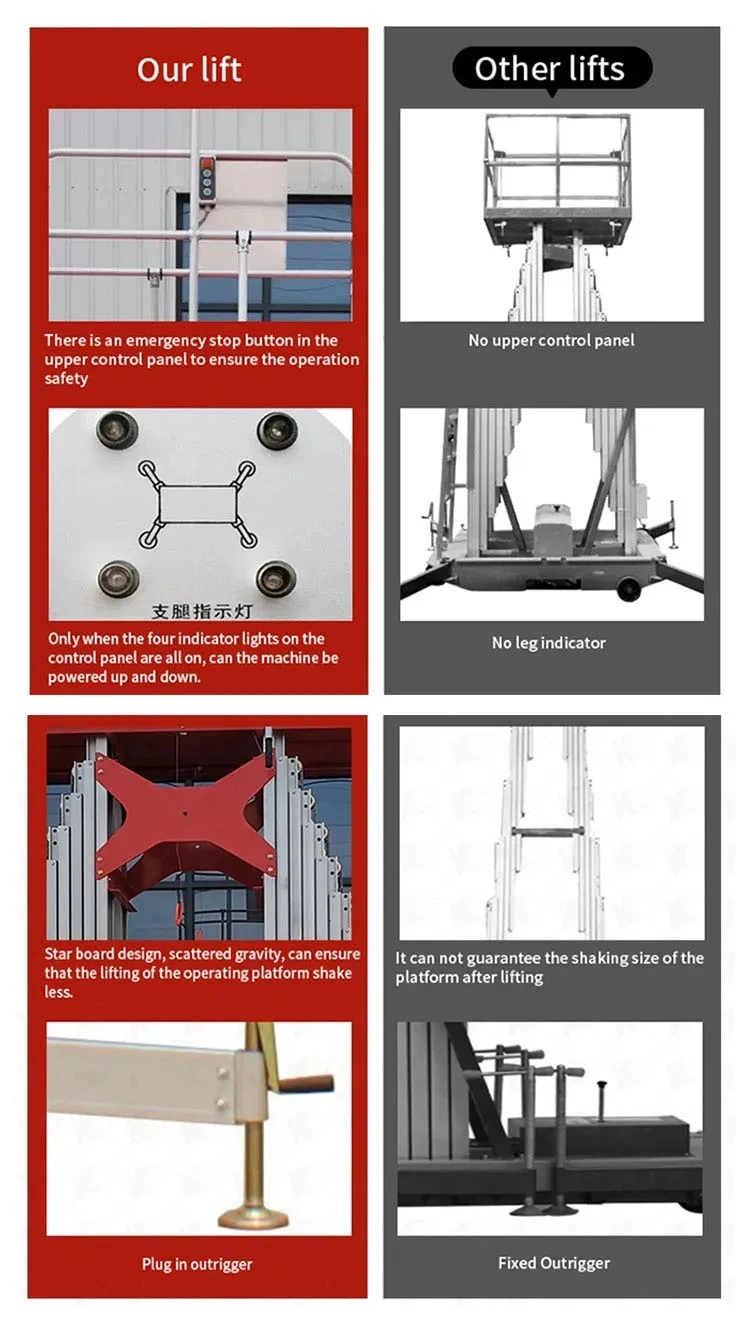

4. Two control panel: one is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.

5. Easily pushed around to the designated sites

6. Low energy consumption, no pollution, do no damage to the grounds

7. The power sources can be 110V 220V 380V AC power, DC power, depending on the local power sources

Product Feature

1. High-strength aluminum alloy, reduce deflection and swing when it lift.
2. Use imported hydraulic valve and the European CE safety certification motor;
3. Using electrical box unit with anti-leakage and overload protection;
4. Using solid state relays. No contact, no spark, vibration;
5. The control panel both on the platform and ground
6. With Polyurethane solid wheel
7. AC 220V (standard configuration), AC 380V power supply, DC power supply, manual pump
8. Small size, suitable for small space work, mobile and flexible

Model Number		GTWY12-320	GTWY14-320	GTWY16-320
Loading Capacity	kg	250	250	250
Max Platform Height	m	12	14	16
Max Working Height	m	13.7	15.7	17.7
Platform Size	mm	1560×800	1560×850	1560×850
Power Supply	V/Hz	AC220/50	AC220/50	AC220/50
Covering Size	mm	2450×2400	2450×2400	2600×2500
Lifting Power	KW	2.2	2.2	2.2
Driving Power (Optional)	KW	0.75	0.75	0.75
Dimension	mm	2000×1250×2050	2000×1250×2450	2000×1250×2450
Weight	kg	900	1000	1000
