Seated Type Electric Reach Forklift
● Branded Control system with multiple auto protection to provide higher level of function safety.
● Branded vertical gearbox, multi-functional solution and flexible construction module system, optimized gear meshing technology to reduce operating noise provide high performance and efficiency.
|
Characteristic |
1.1 |
Model |
CQDE12C-45S |
CQDE15C-45S |
CQDE20C-45S |
|
|
1.2 |
Power Type |
Electric |
Electric |
Electric |
||
|
1.3 |
Operation Type |
Seated Type |
Seated Type |
Seated Type |
||
|
1.4 |
Load Capacity |
Q (kg) |
1200 |
1500 |
2000 |
|
|
1.5 |
Load Center |
C(mm) |
500 |
500 |
500 |
|
|
1.6 |
Front Overhang |
X(mm) |
180 |
180 |
180 |
|
|
1.7 |
Wheelbase |
Y(mm) |
1355 |
1355 |
1540 |
|
|
Weight |
2.1 |
Service Weight (With Battery) |
kg |
1995 |
2180 |
2535 |
|
Wheels, Chassis |
3.1 |
Wheel Type |
PU |
PU |
PU |
|
|
3.2 |
Front Wheel |
∅×w(mm) |
254*104 |
254*104 |
254*104 |
|
|
3.3 |
Drive Wheel |
∅×w(mm) |
230*75 |
230*75 |
230*75 |
|
|
3.4 |
Balance Wheel |
∅×w(mm) |
150*50 |
150*50 |
150*50 |
|
|
3.5 |
Wheel Tread, Front wheel |
b10(mm) |
984 |
984 |
984 |
|
|
3.6 |
Wheel Tread, Rear wheel |
b11(mm) |
772 |
772 |
772 |
|
|
Dimensions |
4.1 |
Mast Height, Lowered |
h1(mm) |
2120 |
2120 |
2120 |
|
4.2 |
Lifting Height |
h3(mm) |
4500 |
4500 |
4500 |
|
|
4.3 |
Height, mast entended |
h4(mm) |
5485 |
5485 |
5485 |
|
|
4.4 |
Height of overhead guards |
h14(mm) |
2090 |
2090 |
2090 |
|
|
4.5 |
Fork face min. ground clearance |
h13(mm) |
35 |
35 |
40 |
|
|
4.6 |
Fork tilting angle Front/Rear |
α/β (°) |
3/5 |
3/5 |
3/5 |
|
|
4.7 |
Overall Length |
l1(mm) |
2250 |
2250 |
2350 |
|
|
4.8 |
Body Length |
l2(mm) |
1689 |
1689 |
1874 |
|
|
4.9 |
Overall Width |
b1(mm) |
1100 |
1100 |
1100 |
|
|
4.10 |
Fork Size |
s/e/l(mm) |
35/100/1070 |
35/100/1070 |
40/122/1070 |
|
|
4.11 |
Fork Spread |
b5(mm) |
210-705 |
210-705 |
244-705 |
|
|
4.12 |
Reach Distance |
L(mm) |
500 |
500 |
600 |
|
|
4.13 |
Mi. Ground clearance |
m2(mm) |
80 |
80 |
80 |
|
|
4.14 |
Aisle Width for Pallet 1000*1200 crossways |
Ast(mm) |
2764 |
2764 |
2872 |
|
|
4.15 |
Min.turning radius |
Wa(mm) |
1600 |
1600 |
1780 |
|
|
Performance |
5.1 |
Max.travel speed (Unladen/Laden) |
km/h |
6.5/5.5 |
6.5/5.5 |
6.5/5.5 |
|
5.2 |
Lifting Speed (Unladen/Laden) |
m/s |
0.135/0.115 |
0.135/0.110 |
0.135/0.100 |
|
|
5.3 |
Lowering Speed (Unladen/Laden) |
m/s |
0.085/0.120 |
0.085/0.132 |
0.085/0.140 |
|
|
5.4 |
Max.grade ability (Unladen/Laden) |
％ |
8/6 |
8/4 |
8/4 |
|
|
5.5 |
Service Brake |
Electromagnetic |
Electromagnetic |
Electromagnetic |
||
|
Motor, Charger |
6.1 |
Drive Motor |
kw |
1.5 |
2.5 |
2.5 |
|
6.2 |
Lift Motor |
kw |
3 |
3 |
3 |
|
|
6.3 |
Battery Type |
Lead Acid |
Lead Acid |
Lead Acid |
||
|
6.4 |
Battery voltage/nominal capacity |
V/Ah |
24V280Ah |
24V280Ah |
24V280Ah |
|
|
6.5 |
Charger |
V/Ah |
24V/40A |
24V/40A |
24V/40A |
|
|
Other |
7.1 |
Type of drive control |
AC |
AC |
AC |
|
|
7.2 |
Sound level at the driver's ear acc. to EN12053 |
dB(A) |
75 |
75 |
75 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
||||||
Detailed Information

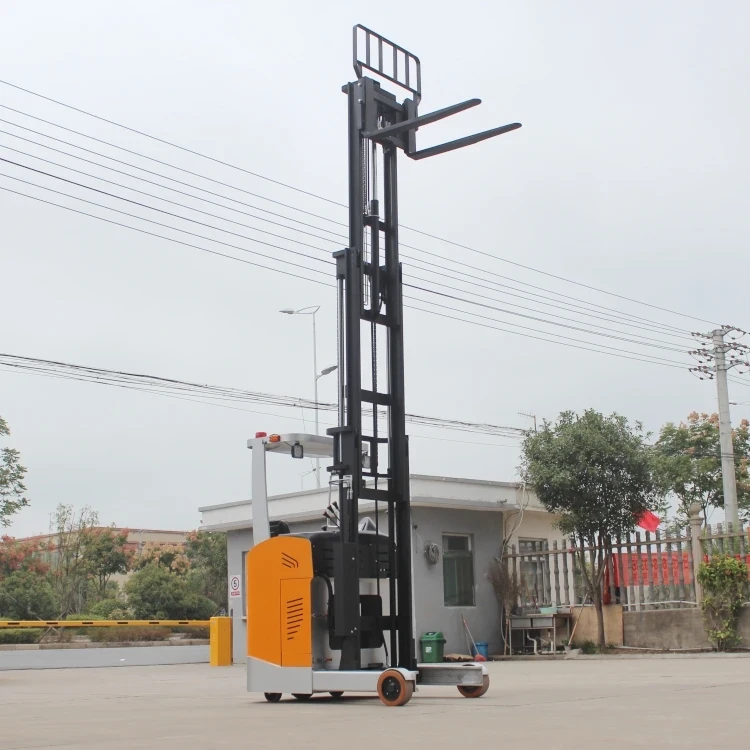

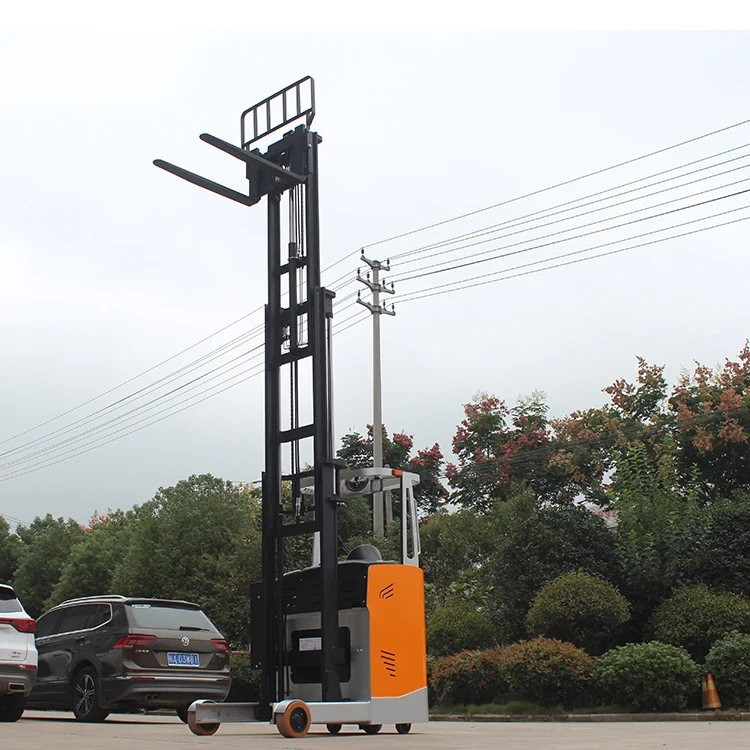

● Compact and stable Structure suits for big load high lift. Mast reaches and backwards, Small turning radius.
● Branded Control system with multiple auto protection to provide higher level of function safety.
● Branded vertical gearbox, multi-functional solution and flexible construction module system, optimized gear meshing technology to reduce operating noise provide high performance and efficiency.
● Automatically slow down lowering when the loaded fork reach about 100 MM from ground to make it saft operation.
