3ton 6000mm Four-Directional Electric Reach Forklift
4 Way Driving, Best option for Very Narrow Aisle operating and long material handling.
Space Saving, rapid swift from straight to lateral driving.
Easy and safe operation with high efficiency low failure Imported Branded control system has multiple automatic protection systems to provide a higher level of functional safety.
The intelligent HD display with real-time information and fault display, easy for troubleshoot and repair.
Full AC drive system, faster response, more accurate control EPS system makes more convenient and flexible operation, improve high-speed operation stability.
Driving Wheel Angle real-time display offers tiny direction adjustment, safe and reasonable, accurate identification.
Large capacity battery, strong power, safe and reliable, convenient charging, long cycle life, low maintenance cost.
Side-pull battery suit multi-shift operation, with standard battery trolley for easy replacement.
The electromagnetic brakes fast and safely.
|

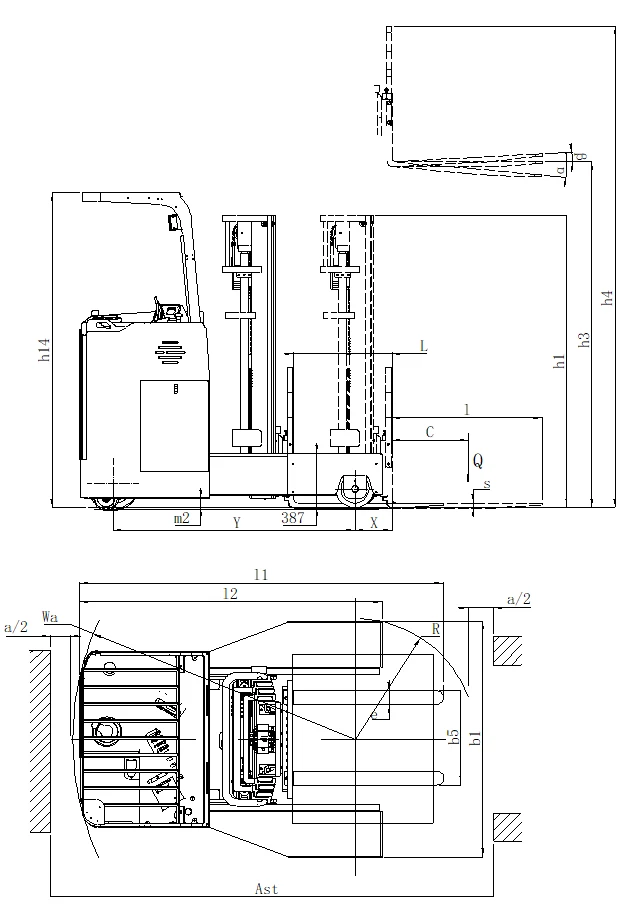

Characteristic |
1.1 |
Model |
CQDS15-45S |
CQDS20-45S |
CQDS25-45S |
CQDS30-60S |
|
|
1.2 |
Load Capacity |
Q(kg) |
1500 |
2000 |
2500 |
3000 |
|
|
1.3 |
load Center |
C(mm) |
500 |
500 |
500 |
500 |
|
|
1.4 |
Front Overhang |
X(mm) |
200 |
200 |
200 |
250 |
|
|
1.5 |
Wheelbase Distance |
Y(mm) |
1622 |
1722 |
1822 |
1824 |
|
|
Weight |
2.1 |
Service Weight (With Battery) |
kg |
3400 |
3500 |
3800 |
|
|
Wheels, |
3.1 |
Wheel Type |
PU |
PU |
PU |
PU |
|
|
3.2 |
Front Wheel |
∅×w(mm) |
φ267*114 |
φ267*114 |
φ267*114 |
φ285*78(4) |
|
|
3.3 |
Driving Wheel |
∅×w(mm) |
φ382*142 |
φ382*142 |
φ382*142 |
φ382*142 |
|
|
3.4 |
Balance Wheel |
∅×w(mm) |
φ180*76 |
φ180*76 |
φ180*76 |
φ180*76(2) |
|
|
3.5 |
Wheel Tread (Front Wheel) |
b10(mm) |
1430 |
1430 |
1430 |
1583 |
|
|
3.6 |
Wheel Tread (Rear Wheel) |
b11(mm) |
703 |
703 |
703 |
703 |
|
|
Dimensions |
4.1 |
Mast Height Lowered |
h1(mm) |
2110 |
2110 |
2360 |
2996 |
|
4.2 |
Free Lift |
h2(mm) |
1500 |
1500 |
1500 |
1980 |
|
|
4.3 |
Lift Height |
h3(mm) |
4500 |
4500 |
4500 |
6000 |
|
|
4.4 |
Height,mast entended |
h4(mm) |
5480 |
5480 |
5480 |
6965 |
|
|
4.5 |
Height of overhead Guards |
h14(mm) |
2280 |
2280 |
2280 |
2280 |
|
|
4.6 |
Fork Height When Mast Lowdered |
h13(mm) |
35 |
40 |
45 |
45 |
|
|
4.7 |
Mast Tilt Angle Forward/Backward |
α/β(°) |
3/5 |
3/5 |
3/5 |
3/5 |
|
|
4.8 |
Overall length with fork retracted |
l1(mm) |
2505 |
2585 |
2700 |
2650 |
|
|
4.9 |
Overall Length (Without Fork) |
l2(mm) |
2046 |
2146 |
2246 |
2295 |
|
|
4.10 |
Overall Width |
b1(mm) |
1680 |
1680 |
1680 |
1900 |
|
|
4.11 |
Fork Size |
s/e/l(mm) |
35/100/1070 |
40/122/1070 |
45/125/1070 |
45/125/1070 |
|
|
4.12 |
Fork Spread (Customizable) |
b5(mm) |
210-705 |
260-705 |
270-840 |
270-840 |
|
|
4.13 |
Reach Distance |
L(mm) |
655 |
700 |
640 |
720 |
|
|
4.14 |
Min. Ground Clearance |
m2(mm) |
80 |
80 |
80 |
80 |
|
|
4.15 |
Aisle Widthfor Pallet 1000*1200 Crossways |
Ast(mm) |
2705 |
2785 |
2900 |
3050 |
|
|
4.16 |
Min. Turning Radius |
Wa(mm) |
1905 |
2000 |
2105 |
2055 |
|
|
Performance |
5.1 |
Max. Travel Speed (Unladen/Laden) |
km/h |
8/7 |
8/7 |
8/7 |
8/7 |
|
5.2 |
Lifting Speed (Unladen/Laden) |
m/s |
0.250/0.240 |
0.240/0.220 |
0.240/0.220 |
0.240/0.220 |
|
|
5.3 |
Lowering Ing Speed (Unladen/Laden) |
m/s |
0.240/0.260 |
0.240/0.260 |
0.240/0.260 |
0.240/0.260 |
|
|
5.4 |
Max.gradeability (Unladen/Laden) |
％ |
≤10 |
≤10 |
≤10 |
≤10 |
|
|
5.5 |
Service Brake |
Electromagnetic |
Electromagnetic |
Electromagnetic |
Electromagnetic |
||
|
Motor, |
6.1 |
Drive Motor |
kw |
6.5 |
6.5 |
6.5 |
8 |
|
6.2 |
Lift Motor |
kw |
8.6 |
8.6 |
8.6 |
12 |
|
|
6.3 |
Battery Type |
Lead Acid |
Lead Acid |
Lead Acid |
Lead Acid |
||
|
6.4 |
Battery voltage/nominal capacity |
V/Ah |
48V300Ah |
48V400Ah |
48V400Ah |
48V400Ah |
|
|
6.5 |
Charger |
V/Ah |
48V/40A |
48V/50A |
48V/50A |
48V/50A |
|
|
Other |
7.1 |
Type of Drive Control |
AC |
AC |
AC |
AC |
|
|
7.2 |
Sound level at the driver's ear acc.to EN12053 |
dB(A) |
75 |
75 |
75 |
75 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
|||||||
