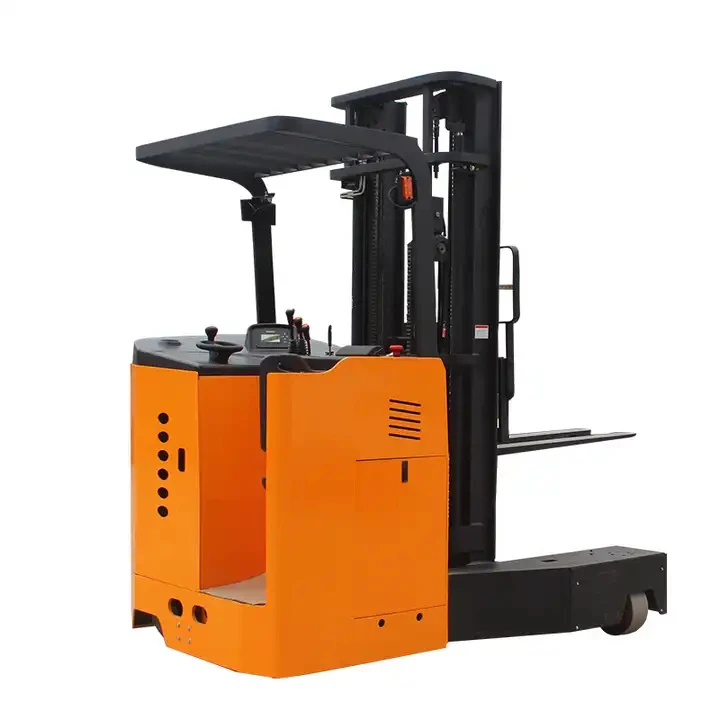

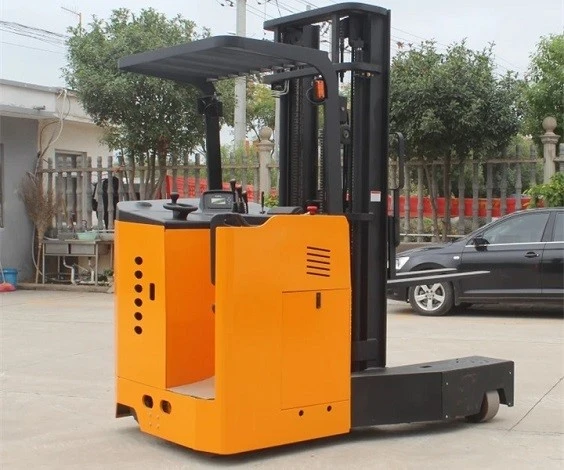

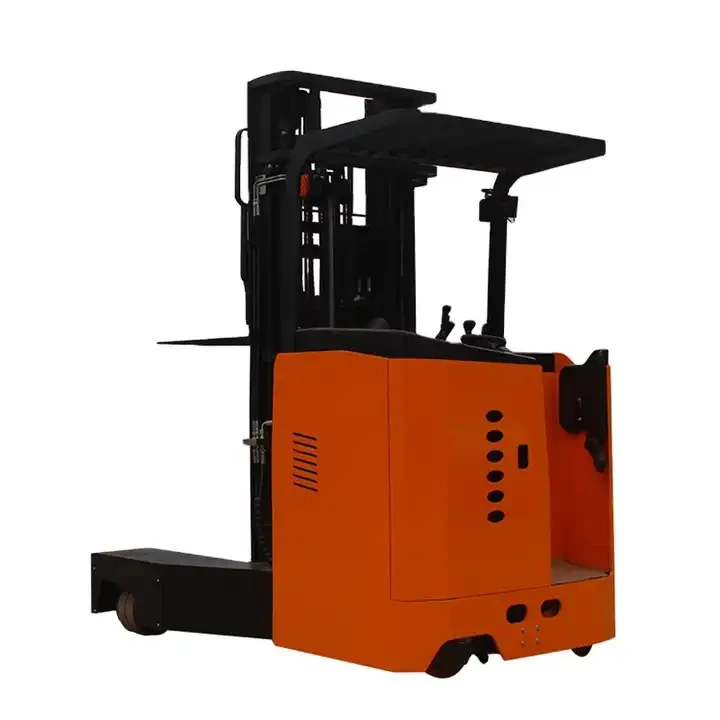

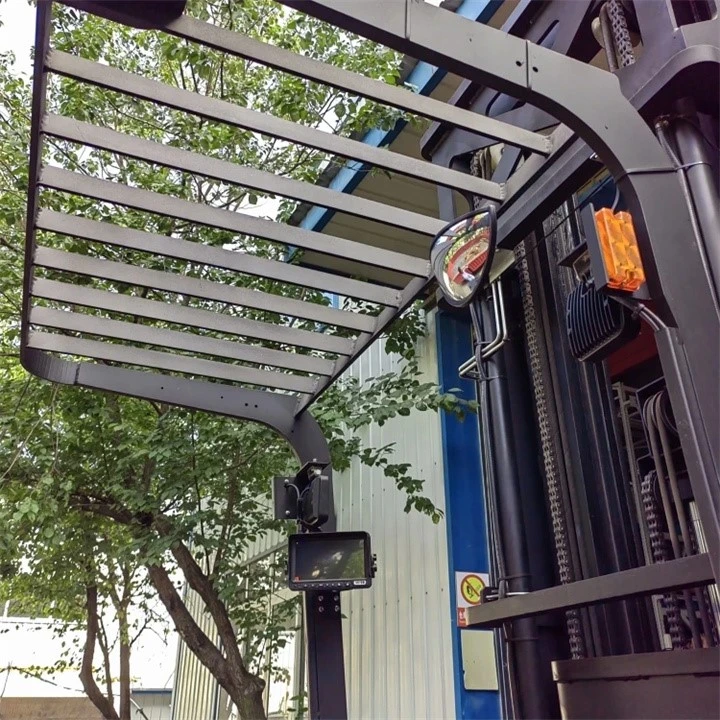

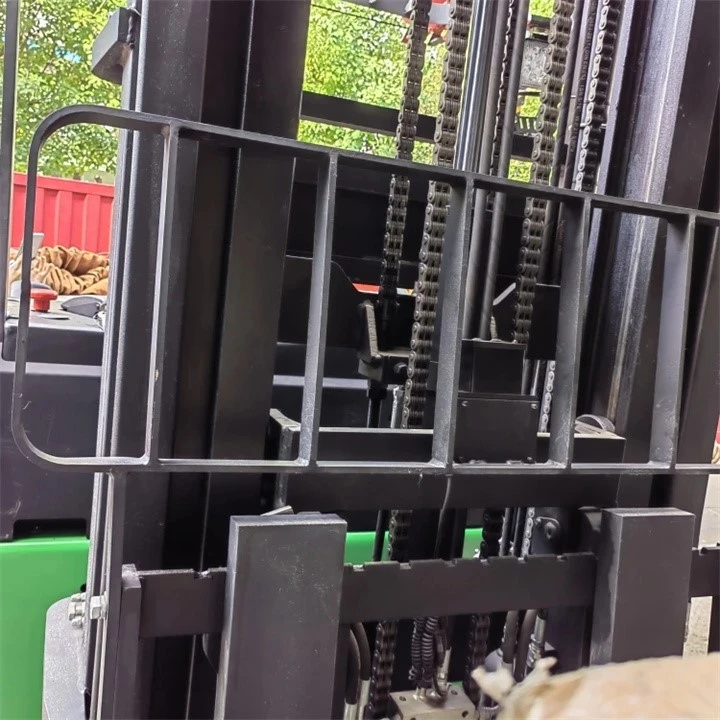

Multidirectional Reach Truck
● lmported Branded control system has multiple automatic protection systems to provide a higher level of functional safety.

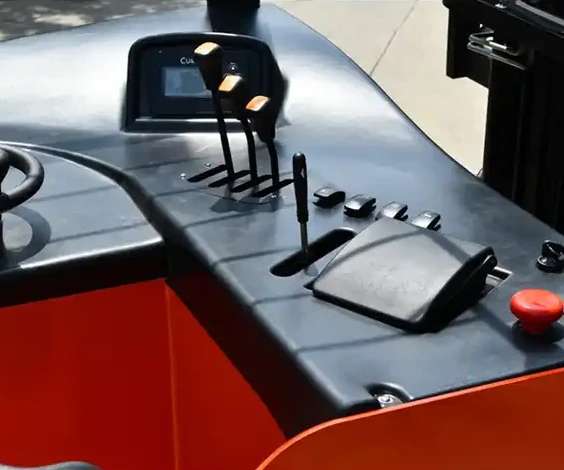

● The intelligent HD display with real-time information and fault display,easy for troubleshoot and repair.
● 4 Way Driving, Best option for Very Narrow Aisle operating and long material handling. Easy and safe operation with high efficiency low failure.
● lmported Branded control system has multiple automatic protection systems to provide a higher level of functional safety.
● The intelligent HD display with real-time information and fault display, easy for troubleshoot and repair.
● Large capacity battery, strong power safe and reliable, convenient charging long cycle life, low maintenance cost.
|
Multi-directional Reach Truck |
||||||
|
Characteristic |
1.1 |
Model |
CQD15SE-45S |
CQD20SE-45S |
CQD25SE-45S |
|
|
1.2 |
Load Capacity |
Q(kg) |
1500 |
2000 |
2500 |
|
|
1.3 |
Load Center |
C(mm) |
500 |
500 |
500 |
|
|
1.4 |
Front Overhang |
X(mm) |
210 |
210 |
210 |
|
|
1.5 |
Wheelbase Distance |
Y(mm) |
1600 |
1700 |
1800 |
|
|
Weight |
2.1 |
Service Weight (With Battery) |
kg |
3500 |
3600 |
4100 |
|
Wheels, Chassis |
3.1 |
Wheel Type |
PU |
PU |
PU |
|
|
3.2 |
Front Wheel |
∅×w(mm) |
φ267*114 |
φ267*114 |
φ267*114 |
|
|
3.3 |
Driving Wheel |
∅×w(mm) |
φ382*142 |
φ382*142 |
φ382*142 |
|
|
3.4 |
Wheel Tread (Front Wheel) |
b10(mm) |
1432 |
1432 |
1432 |
|
|
Dimensions |
4.1 |
Mast Height Lowered |
h1(mm) |
2110 |
2110 |
2360 |
|
4.2 |
Free Lift |
h2(mm) |
1500 |
1500 |
1500 |
|
|
4.3 |
Lift Height |
h3(mm) |
4500 |
4500 |
4500 |
|
|
4.4 |
Height, mast extended |
h4(mm) |
5480 |
5480 |
5480 |
|
|
4.5 |
Height of Overhead Guards |
h14(mm) |
2280 |
2280 |
2180 |
|
|
4.6 |
Fork Height When Mast Lowered |
h13(mm) |
35 |
40 |
45 |
|
|
4.7 |
Mast Tilt Angle Forward/Backward |
α/β(°) |
3/5 |
3/5 |
3/5 |
|
|
4.8 |
Overall length with fork retracted |
l1(mm) |
2490 |
2540 |
2660 |
|
|
4.9 |
Overall Length (Without Fork) |
l2(mm) |
2080 |
2180 |
2280 |
|
|
4.10 |
Overall Width |
b1(mm) |
1682 |
1682 |
1682 |
|
|
4.11 |
Outrigger Height |
h5(mm) |
390 |
390 |
390 |
|
|
4.12 |
Outrigger Inner Width |
b12(mm) |
932 |
932 |
932 |
|
|
4.13 |
Outrigger Outer Width |
b11(mm) |
1682 |
1682 |
1682 |
|
|
4.14 |
Fork Size |
s/e/l(mm) |
35/100/1070 |
40/122/1070 |
45/125/1070 |
|
|
4.15 |
Fork Spread (Customizable) |
b5(mm) |
210-700 |
260-700 |
260-700 |
|
|
4.16 |
Reach Distance |
L(mm) |
685 |
735 |
720 |
|
|
4.17 |
Min Ground Clearance |
m2(mm) |
70 |
70 |
70 |
|
|
4.18 |
Aisle Widthfor Pallet 1000*1200 Crossways |
Ast(mm) |
2690 |
2740 |
2860 |
|
|
4.19 |
Min. Turning Radius |
Wa(mm) |
1916 |
2015 |
2120 |
|
|
Performance |
5.1 |
Travel Speed (Unladen/Laden) |
km/h |
8/7 |
8/7 |
8/7 |
|
5.2 |
Lifting Speed (Unladen/Laden) |
m/s |
0.250/0.240 |
0.240/0.220 |
0.240/0.220 |
|
|
5.3 |
Lowering Speed (Unladen/Laden) |
m/s |
0.240/0.260 |
0.240/0.260 |
0.240/0.260 |
|
|
5.4 |
Max.gradeability (Unladen/Laden) |
％ |
≤10 |
≤10 |
≤10 |
|
|
5.5 |
Service Brake |
Electromagnetic |
Electromagnetic |
Electromagnetic |
||
|
Motor, Charger |
6.1 |
Drive Motor |
kw |
6.5 |
6.5 |
6.5 |
|
6.2 |
Lift Motor |
kw |
8.6 |
8.6 |
8.6 |
|
|
6.3 |
Battery Type |
Lead Acid |
Lead Acid |
Lead Acid |
||
|
6.4 |
Battery voltage/ nominal capacity |
V/Ah |
48V300Ah |
48V400Ah |
48V400Ah |
|
|
6.5 |
Charger |
V/Ah |
48V/40A |
48V/50A |
48V/50A |
|
|
Other |
7.1 |
Type of Drive Control |
AC |
AC |
AC |
|
|
7.2 |
Sound level at the driver's ear acc.to EN12053 |
dB(A) |
75 |
75 |
75 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
||||||
