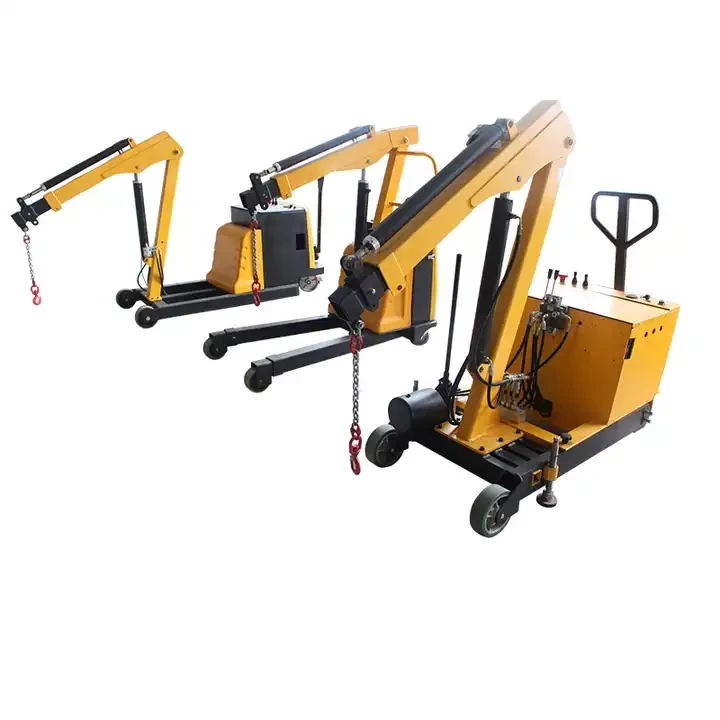

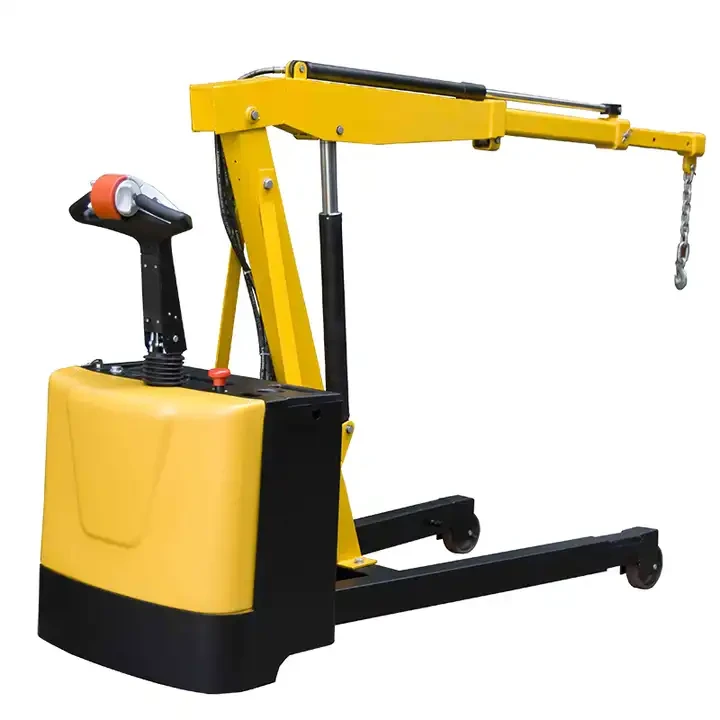

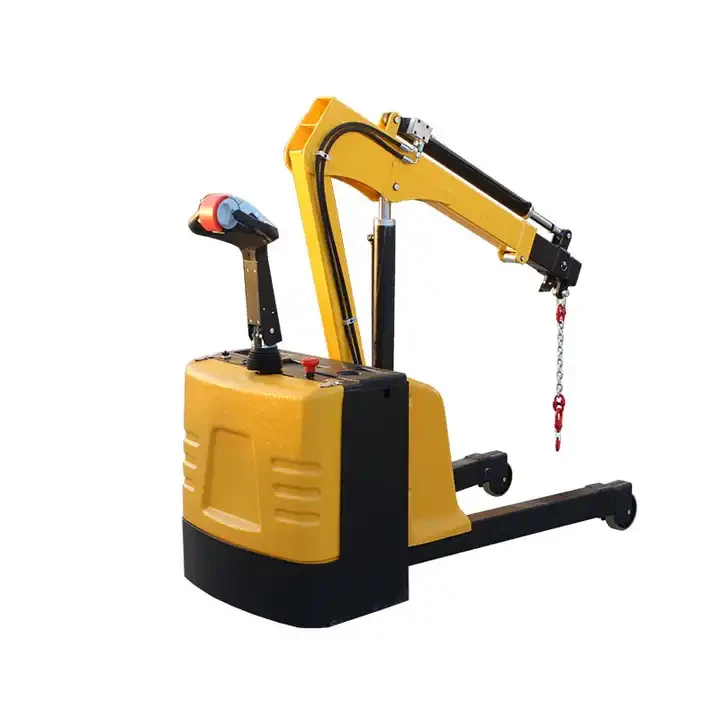

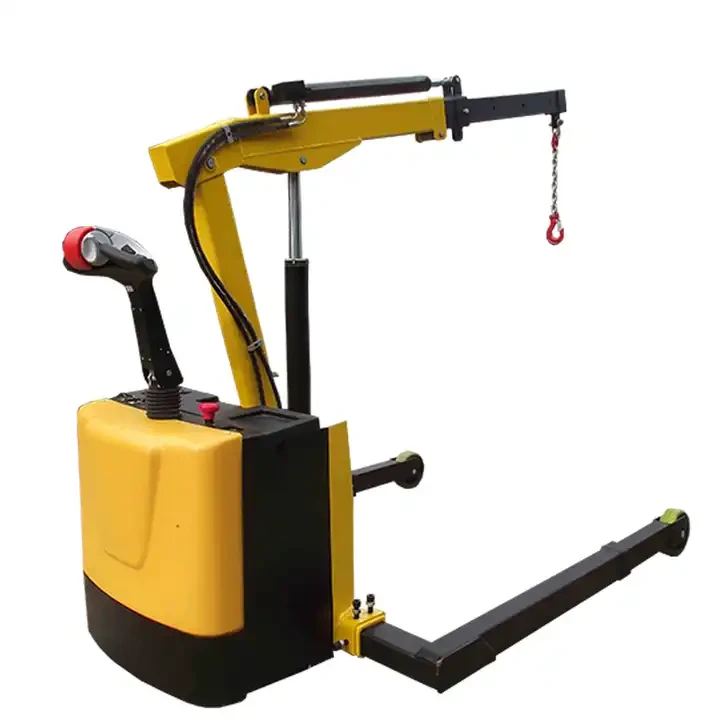

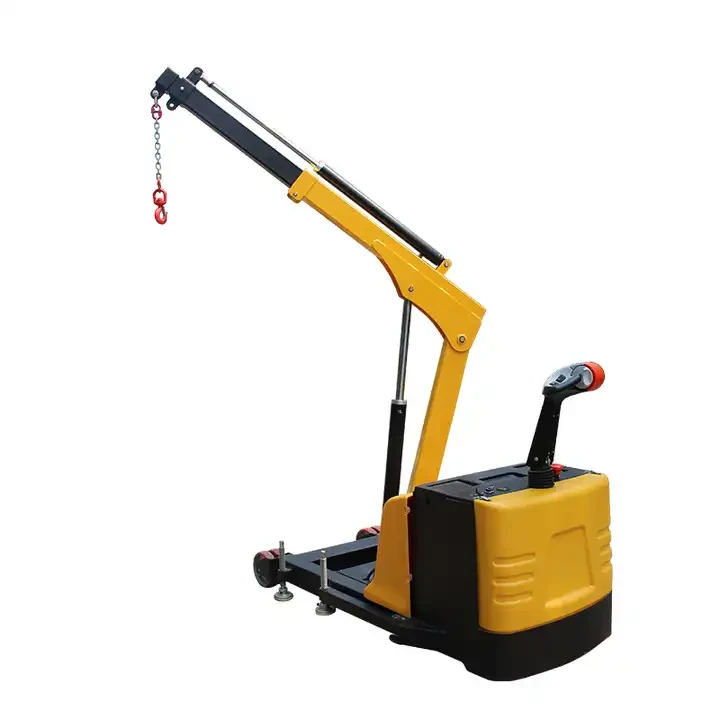

Floor Shop Crane
Fully powered Floor Shop Crane (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hours operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.
Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Check valve
5. Adjustment valve
6. Gradienter
|
Model Type |
EPFC-25 |
EPFC-25-AA |
EPFC-CB-15 |
|
Capacity (Retracted) (kg) |
1000 |
1000 |
650 |
|
Capacity (Extended) (kg) |
250 |
250 |
150 |
|
Max Lifting Height Retracted/ Extended |
2220/3310mm |
2260/3350mm |
2250/3340mm |
|
Max Length crane extended |
813mm |
1220mm |
813mm |
|
Max length legs extended |
600mm |
500mm |
/ |
|
Retracted size(W*L*H) |
762*2032*1600mm |
762*2032*1600mm |
889*2794*1727mm |
|
Net weight (kg) |
500 |
480 |
770 |
Our Service:
1. We can design the customerized the lifter as per your requirement.
2. The most suitable model will be recommended to you once we know about your requirement.
3. Shipment can be arranged from our port to your destination port or home.
4. Opetion video can be sent to you if needed.
5. Maintenance video and user manual.
6. Parts of the lifting equipment can be sent to you by express within 7 days if needed.
