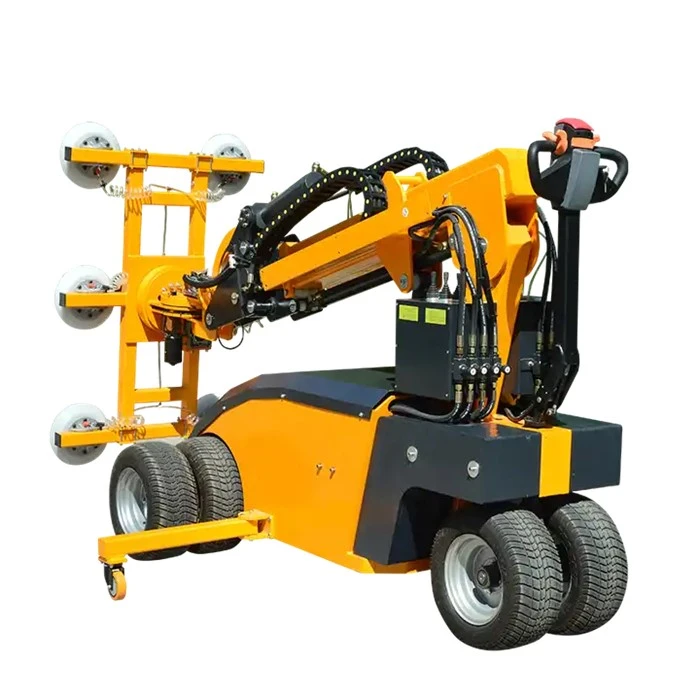

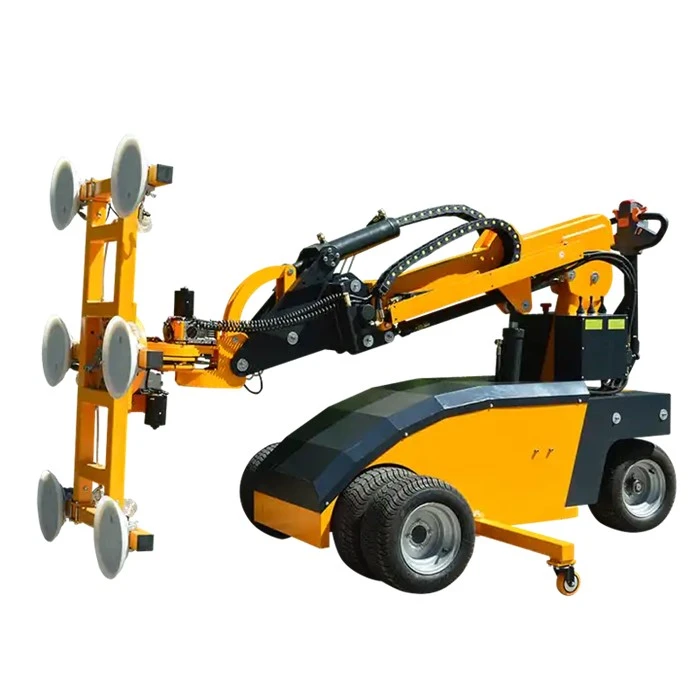

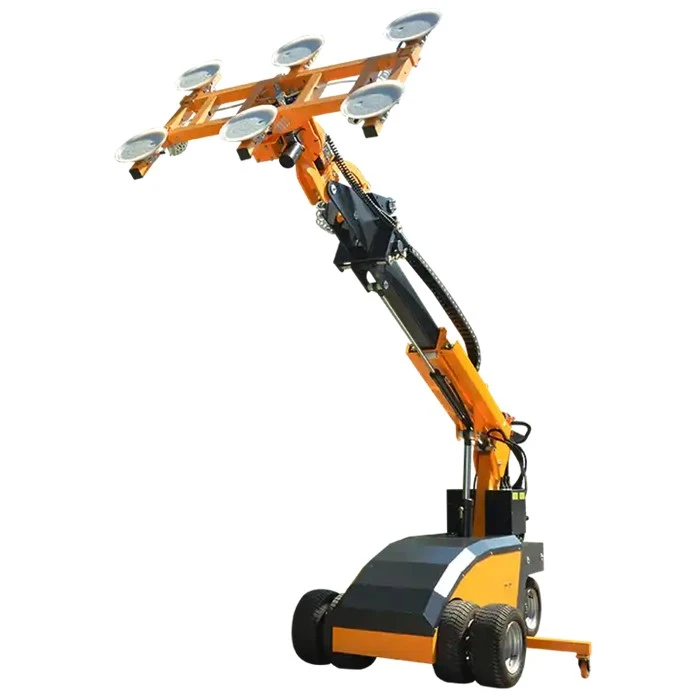

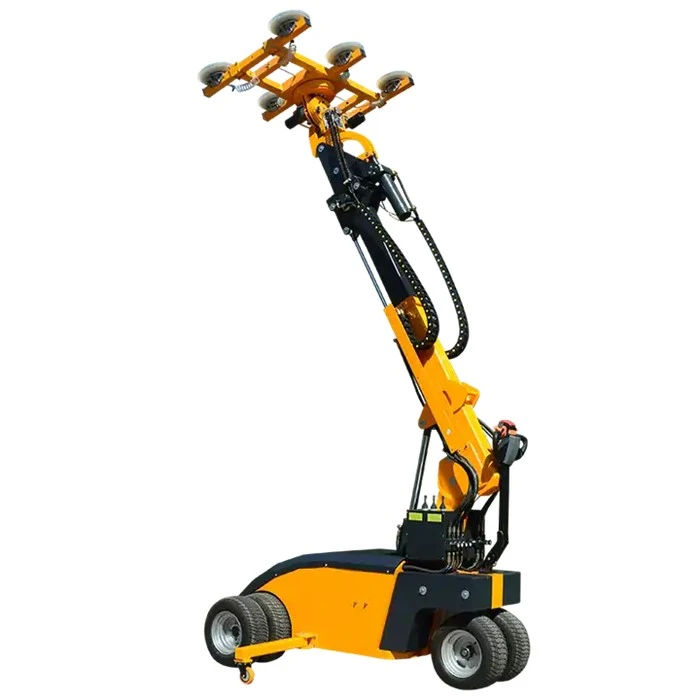

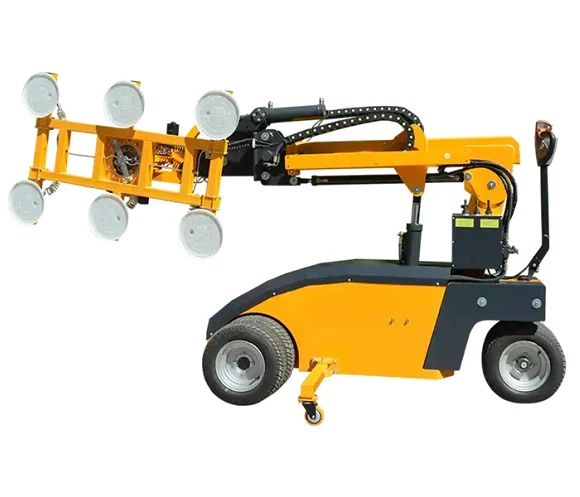

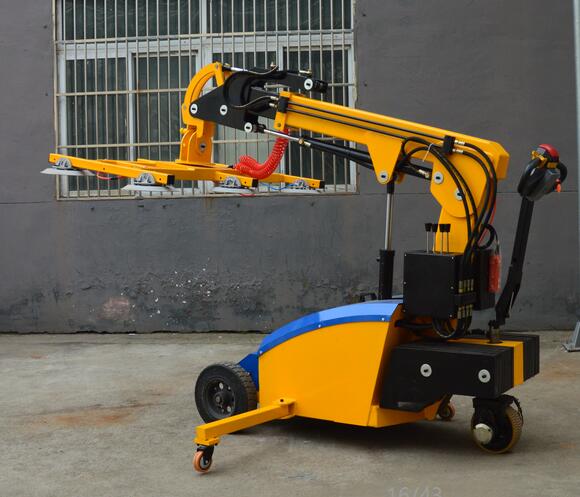

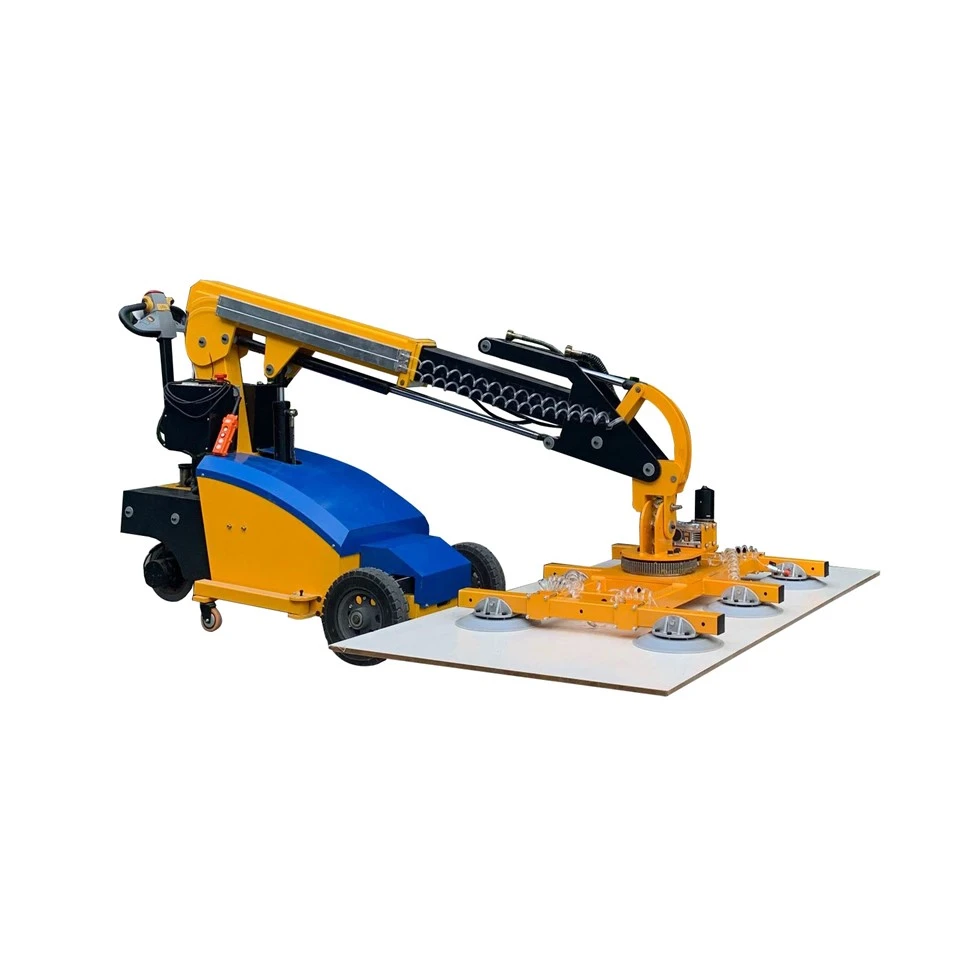

Glass Vacuum Lifter Robot
|
Glass Vacuum Lifter Robot |
Unit |
CDD-L |
|||
|
Rated load capacity |
kg |
300 |
350 |
400 |
500 |
|
Manual rotating |
deg |
270 |
270 |
270 |
270 |
|
lifting height |
mm |
3500 |
3500 |
3500 |
3500 |
|
Manipulation |
/ |
Walkie Type |
Walkie Type |
Walkie Type |
Walkie Type |
|
Battery |
V/A |
2x12/40 |
2x12/40 |
2x12/45 |
2x12/60 |
|
Charger |
V/A |
24/12 |
24/12 |
24/12 |
24/15 |
|
Drive motor |
V/W |
24/750 |
24/750 |
24/750 |
24/1200 |
|
Lift motor |
V/W |
24/2000 |
24/2000 |
24/2000 |
24/2200 |
|
Overall Width |
mm |
840 |
840 |
840 |
840 |
|
Overall Length |
mm |
2760 |
2760 |
2760 |
2760 |
|
Overall Height |
|
1800 |
|
|
|
|
Driving wheel dimension |
mm |
250*80 |
250*80 |
250*80 |
250*80 |
|
Suckers diameter |
mm |
300 |
300 |
300 |
300 |
|
The glass size |
mm |
3660*2440 |
3660*2440 |
3660*2440 |
3660*2440 |
Whether you need to tackle a floor to ceiling installation or wall to wall, RuyiLift has the glass lifting machine to perfectly match your job requirements. Choose from a variety of indoor and heavy-duty outdoor machines that allow you the flexibility and precision to conquer even the toughest job.
CE approved Glass transporter building glass vacuum lifter
Suitable for smooth surfaces such as glass, ceramics, stone, and sheet. Imported suction cup, three-layer sealing ring, good sealing, soft and environmentally friendly material. Double system control, Japan imported air pressure gauge, European imported air pressure pump, stable quality and high safety performance. Easily handle lifting, moving and spinning with vacuum chucks and powerful drive systems.
Main features:
1.Electric lifting and electric walking.
2.Manual 270 degree rotation.
3.Electric positioning.
4.Glass sucker cup for lifting glass.
