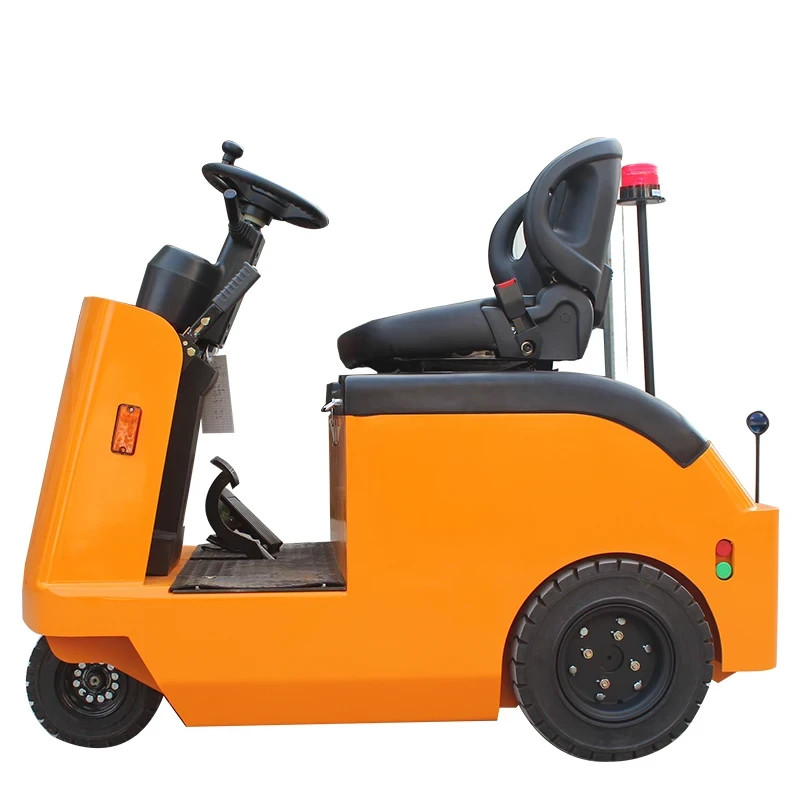

Tow Tractors Sit Type
● 4-6 Ton models are equipped with a large luggage compartment suits luggage, cargo, and mail loaded and unloaded by aircraft.
● AC drive system, high torque, strong grade ability, ensure run smoothly on uneven roads and slopes.
|
Characteristic |
1.1 |
Model |
EPQ20B |
EPQ30B |
EPQ40B |
EPQ60B |
|
|
1.2 |
Power |
Electric |
Electric |
Electric |
Electric |
||
|
1.3 |
Operation Type |
Seated Type |
Seated Type |
Seated Type |
Seated Type |
||
|
1.4 |
Load Capacity |
Q (kg) |
2000 |
3000 |
4000 |
6000 |
|
|
1.5 |
Load Traction |
C (N) |
500 |
750 |
1000 |
1500 |
|
|
1.6 |
Wheelbase |
Y (mm) |
1040 |
1040 |
1355 |
1355 |
|
|
Weight |
2.1 |
Self-weight With Battery |
kg |
880 |
905 |
1000 |
1200 |
|
2.2 |
Battery Weight |
kg |
180 |
205 |
355 |
550 |
|
|
Wheels, Chassis |
3.1 |
Wheel Type |
Rubber Solid Tyre |
Rubber Solid Tyre |
Rubber Solid Tyre |
Rubber Solid Tyre |
|
|
3.2 |
Front Wheel |
3.50-5 |
3.50-5 |
3.50-5 |
3.50-5 |
||
|
3.3 |
Rear Wheel |
4.00-8 |
4.00-8 |
4.00-8 |
4.00-8 |
||
|

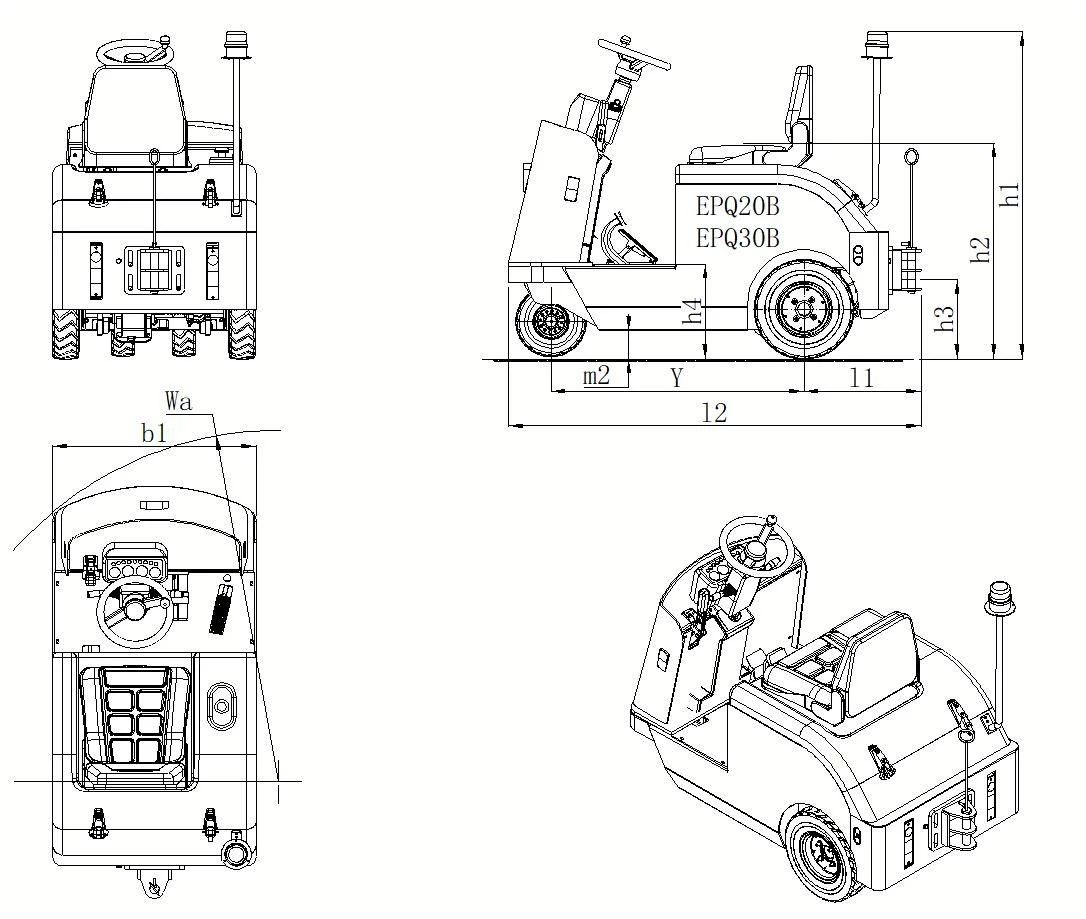

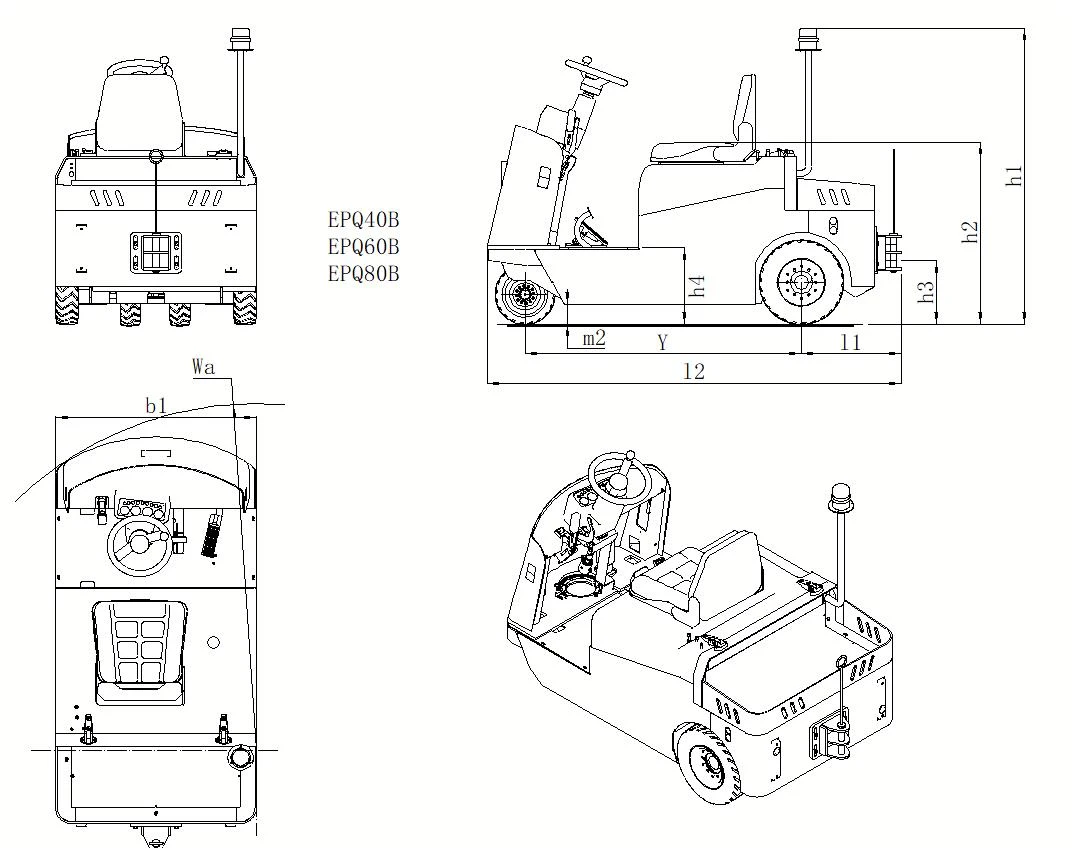

Dimensions |
4.1 |
Vehicle Height |
h1 (mm) |
1385 |
1385 |
1445 |
1445 |
|
4.2 |
Seat Height |
h2 (mm) |
880 |
880 |
900 |
900 |
|
|
4.3 |
Traction Hook Height |
h3 (mm) |
300/380 |
300/380 |
310/410 |
310/410 |
|
|
4.4 |
Pedal Height |
h4 (mm) |
400 |
400 |
400 |
400 |
|
|
4.6 |
Rear Overhang Distance |
l1 (mm) |
480 |
480 |
492 |
492 |
|
|
4.7 |
Width of loading platform |
/ |
/ |
420 |
420 |
||
|
4.9 |
Vehicle Body Length |
l2 (mm) |
1710 |
1710 |
2030 |
2030 |
|
|
4.10 |
Vehicle Body Width |
b1 (mm) |
845 |
845 |
985 |
985 |
|
|
4.11 |
Ground Clearance |
m2 |
100 |
100 |
100 |
100 |
|
|
4.12 |
Turning Radius |
Wa (mm) |
1460 |
1460 |
1700 |
1700 |
|
|
Performance |
5.1 |
Driving Speed, Unladen/Laden |
km/h |
7/5 |
7/5 |
7/5 |
7/5 |
|
5.2 |
Max. gradeability, Unladen/Laden |
％ |
10/8 |
8/6 |
8/4 |
10/5 |
|
|
5.3 |
Max. traction, Laden |
N |
1000 |
2200 |
3000 |
3200 |
|
|
5.4 |
Service Brake |
Mechanical+Hydraulic |
Mechanical+Hydraulic |
Mechanical+Hydraulic |
Mechanical+Hydraulic |
||
|
Motor, Charger |
6.1 |
Drive Motor |
kw |
2.5 |
2.5 |
3 |
4.5 |
|
6.2 |
Battery |
Lead Acid |
Lead Acid |
Lead Acid |
Lead Acid |
||
|
6.3 |
Battery voltage/nominal capacity |
V/Ah |
24V210Ah |
24V240Ah |
24V350Ah |
48V280Ah |
|
|
6.4 |
Charger |
V/A |
24V/30A |
24V/30A |
24V/50A |
48V/40A |
|
|
Other |
7.1 |
Type of drive control |
AC |
AC |
AC |
AC |
|
|
7.2 |
Sound level at the driver's ear acc. to EN12053 |
dB(A) |
75 |
75 |
75 |
75 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
|||||||

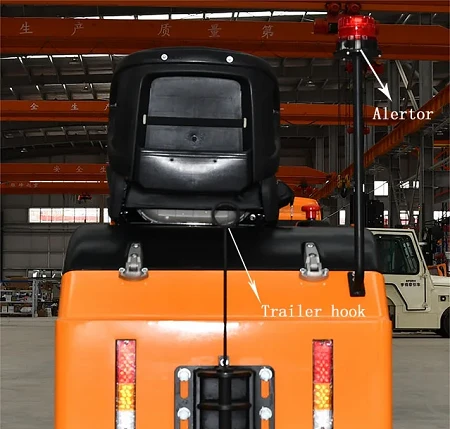

● Adjustable tow hitch to meet various towing needs.
● 4-6 Ton models are equipped with a large luggage compartment suits luggage, cargo, and mail loaded and unloaded by aircraft.
● AC drive system, high torque, strong grade ability, ensure run smoothly on uneven roads and slopes.
● Large-diameter solid tires suite various conditions

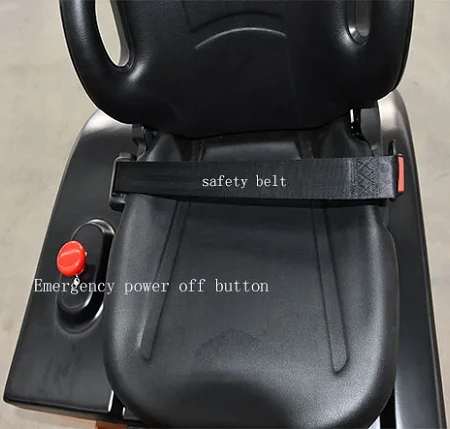

● Emergency power disconnect switch.

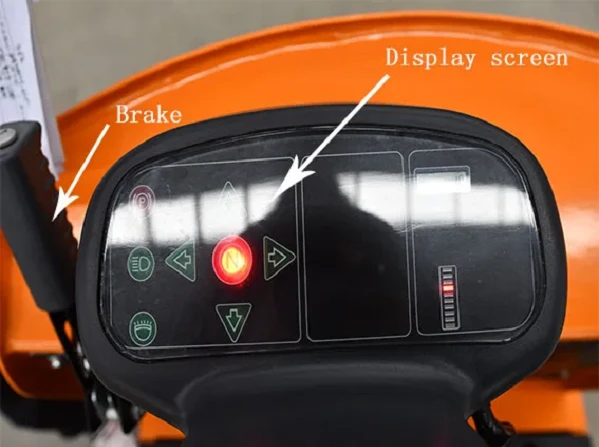

● Power meter to remind charging to protect the battery
● Magnetic navigation/ laser navigation AGV customizable.
