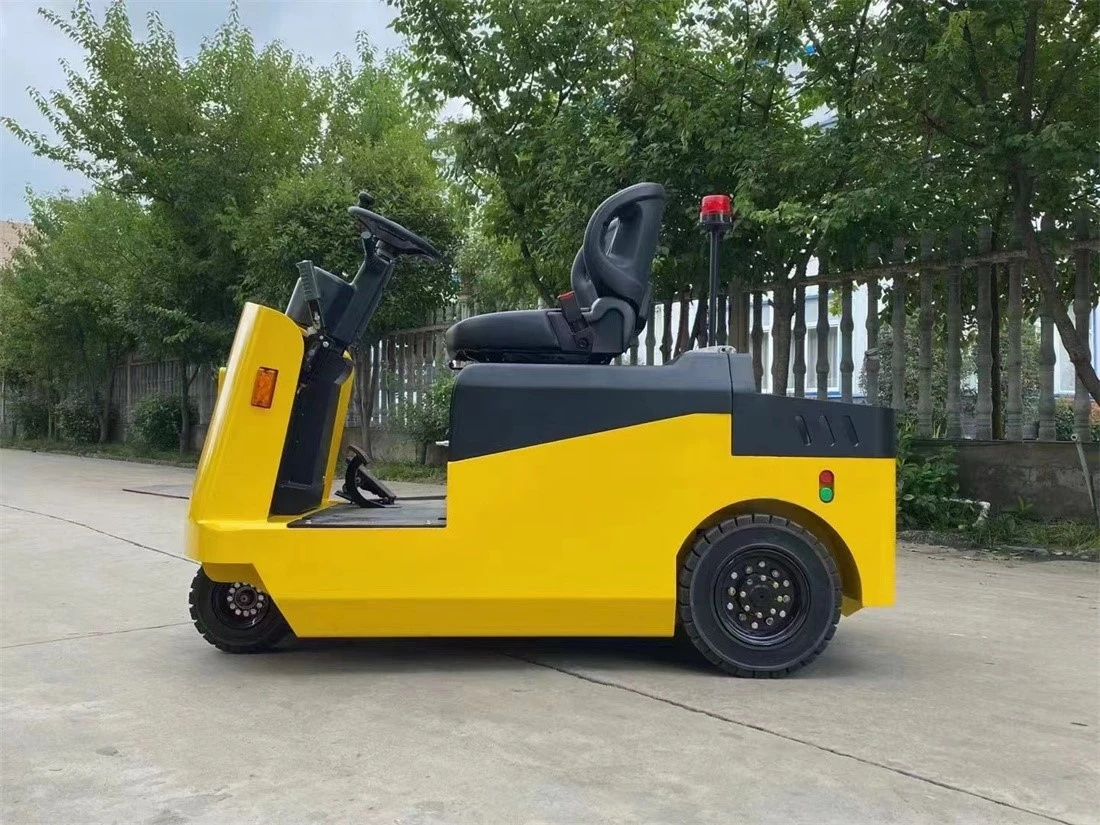

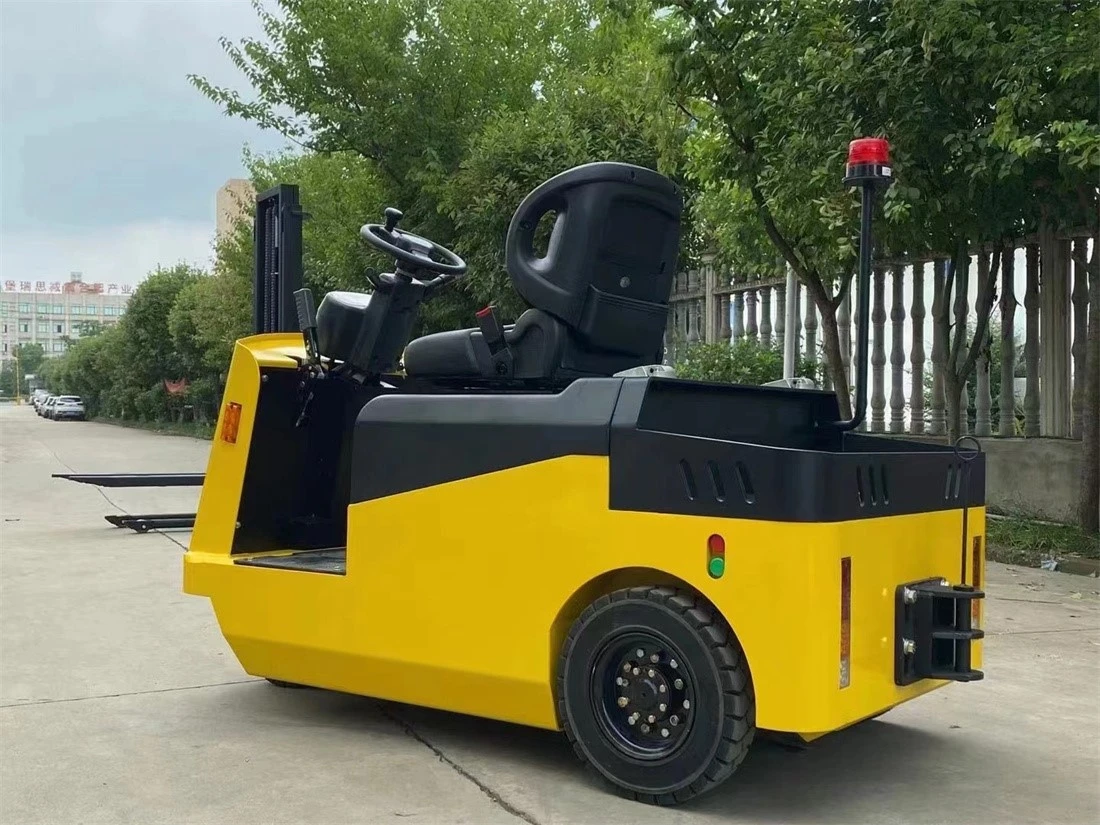

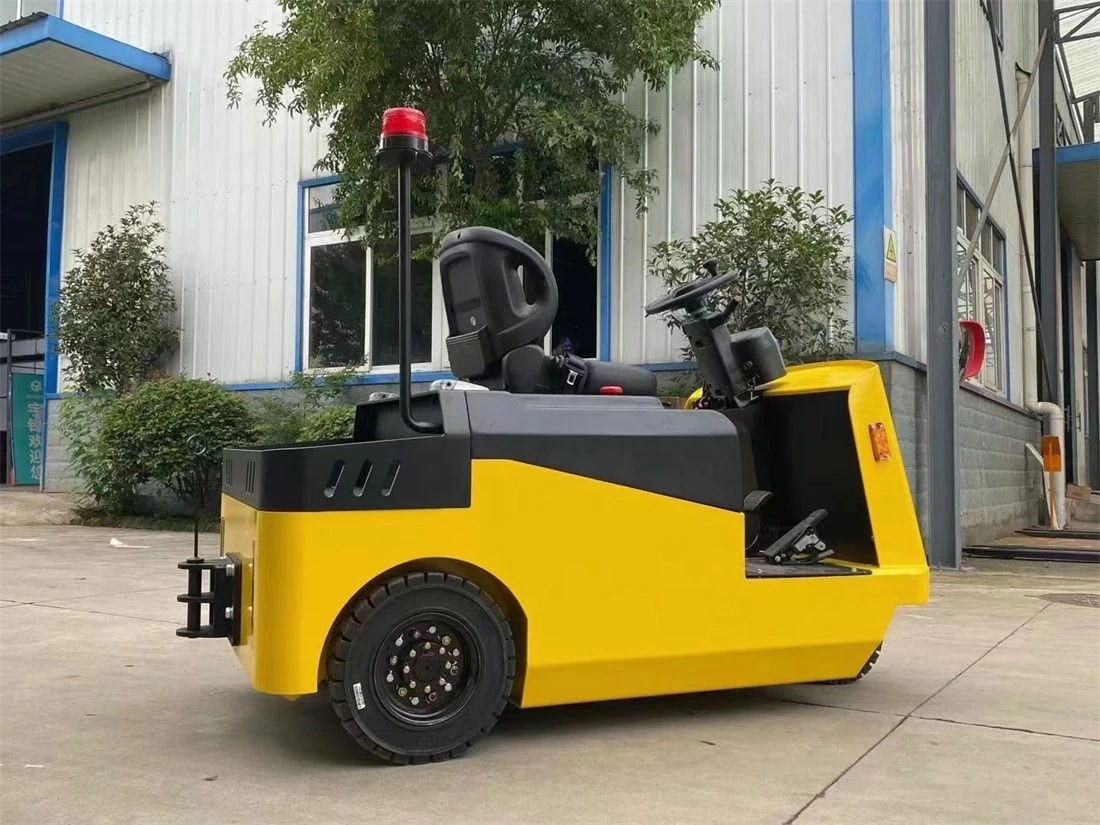

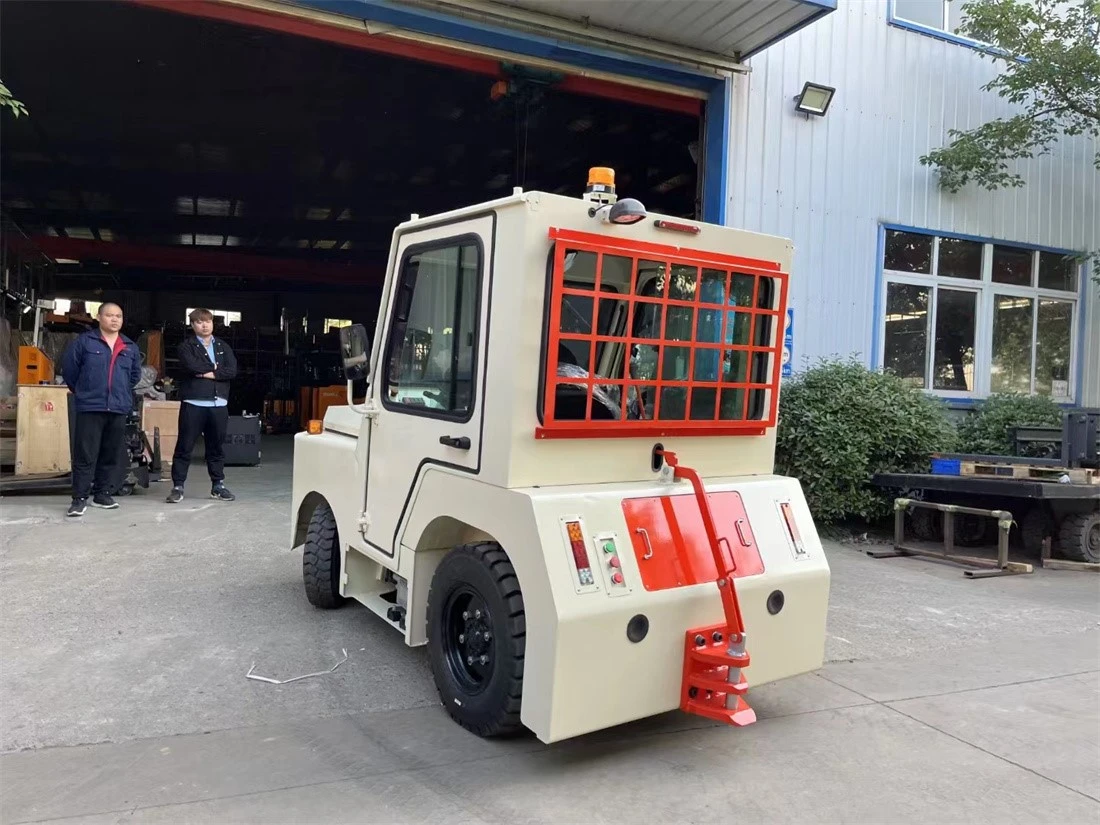

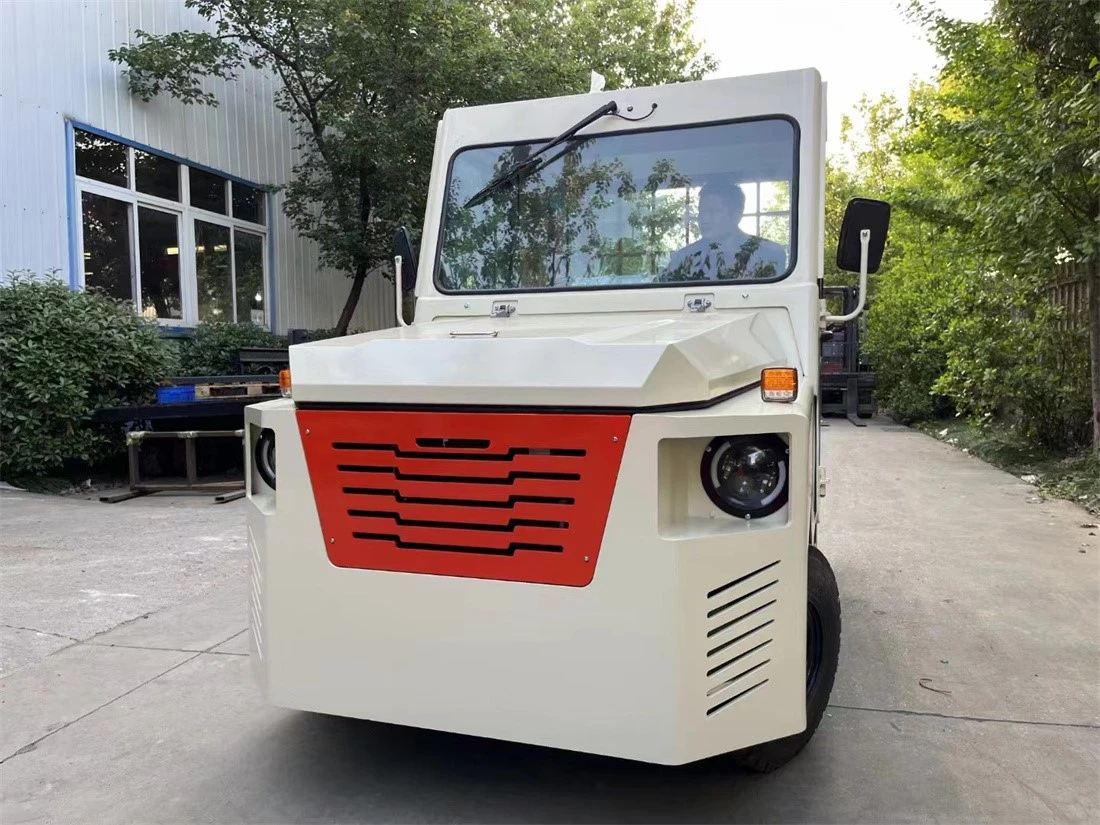

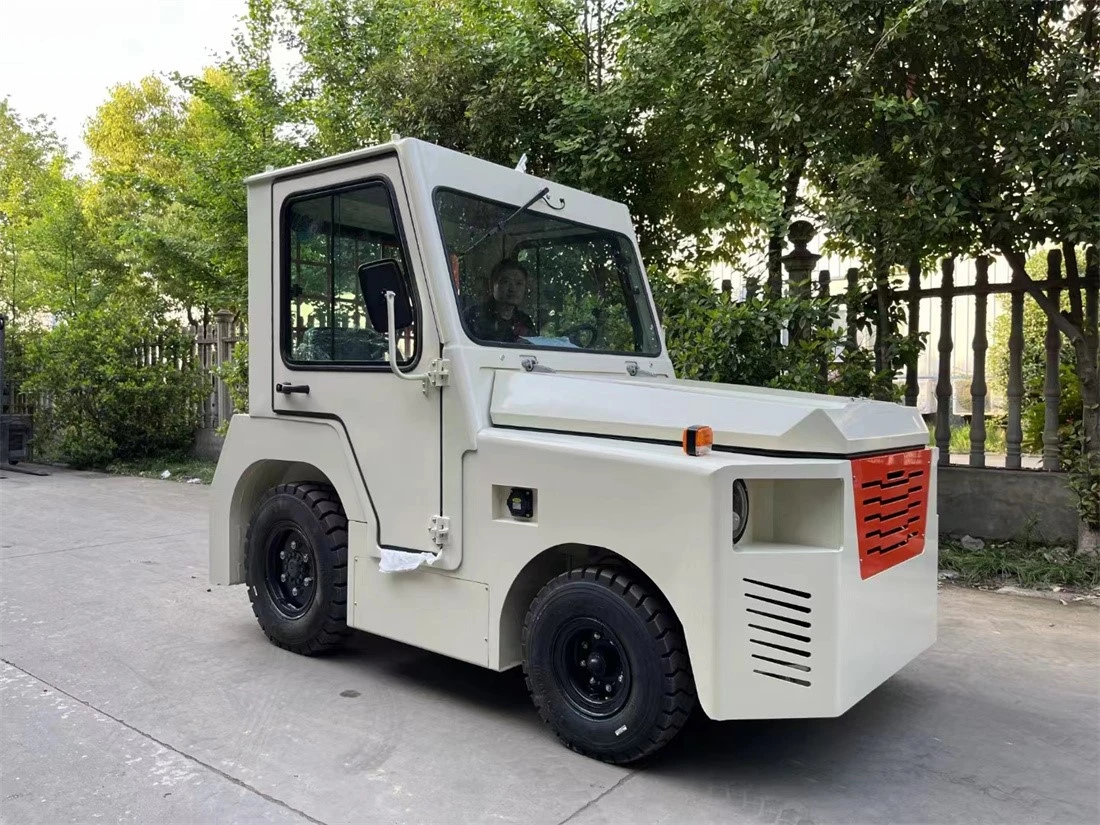

Electric Luggage Tractor

● Good flexibility;
● The traction mechanism has good visibility, and the driver can directly observe the traction seat when sitting on the seat;
● The structure of the transmission device is optimized to reduce transmission torque loss and noise, and increase the life of the transmission shaft;

Send Inquiry

Product Introduction

Model				EPQ100	EPQ120	EPQ120	EPQ150	EPQ200	EPQ250	EPQ300
Operation Type				Seated Type					Seated Type	Seated Type
Power				Lead Acid	Lead Acid	Lead Acid	Lead Acid	lithium iron phosphate battery	Lithium battery	Lithium battery
Characteristic	Maximum hook traction		KN	8.5	11.3	11.3	12.3	18.5	22.5	25.1
	Load traction		KN	2.2	2.3	2.56	3.8	8	12	15
	Maximum towing weigh	Trailer	Kg	10000	12000	12000	15000	20000	25000	30000
	Maximum travelling speed	advance Unladen/ Laden	Km/h	12/6.0	10.0/5	16.0/8	16.0/8	25	25	25
	Maximum travelling speed	retreat	Km/h	6	6	10	10	10	10	8
	Minimum turning radius		mm	2890	2890	2890	2890	2800	2800	2800
	Max. gradeability, Unladen		%	20	25	25	25	30	30	30
	Maximum braking distance	No trace mop hook	m	2.8	2.8	2.8	2.8	5.7	5.7	5.7
	Maximum braking distance	Towing rated weight	m	2.3	2.3	2.3	2.3	4.7	4.7	4.7
Dimensions	Overall length (Traction hook)		l1(mm)	2460	2460	2460	2460	3085	3085	3110
	Overall width		b1(mm)	1150	1150	1150	1150	1403	1403	1440
	Overall height (Cab,Alarm lamp)		h1(mm)	2111	2111	2111	2111	2270	2270	2175
	Front Wheel Base		b2(mm)	1000	1000	1000	1000	1220	1220	1240
	Rear Wheel Base		b3(mm)	985	985	985	985	1190	1190	1250
	Wheel base		Y(mm)	1450	1450	1450	1451	1600	1600	1650
	Towing height of towing peg up/down		h3(mm)	350/450	350/450	350/450	350/450	310/400	310/400	310/400
	Min.ground clearance		m2(mm)	100	100	100	100	165	165	180
Type	Wheel	Front Wheel		5.00-8	5.00-8	5.00-8	5.00-8	6.50-10PR	6.50-10PR	6.50-10PR
Type	Wheel	Rear Wheel		6.00-9	6.00-9	6.00-9	6.00-9	7.00-15PR	7.00-15PR	7.00-15PR
Weight	Weight (Cab)		Kg	1950	2050	2130	2230	5310	5310	5310
	Axle load (Unladen, Cab )	Front Axle							1820	1820
	Axle load (Unladen, Cab )	Rear Axle							3490	3490
Transmission	Rated speed		rpm					2065	2065	2065
	Rated power (Driver)		kW	8	9	9	12	18	23	25
	Rated Torque		N·m					106.5	106.5	106.5
	Rated power (Steering)		kW					2.5	2.5	2.5
	Transmission gear ratio							23.5	23.5	23.5
Battery	Voltage/ Capacity		V/Ah	48V/ 400Ah/ 450/ 480/ 540/ 585/ 630	48V/ 450Ah	80V/ 300Ah	80V/ 375Ah	80V/ 600Ah	80V/ 600Ah	80V/ 600Ah
Charger	Voltage/ Current		V/A				80V/40A		80V/80A	80V/80A
Steering	Hydraulic Power Steering			EPS				HPS
Brake	Type							Vacuum assisted braking system
	Service brake			Rear wheel drum brake				Rear wheel drum and front wheel clamp brake
	Park brake			Mechanical rear wheel braking				Mechanical rear wheel braking
The data is for reference only, and the details shall be subject to the actual vehicle.

PRODUCT FEATURES

● Good flexibility;

● The traction mechanism has good visibility, and the driver can directly observe the traction seat when sitting on the seat;

● The structure of the transmission device is optimized to reduce transmission torque loss and noise, and increase the life of the transmission shaft;

● Hydraulic tractor standard power distribution hydraulic commutation and intelligent shifting;

● The fuel tank is placed on the side, which makes it easy to add and discharge fuel.
