Tow Tractors Stand Type
|
Characteristic |
1.1 |
Model |
EPQ30A |
|
|
1.2 |
Power |
Electric |
||
|
1.3 |
Operation Type |
Standing Type |
||
|
1.4 |
Load Capacity |
Q(kg) |
3000 |
|
|
1.5 |
Load Traction |
C(N) |
600 |
|
|
1.6 |
Wheelbase |
Y(mm) |
967 |
|
|
Weight |
2.1 |
Self-weight With Battery |
kg |
550 |
|
2.2 |
Battery Weight |
kg |
180 |
|
|
Wheels, Chassis |
3.1 |
Wheel Type |
PU |
|
|
3.2 |
Front Wheel |
∅×w(mm) |
φ150X50 |
|
|
3.3 |
Rear Wheel |
∅×w(mm) |
φ230X75 |
|
|
Dimensions |
4.1 |
Vehicle Height |
h1(mm) |
1600 |
|
4.2 |
Traction Hook Height |
h3(mm) |
200-270 |
|
|
4.3 |
Vehicle Body Length |
l2(mm) |
1380 |
|
|
4.4 |
Vehicle Body Width |
b1(mm) |
850 |
|
|
4.6 |
Ground Clearance |
m2 |
40 |
|
|
4.7 |
Turning Radius |
Wa(mm) |
1160 |
|
|
Performance |
5.1 |
Driving Speed, Unladen/Laden |
km/h |
6.7/4 |
|
5.2 |
Max. gradeability, Unladen/Laden |
％ |
8/6 |
|
|
5.3 |
Max. traction, Laden |
N |
1800 |
|
|
5.4 |
Service Brake |
Electromagnetic |
||
|
Motor, Charger |
6.1 |
Drive Motor |
kw |
1.5 |
|
6.2 |
Battery |
Lead Acid |
||
|
6.3 |
Battery voltage/nominal capacity |
V/Ah |
24V210Ah |
|
|
6.4 |
Charger |
v/A |
24V30A |
|
|
Other |
7.1 |
Type of drive control |
AC |
|
|
7.2 |
Sound level at the driver's ear acc. to EN12053 |
dB(A) |
75 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
||||

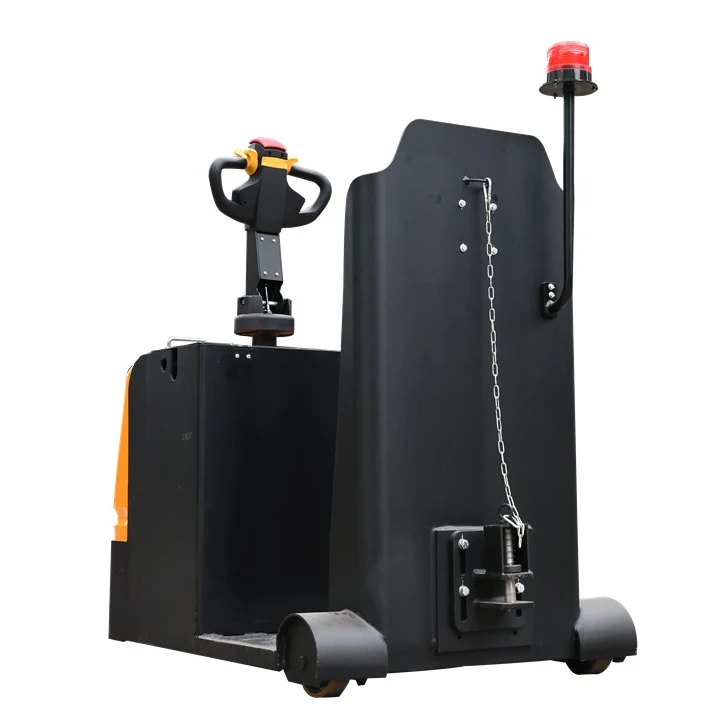

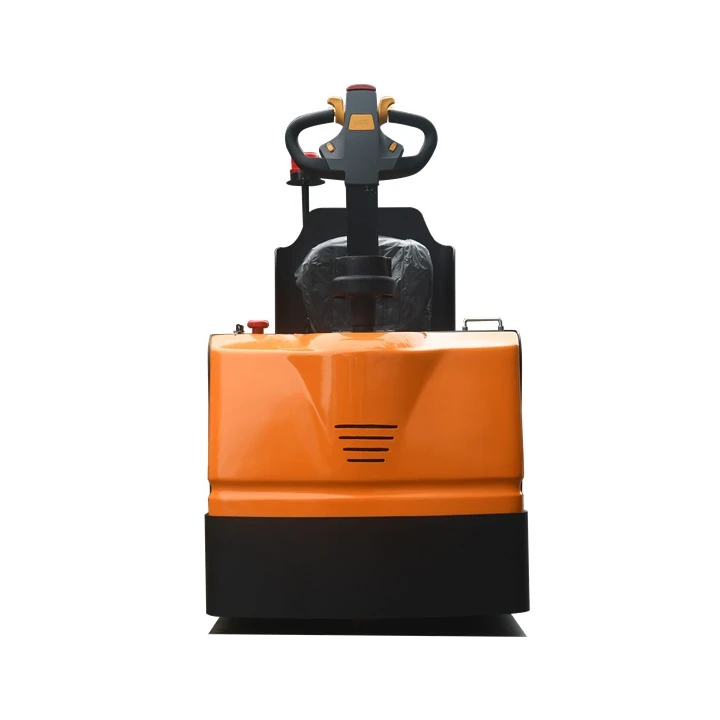

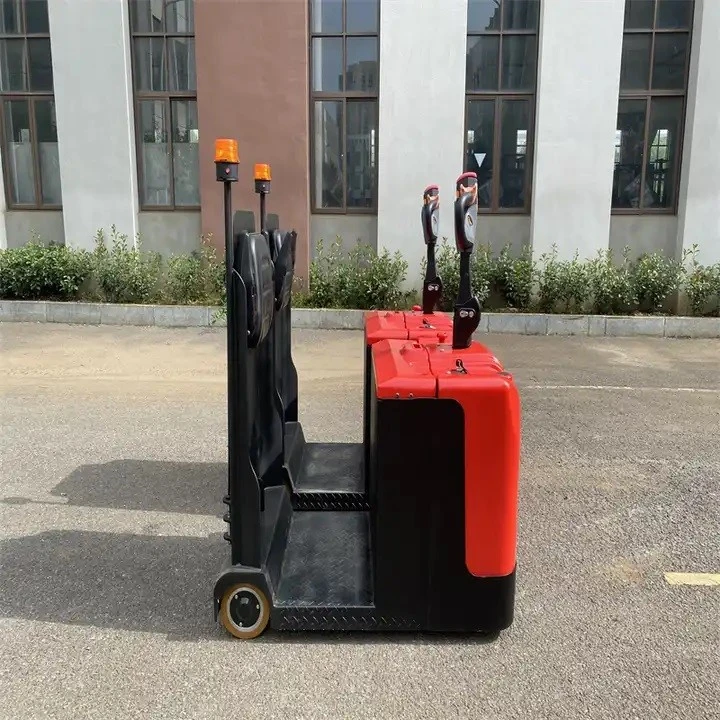

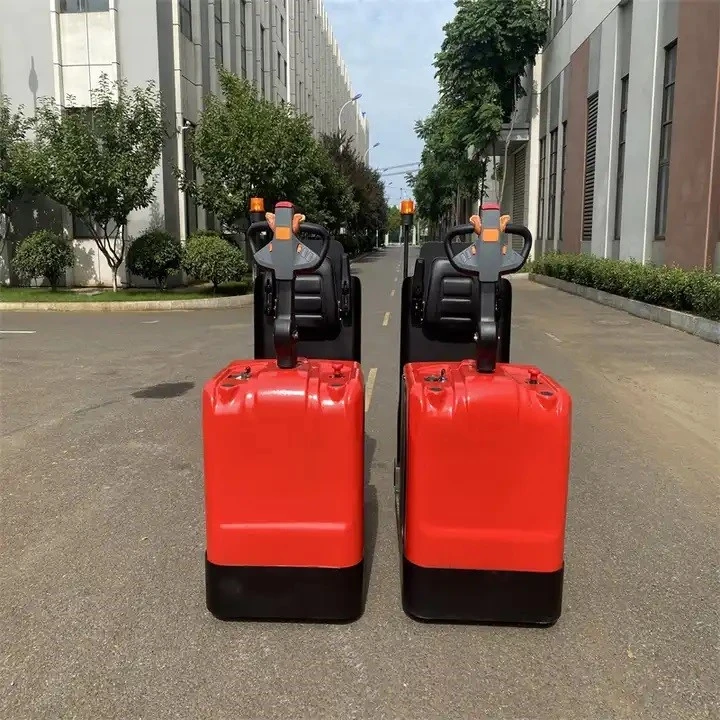

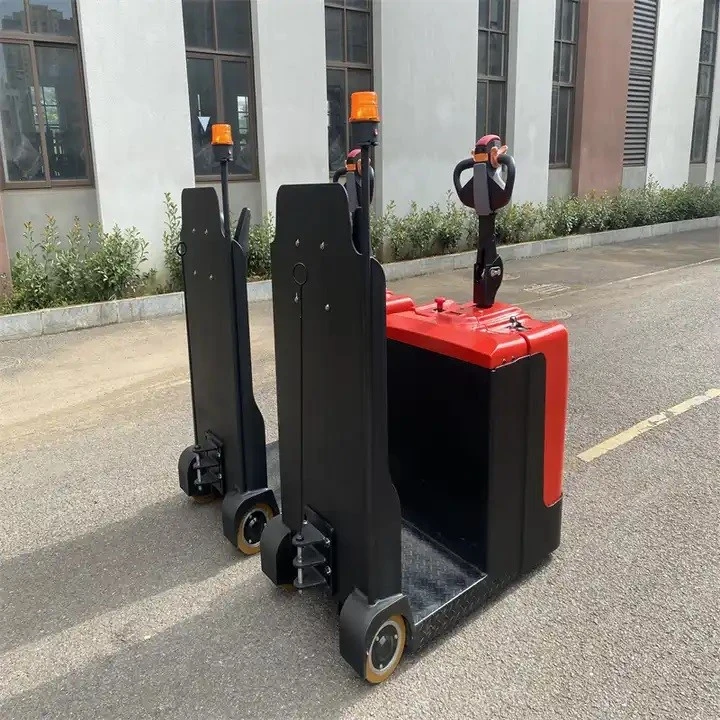

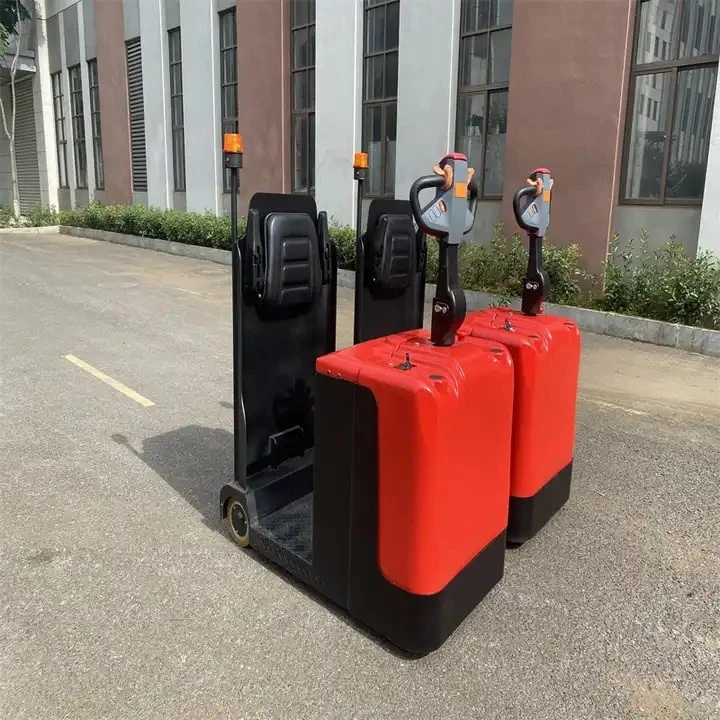

The stand-on type electric tow tractor EPQ30A is your choice to tow up to 3tons in the warehouse environment. With all key components made of steel, the EPQ30A is robust to withstand your everyday operation.
The innovative AC controller system offers strong power, accurate control and excellent performance with a travel speed of up to 7.0km/h.
The stand-on type electric tow tractor EPQ30A shows its strength on longer routes where the driver shall stand on the truck. It is mainly used in milkrun and multiple trolley transport.
Advantage
* Electronic power steering, portableand mute
* Bridge drive unit
* AC drive, brushless, motor maintenance free
* American CURTIS drive controller
* Electromagnetic and regenerative braking system
* Soft cushion with protective arm
* Simple operation and flexible steering
* Omron inductive microswitch
Safety:
* Drive stepless speed regulation
* Curve automatic deceleration device
* Controller multiple automatic protection system
* Emergency reverse device, emergency brake switch
* Travel warning lamp
