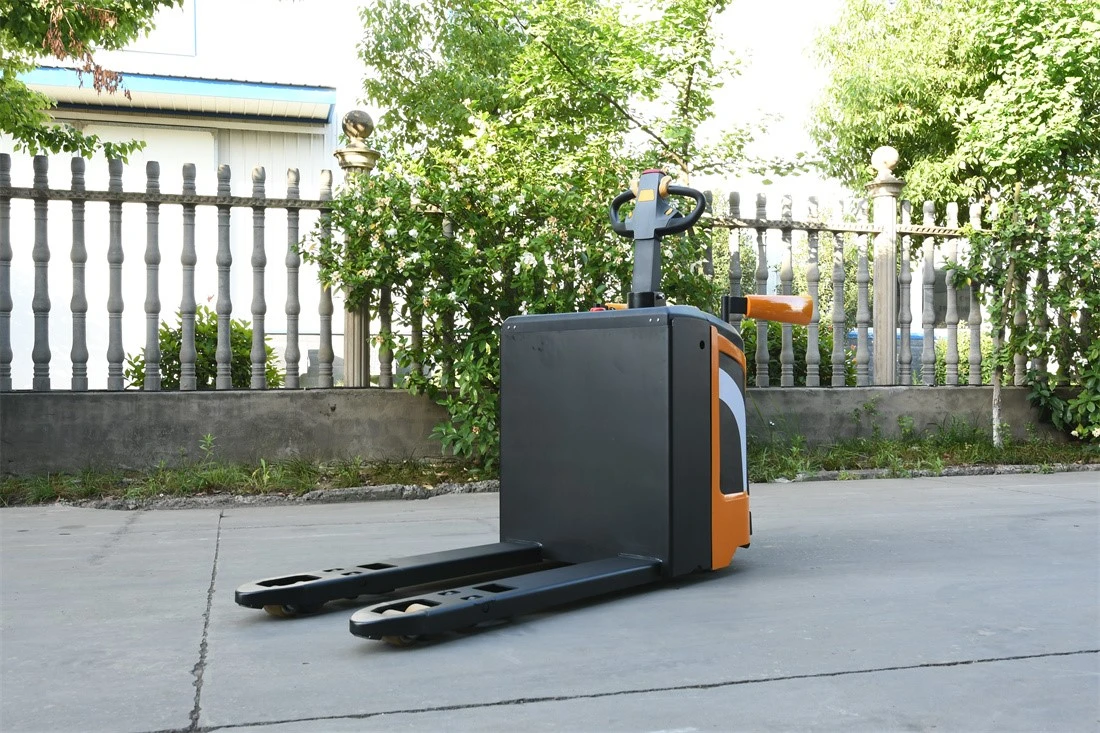

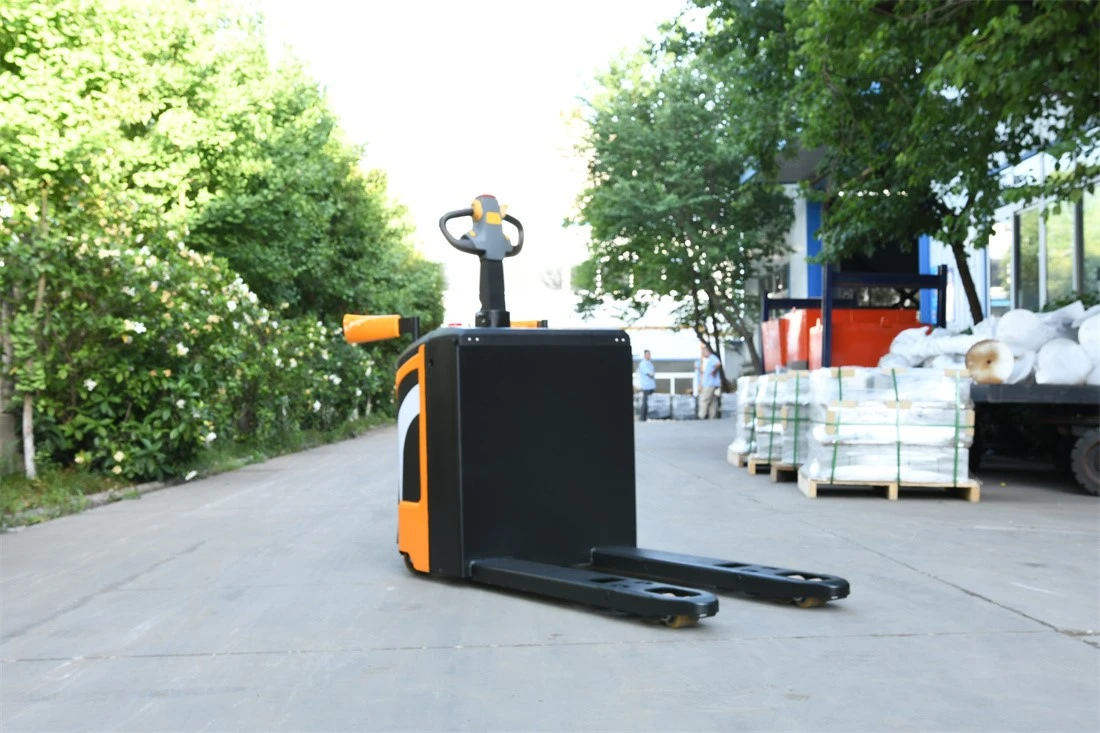

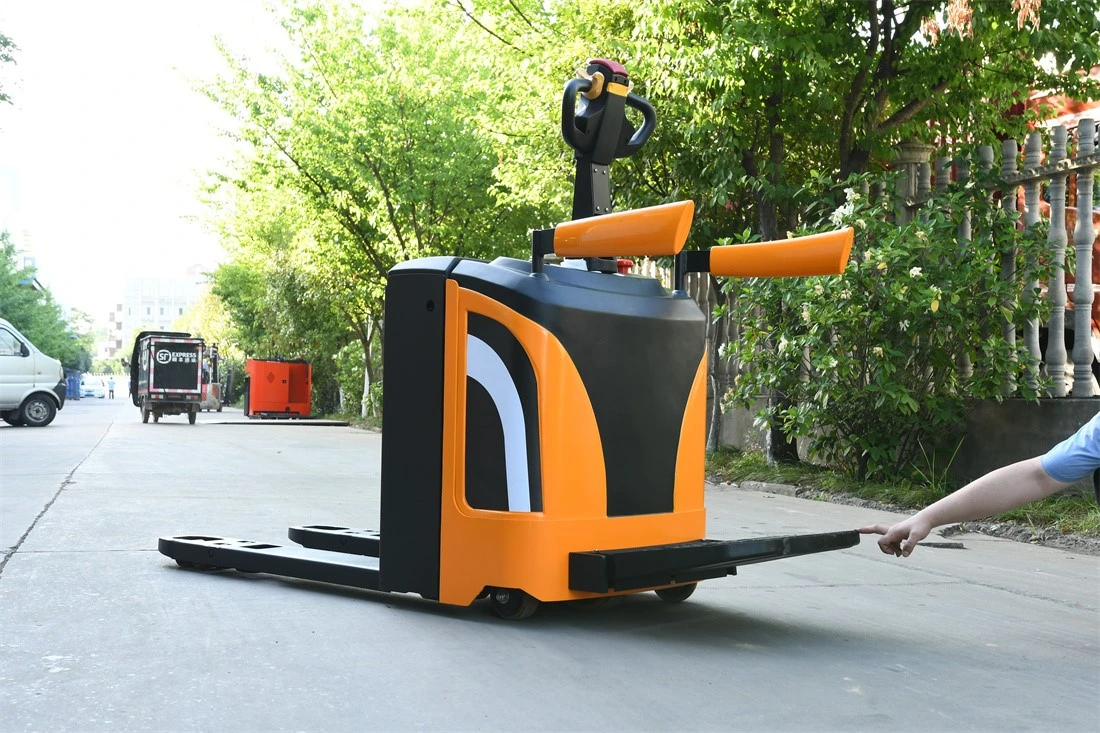

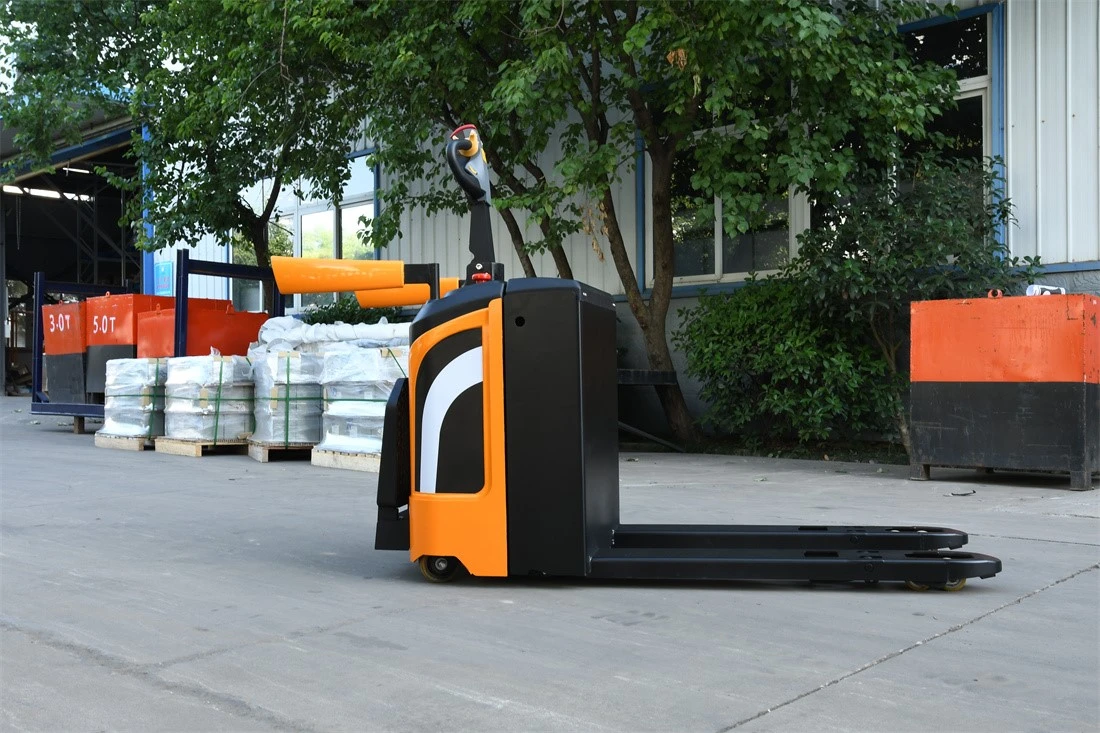

Stand Type Electric Pallet Truck
|
Characteristic |
1.1 |
Model |
CBD20Ⅲ |
CBD25Ⅲ |
CBD30Ⅲ |
CBD40Ⅲ |
CBD50Ⅲ |
|
|
1.2 |
Power |
Electric |
Electric |
Electric |
Electric |
Electric |
||
|
1.3 |
Operation Type |
Standing Type |
Standing Type |
Standing Type |
Standing Type |
Standing Type |
||
|
1.4 |
Steering Mode |
EPS |
EPS |
EPS |
EPS |
EPS |
||
|
1.5 |
Load Capacity |
Q(kg) |
2000 |
2500 |
3000 |
4000 |
5000 |
|
|
1.6 |
Load Center |
C(mm) |
600 |
600 |
600 |
600 |
600 |
|
|
1.7 |
Wheelbase |
Y(mm) |
1380 |
1380 |
1380 |
1495 |
1455 |
|
|
Weight |
2.1 |
Self-weight With Battery |
kg |
690 |
700 |
710 |
850 |
980 |
|
Wheels, Chassis |
3.1 |
Wheel Type |
PU |
PU |
PU |
PU |
PU |
|
|
3.2 |
Front Wheel |
∅×w(mm) |
φ80*80 |
φ80*80 |
φ80*80 |
φ80*80 |
φ80*110 |
|
|
3.3 |
Rear Wheel |
∅×w(mm) |
φ230*75 |
φ230*75 |
φ230*75 |
φ230*75 |
φ254*102 |
|
|
3.4 |
Balance Wheel |
∅×w(mm) |
φ125*50 |
φ125*50 |
φ125*50 |
φ125*50 |
φ150*50 |
|
|
Dimensions |
4.1 |
Max. lifting height |
H (mm) |
205 |
205 |
205 |
210 |
225 |
|
4.2 |
The height of the fork surface after the fork is lowered |
H1(mm) |
85 |
85 |
85 |
90 |
105 |
|
|
4.3 |
Fork Outer width |
S1 (mm) |
685/ 540 |
685/ 540 |
685/ 540 |
685 |
720 |
|
|
4.4 |
Vehicle Body length (Pedal Folded/ Unfold) |
L (mm) |
1825/ 2240 |
1825/ 2240 |
1825/ 2240 |
1950/ 2365 |
1950/ 2365 |
|
|
4.5 |
Vehicle Body Width |
S(mm) |
760 |
760 |
760 |
850 |
850 |
|
|
4.6 |
Fork Size |
s/ e/ l(mm) |
55/ 175/ 1150 |
55/ 175/ 1150 |
55/ 175/ 1150 |
60/ 180/ 1200 |
70/ 215/ 1200 |
|
|
4.7 |
Aisle Width, pallet 1000×1200 (1000 placed across forks)(Pedal Folded/ Unfold) |
Ast(mm) |
2220/ 2620 |
2220/ 2620 |
2220/ 2620 |
2520/ 2925 |
2520/ 2925 |
|
|
4.8 |
Load distance,centre of drive axle to fork |
X (mm) |
970 |
970 |
970 |
1015 |
1015 |
|
|
4.9 |
Min. turning radius |
105 |
1670/ 2070 |
1670/ 2070 |
1670/ 2070 |
1785 |
1785 |
|
|
Performance |
5.1 |
Driving speed, Unladen/ Laden |
km/ h |
6/ 5.5 |
6/ 5.5 |
6/ 5 |
5/ 4 |
5/ 4 |
|
5.2 |
Lifting speed, Unladen/ Laden |
m/ s |
0.043/ 0.040 |
0.043/ 0.040 |
0.043/ 0.040 |
0.045/ 0.043 |
0.042/ 0.04 |
|
|
5.3 |
Lowering speed, Unladen/ Laden |
m/ s |
0.035/ 0.445 |
0.035/ 0.445 |
0.035/ 0.445 |
0.035/ 0.048 |
0.35/ 0.045 |
|
|
5.4 |
Max. gradeability, Unladen/ Laden |
％ |
10/ 8 |
10/ 8 |
10/ 6 |
10/ 6 |
8/ 5 |
|
|
5.5 |
Service Brake |
Electromagnetic |
Electromagnetic |
Electromagnetic |
Electromagnetic |
Electromagnetic |
||
|
Motor, |
6.1 |
Drive Motor |
KW |
1.5 |
1.5 |
1.5 |
2.5 |
3 |
|
6.2 |
Lift Motor |
KW |
0.8 |
0.8 |
0.8 |
2.2 |
3 |
|
|
6.3 |
Battery |
Lead Acid |
Lead Acid |
Lead Acid |
Lead Acid |
Lead Acid |
||
|
6.4 |
Battery voltage/ nominal capacity |
V/ Ah |
24V210Ah |
24V210Ah |
24V210Ah |
24V270Ah |
24V300Ah |
|
|
6.5 |
Charger |
V/ Ah |
24V/ 30Ah |
24V/ 30Ah |
24V/ 30Ah |
24V/ 40Ah |
24V/ 40Ah |
|
|
Other |
7.1 |
Type of drive control |
AC |
AC |
AC |
AC |
AC |
|
|
7.2 |
Sound level at the driver's ear acc. to EN12053 |
dB (A) |
75 |
75 |
75 |
75 |
75 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
||||||||

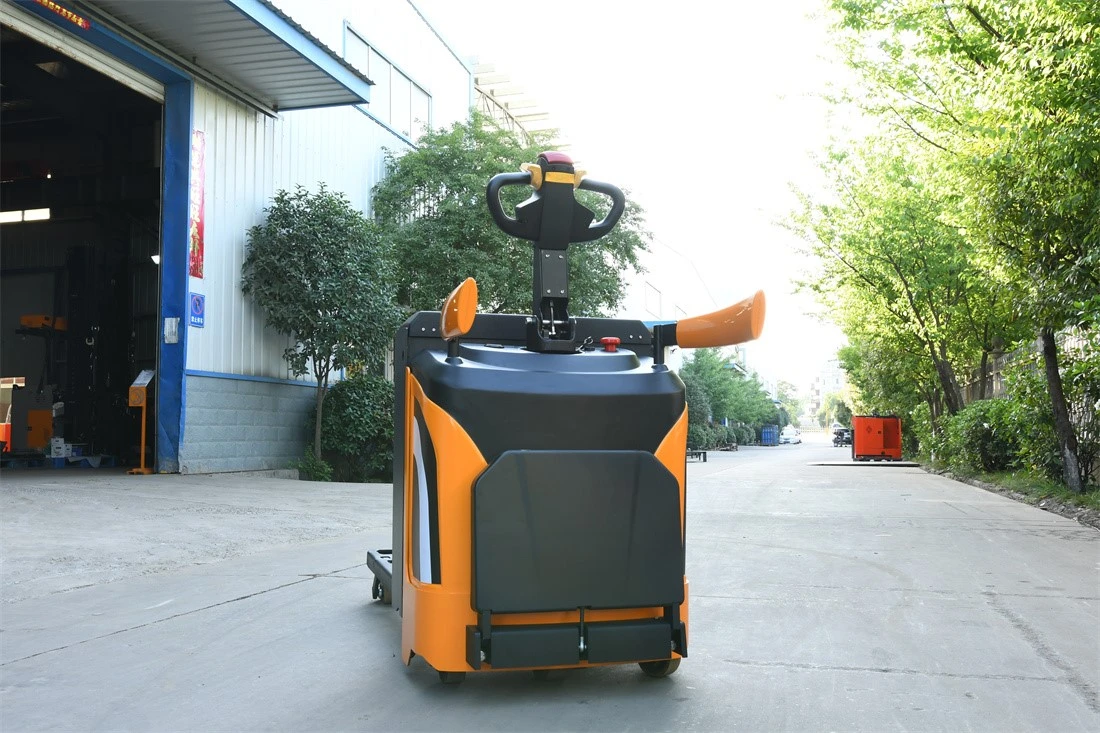

The battery side access is convenient for multi-shift operations. Side battery extraction ensures time saving, quick and easy battery replacement with an appropriate trolley.
The built-in charger option eases battery charging for light industrial use (with the exception of multi-shift operations where battery replacement is needed).
Reliable quality AMP waterproof connectors and electrical components ensure all wires. The cable is safe and reliable, greatly reducing the incidence of faults.
