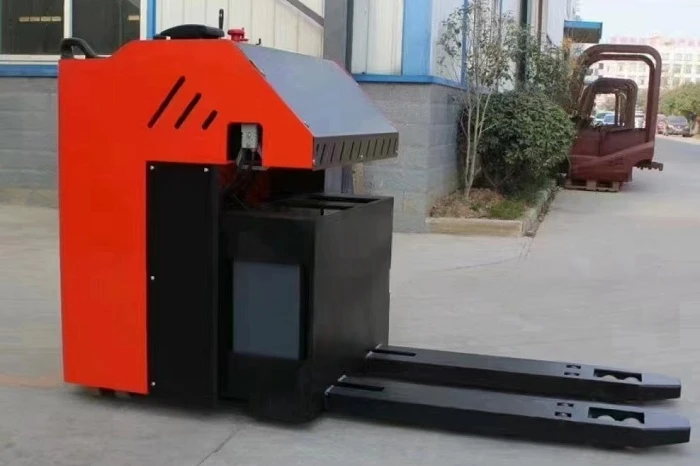

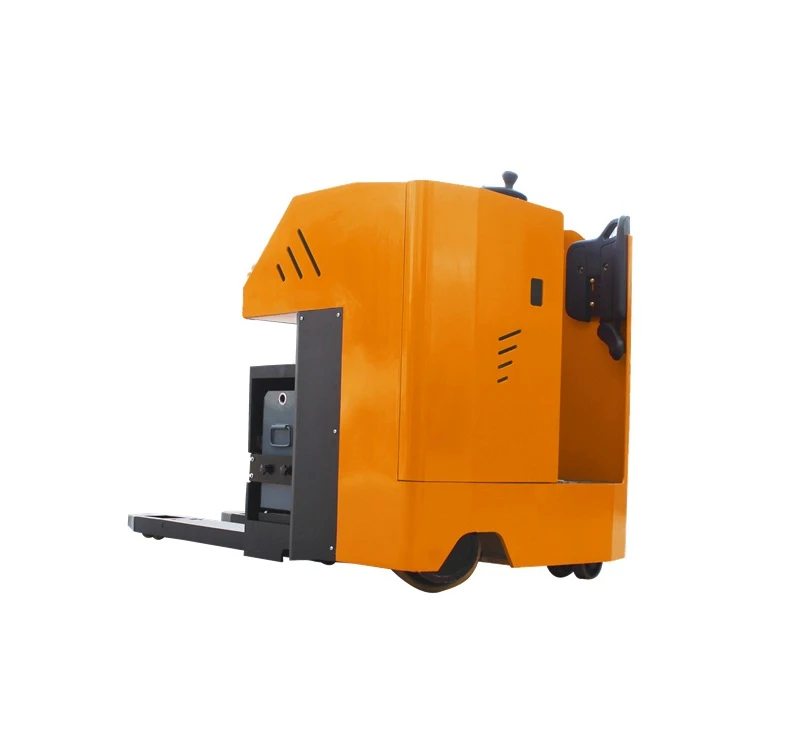

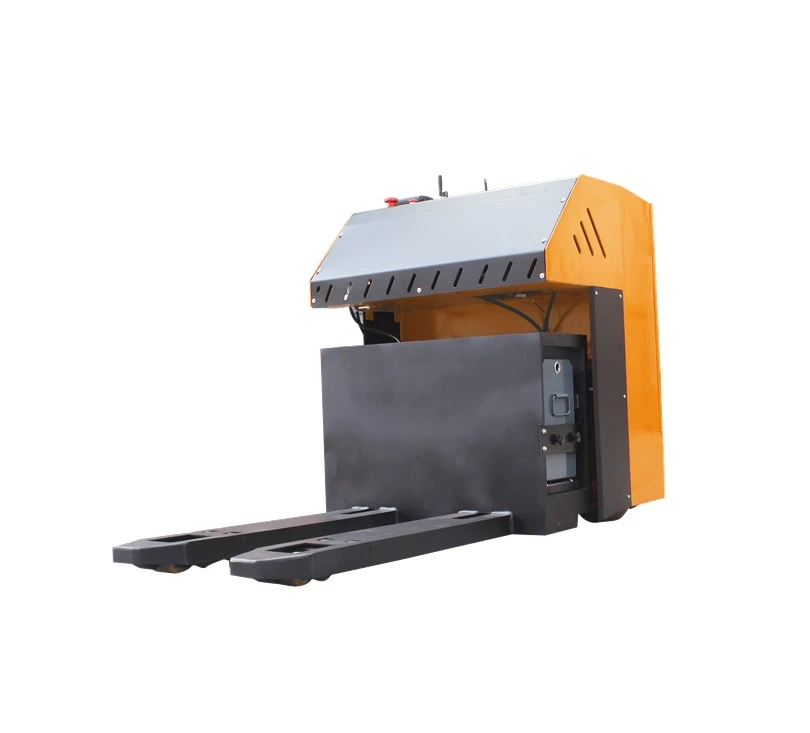

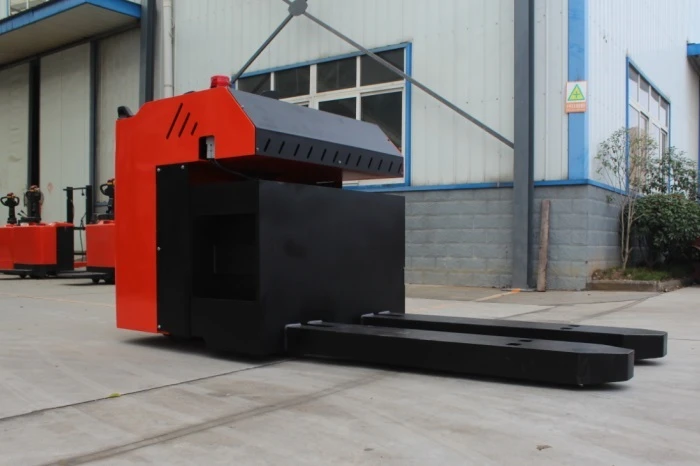

Seated Type Electric Pallet Truck
● Electric power steering system(EPS).
● The guide wheel on fork head makes convenient pallet work.
● High level configuration of motor power and battery capacity, max travel speed under laden arrives 7.5-7.8km/h.
|

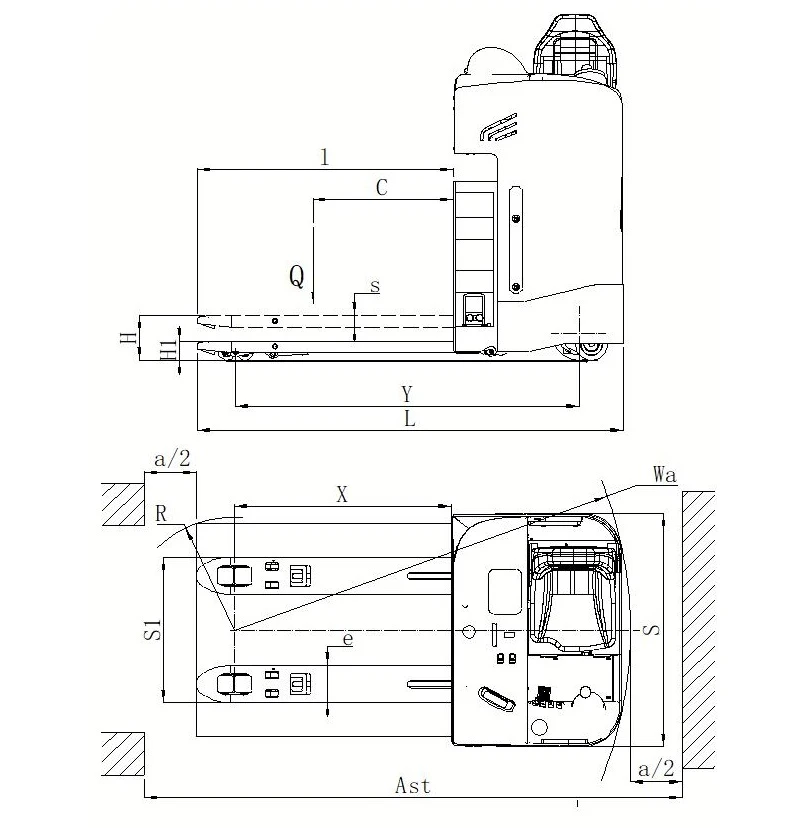

Characteristic |
1.1 |
Model |
CBD20 |
CBD30 |
CBD30-F2142 |
|
|
1.2 |
Power |
Electric |
Electric |
Electric |
||
|
1.3 |
Operation Type |
Seated Type |
Seated Type |
Seated Type |
||
|
1.4 |
Steering Mode |
EPS |
EPS |
EPS |
||
|
1.5 |
Load Capacity |
Q(kg) |
2000 |
3000 |
3000 |
|
|
1.6 |
Load Center |
C(mm) |
600 |
600 |
600 |
|
|
1.7 |
Wheelbase |
Y(mm) |
1615 |
1615 |
2715 |
|
|
Weight |
2.1 |
Self-weight With Battery |
kg |
|||
|
Wheels, |
3.1 |
Wheel Type |
PU |
PU |
PU |
|
|
3.2 |
Front Wheel |
∅×w(mm) |
φ80*80 |
φ80*80 |
φ80*80 |
|
|
3.3 |
Rear Wheel |
∅×w(mm) |
φ230*75 |
φ254*112 |
φ254*112 |
|
|
3.4 |
Balance Wheel |
∅×w(mm) |
φ150*50 |
φ150*50 |
φ150*50 |
|
|
Dimensions |
4.1 |
Max. Lifting height |
H (mm) |
205 |
205 |
205 |
|
4.2 |
The height of the fork surface after the fork is lowered |
H1(mm) |
85 |
85 |
85 |
|
|
4.3 |
Fork Outer Width |
S1(mm) |
685 |
685 |
685 |
|
|
4.4 |
Vehicle Body Length (Pedal Folded/Unfold) |
L (mm) |
2005 |
2005 |
3105 |
|
|
4.5 |
Vehicle Body Width |
S(mm) |
1100 |
1100 |
1100 |
|
|
4.6 |
Fork Size |
s/e/l(mm) |
55/175/1200 |
55/175/1200 |
55/175/2300 |
|
|
4.7 |
Aisle Width, pallet 1000×1200 (1000 placed across forks) |
Ast(mm) |
2600 |
2600 |
||
|
4.8 |
Load distance, centre of drive axle to fork |
X (mm) |
1020 |
1020 |
2120 |
|
|
4.9 |
Min. turning radius |
Wa(mm) |
1865 |
1865 |
2950 |
|
|
Performance |
5.1 |
Driving Speed, Unladen/Laden |
km/h |
6/5 |
6/5 |
6/5 |
|
5.2 |
Lifting Speed, Unladen/Laden |
m/s |
0.045/0.040 |
0.043/0.040 |
0.043/0.040 |
|
|
5.3 |
Lowering Speed, Unladen/Laden |
m/s |
0.035/0.043 |
0.035/0.445 |
0.035/0.445 |
|
|
5.4 |
Max. gradeability, Unladen/Laden |
％ |
10/6 |
10/6 |
8/5 |
|
|
5.5 |
Service Brake |
Electromagnetic |
Electromagnetic |
Electromagnetic |
||
|
Motor, Charger |
6.1 |
Drive Motor |
KW |
2.5 |
3 |
3 |
|
6.2 |
Lift Motor |
KW |
2.2 |
3 |
3 |
|
|
6.3 |
Battery |
Lead Acid |
Lead Acid |
Lead Acid |
||
|
6.4 |
Battery voltage/nominal capacity |
V/Ah |
24V300Ah |
24V300Ah |
24V300Ah |
|
|
6.5 |
Charger |
V/Ah |
24V/40Ah |
24V/40Ah |
24V/40Ah |
|
|
Other |
7.1 |
Type of drive control |
AC |
AC |
AC |
|
|
7.2 |
Sound level at the driver's ear acc. to EN12053 |
dB(A) |
75 |
75 |
75 |
|
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
||||||
Advantages:
● Advanced AC control with reliable performance is easy to maintain.
● Electric power steering system(EPS).
● The guide wheel on fork head makes convenient pallet work.
● High level configuration of motor power and battery capacity, max travel speed under laden arrives 7.5-7.8km/h.
● With good looking and small turning radius.
● The key components is set compact and reasonable, which is convenient to maintenance.
