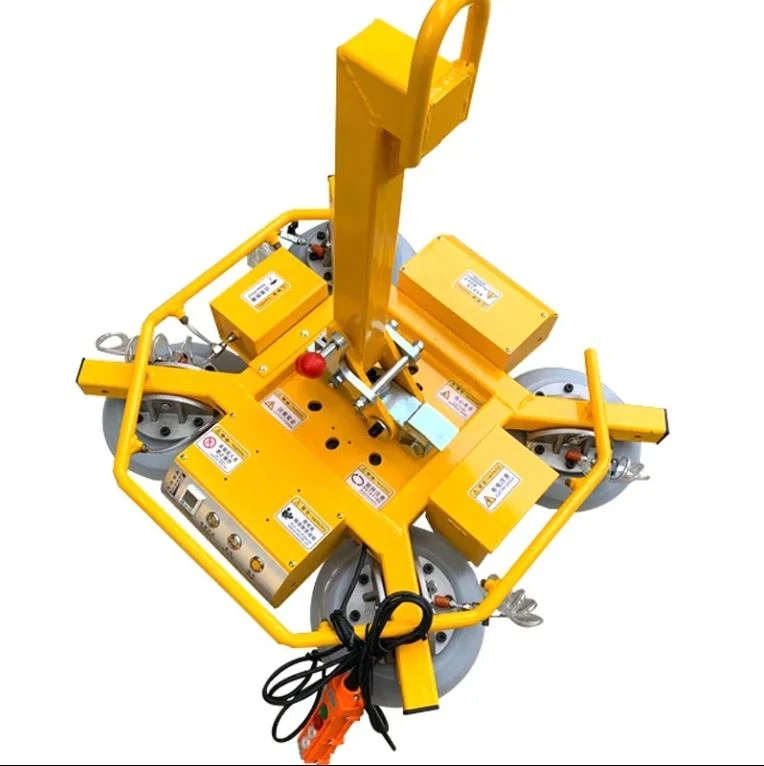

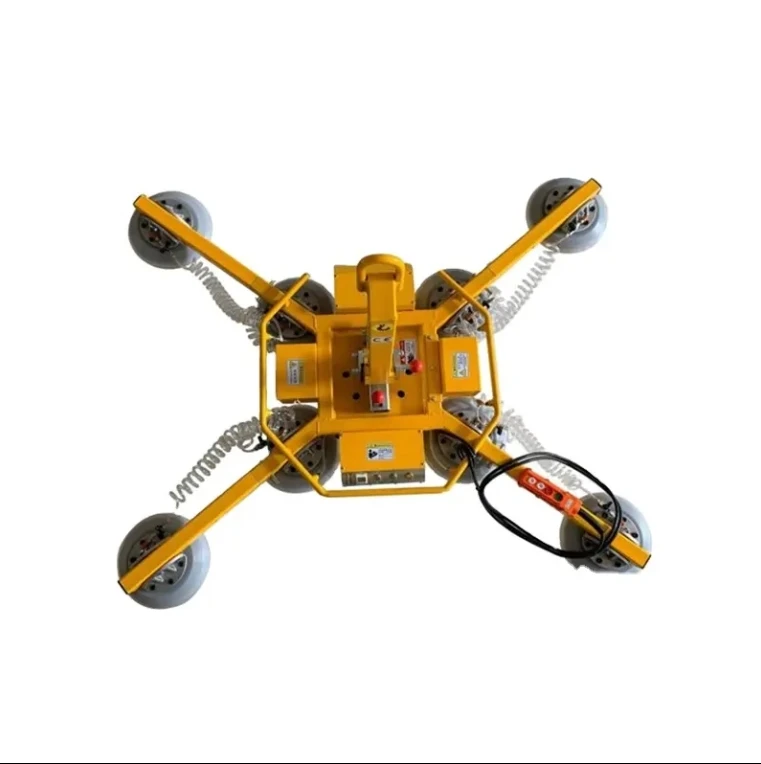

Battery Vacuum Lifting Device With CE

No matter X shape,H shape,one line shape or big suction cup type vacuum lifter,they are widely used for transporting and installing glass windows or doors outdoor.The worker use teleshandler,forklift or crane truck to hang it up. It can lift glass,metal sheet,sandwich panel,marbles and so on.We can also customize the fixture as per your forklifts.Make it workable for forklift vacuum lifter.

1.Sealed cover for components protection,safe and reliable. Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .

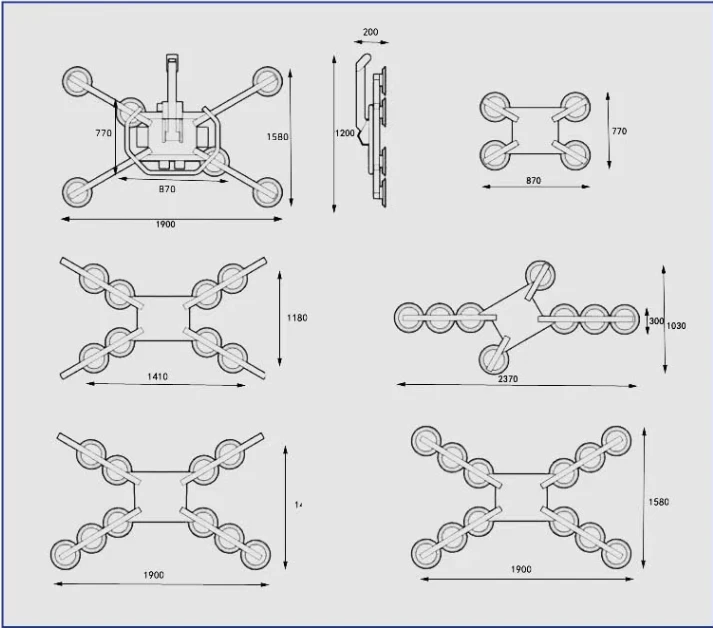

2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keeping function can extend the handling time and make the use safer.
8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
