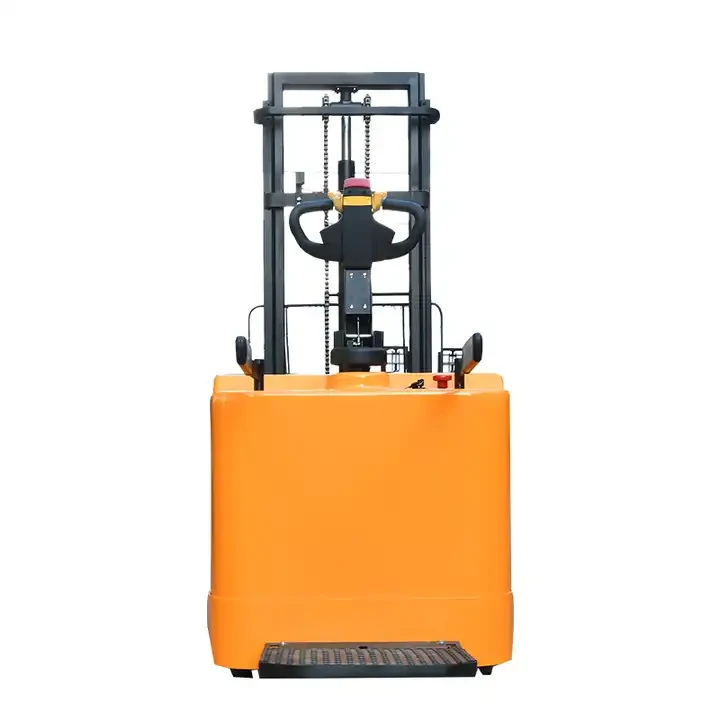

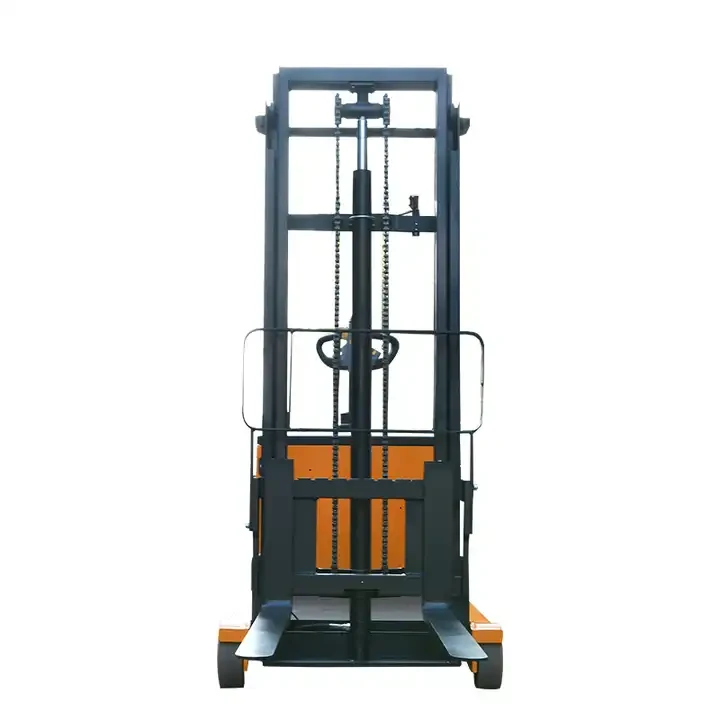

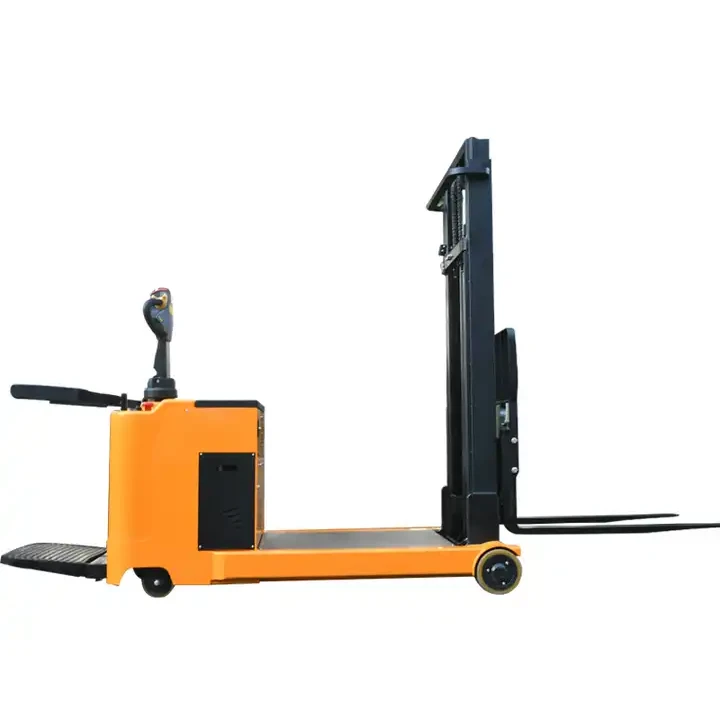

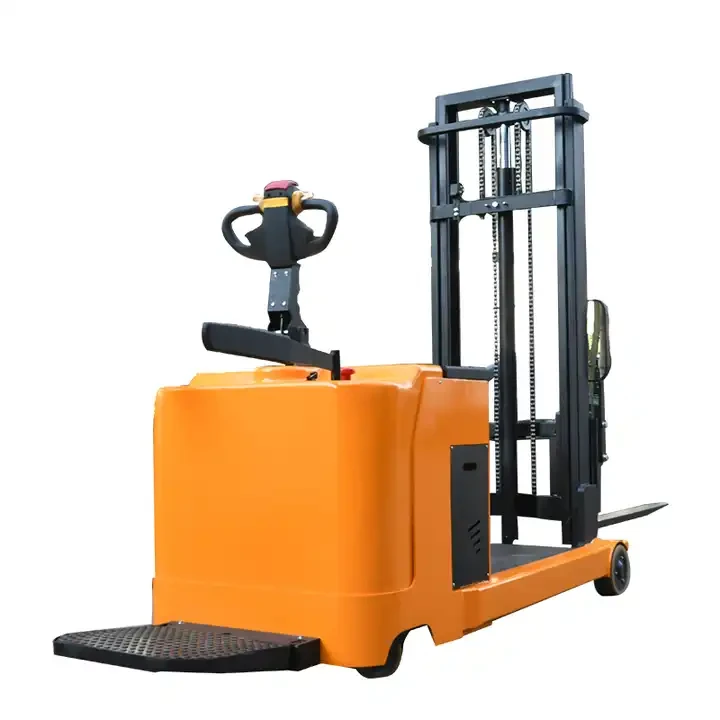

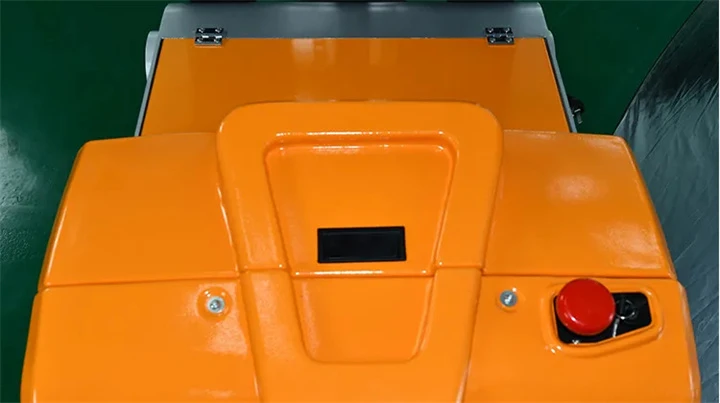

Stand Counterbalanced Type Electric Pallet Stacker

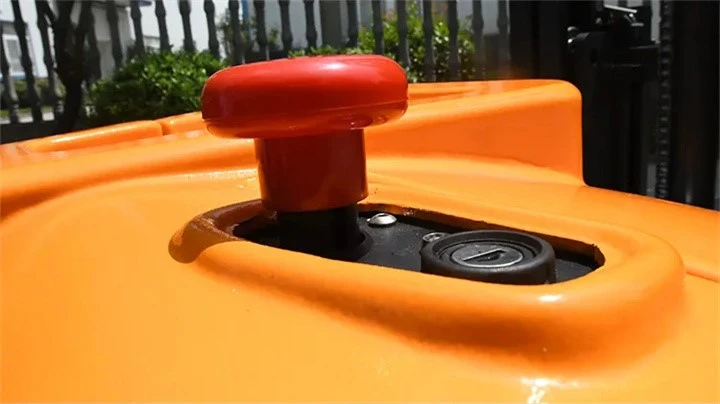

● Branded controller offers multi automatic protection with higher level function safety.
● Branded vertical gearbox, multi-functional solution and flexible construction module system, optimized gear meshing technology to reduce operating noise,provide high performance and efficiency.
● Adjustable fork spread suits different kinds of pallet, easy access to the pallets.
● Branded controller offers multi automatic protection with higher level function safety.
● Branded vertical gearbox, multi-functional solution and flexible construction module system, optimized gear meshing technology to reduce operating noise, provide high performance and efficiency.
|
Features |
1.1 |
Model |
CPDB10-25 |
CPDB15-25 |
CPDB20-25 |
|
|
1.2 |
Power Type |
Electric |
Electric |
Electric |
||
|
1.3 |
Operation mode |
Stand-on |
Stand-on |
Stand-on |
||
|
1.4 |
Load Capacity |
Q(kg) |
1000 |
1500 |
2000 |
|
|
1.5 |
Load Center |
C(mm) |
500 |
500 |
500 |
|
|
1.6 |
Bearing distance |
X(mm) |
129 |
129 |
129 |
|
|
1.7 |
wheelbase |
Y(mm) |
1335 |
1435 |
1635 |
|
|
Weight |
2.1 |
Total Weigh |
kg |
1700 |
1775 |
1890 |
|
Wheels, chassis |
3.1 |
Wheel Type |
PU |
PU |
PU |
|
|
3.2 |
Driving Wheel |
∅×w(mm) |
φ230*75 |
φ230*75 |
φ230*75 |
|
|
3.3 |
Front Wheel |
∅×w(mm) |
φ210*85 |
φ210*85 |
φ210*85 |
|
|
3.4 |
Rear Wheel |
∅×w(mm) |
φ150*50 |
φ150*50 |
φ150*50 |
|
|
3.5 |
Wheel base(Front) |
b10(mm) |
898 |
898 |
898 |
|
|
3.6 |
Wheel base(Rear) |
b11(mm) |
736 |
736 |
736 |
|
|
Dimension |
4.1 |
Closing height of the mast |
h1(mm) |
1845 |
1845 |
1845 |
|
4.2 |
Lifting height |
h3(mm) |
2500 |
2500 |
2500 |
|
|
4.3 |
Maximum height of mast during lifting |
h4(mm) |
3470 |
3470 |
3470 |
|
|
4.4 |
Body length (pedals tucked away, without fork) |
l2(mm) |
1757 |
1857 |
2057 |
|
|
4.9 |
Overall length (pedal retraction, fork included) |
L1(mm) |
2834 |
2934 |
3134 |
|
|
4.10 |
Body width |
b1(mm) |
983 |
983 |
983 |
|
|
4.11 |
Fork size |
s/ e/ l(mm) |
35/ 100/ 1070 |
35/ 100/ 1070 |
40/ 122/ 1070 |
|
|
4.12 |
Fork adjustment dimension (outside distance) |
b5(mm) |
210-680 |
210-680 |
210-705 |
|
|
4.13 |
Minimum ground clearance (wheelbase center) |
m2(mm) |
70 |
70 |
70 |
|
|
4.14 |
Stacking channel width, pallet 1000×1000 (1000 cross fork placement) (pedal retraction/ expansion) |
Ast(mm) |
3131/ 3534 |
3231/ 3634 |
3431/ 3834 |
|
|
4.16 |
Minimum turning radius (pedal retraction / expansion) |
Wa(mm) |
1652/ 2055 |
1752/ 2155 |
1952/ 2355 |
|
|
Property |
5.1 |
Travel speed, no load/ full load |
km/ h |
5/ 4 |
5/ 4 |
5/ 4 |
|
5.2 |
Lifting speed, no load/ full load |
m/ s |
0.112/ 0.095 |
0.112/ 0.085 |
0.090/ 0.070 |
|
|
5.3 |
Descent speed, no load/ full load |
m/ s |
0.094/ 0.110 |
0.094/ 0.115 |
0.096/ 0.123 |
|
|
5.8 |
Maximum climbing capacity, no load/ full load |
％ |
8/ 5 |
8/ 5 |
6/ 4 |
|
|
5.1 |
Service brake |
Electromagnetic braking |
Electromagnetic braking |
Electromagnetic braking |
||
|
Electric machine |
6.1 |
Drive motor power |
kw |
1.5 |
1.5 |
2.5 |
|
6.2 |
Boost motor power |
kw |
2.2 |
2.2 |
2.2 |
|
|
6.3 |
Battery type |
Lead-acid battery |
Lead-acid battery |
Lead-acid battery |
||
|
6.4 |
Battery voltage/ capacitance |
V/ Ah |
24V210Ah |
24V210Ah |
24V210Ah |
|
|
6.5 |
Charger |
V/ A |
24V30A |
24V/ 30A |
24V/ 30A |
|
|
Other |
8.1 |
Drive control mode |
AC |
AC |
AC |
|
|
8.4 |
Driver's ear noise level according to EN12053 |
dB(A) |
75 |
75 |
