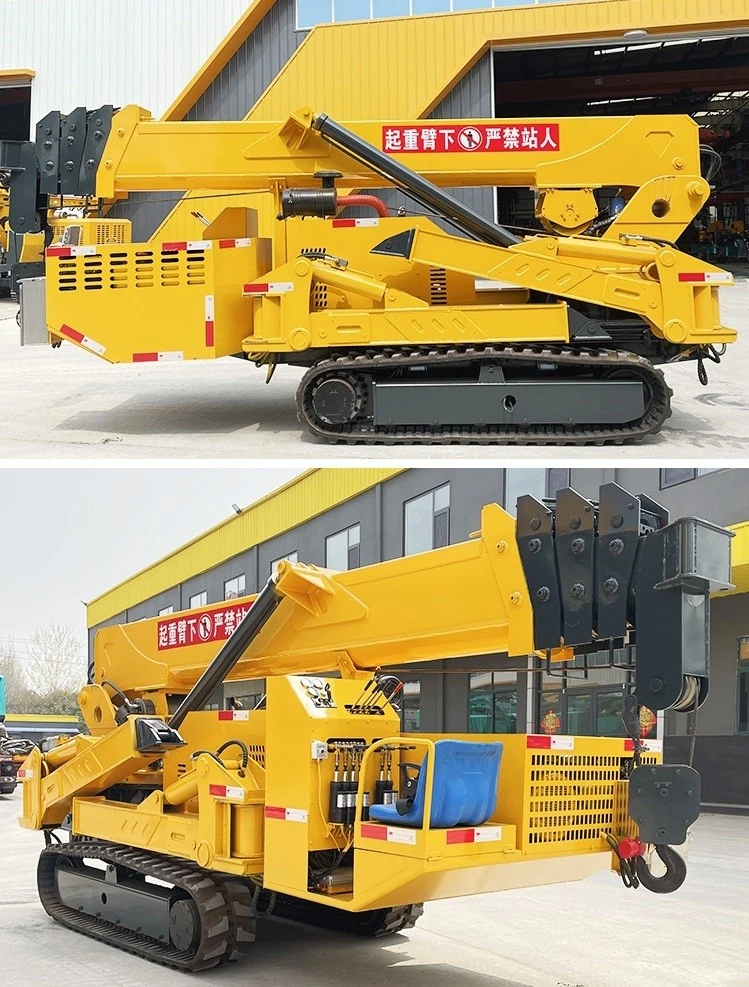

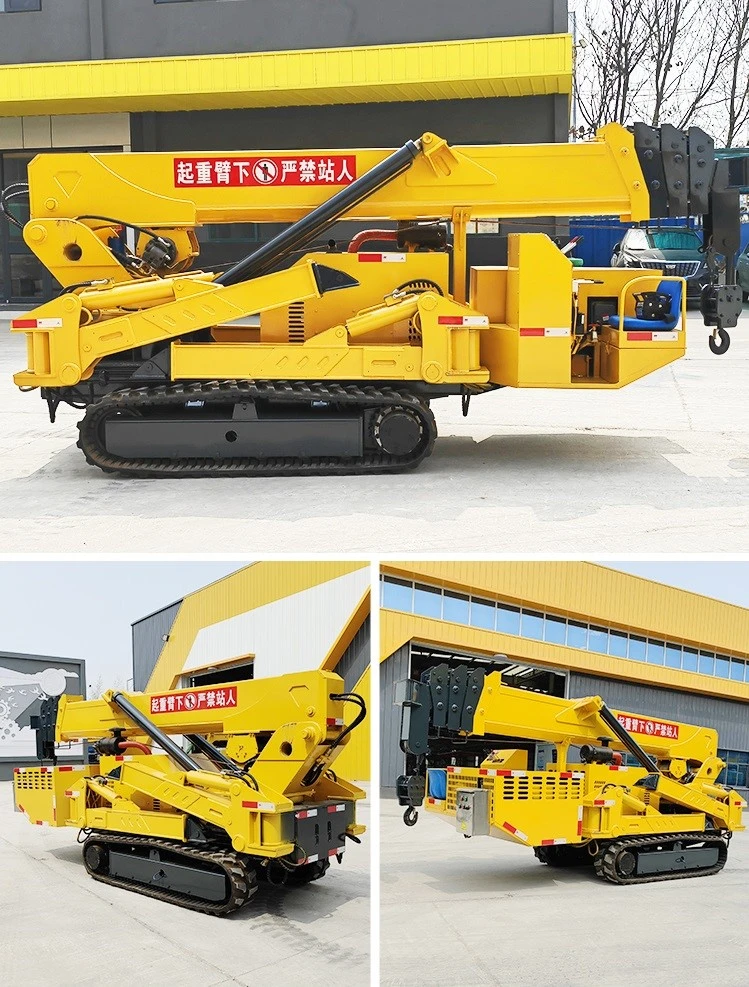

5ton Spider Crane
5ton crawler spider crane is widely used in the maintenance and installation of electrical equipment in substation, maintenance and installation of mechanical chemical workshop equipment, glass curtain wall, etc.
At present, has been the state grid and southern grid widely use, have been used for the Shanghai world expo, general motors, lanzhou petrochemical, techsport petrochemical, wuhan day ling and Beijing netcom building construction engineering, etc., products have been exported to USA, Australia, Canada, Britain, Brazil, Vietnam, united Arab emirates and other countries.
The maximum folding crane product has the function of supporting leg safety. With a large operating radius, you can perform a variety of lifting operations, which may satisfy your needs.

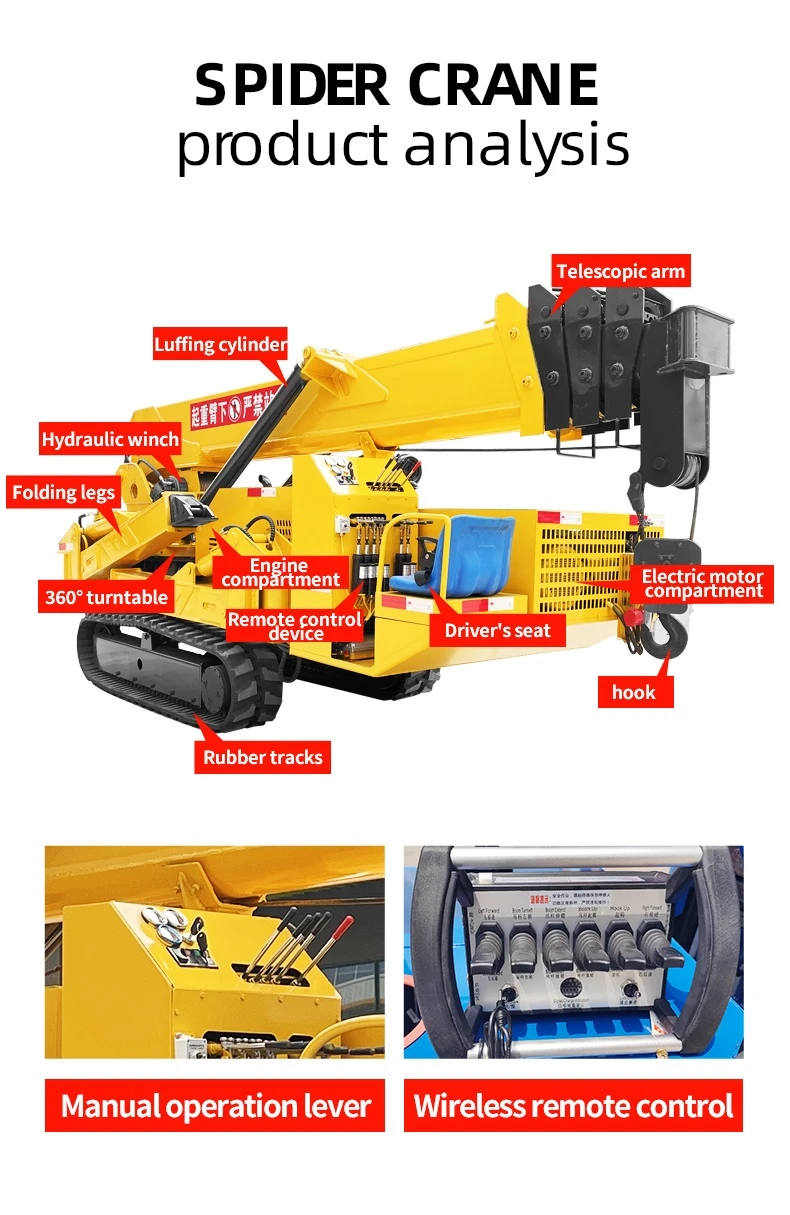

Product features of 5ton crawler spider crane:
* Proportional remote control and proportional valve (optional)
* Moment limiter (optional)

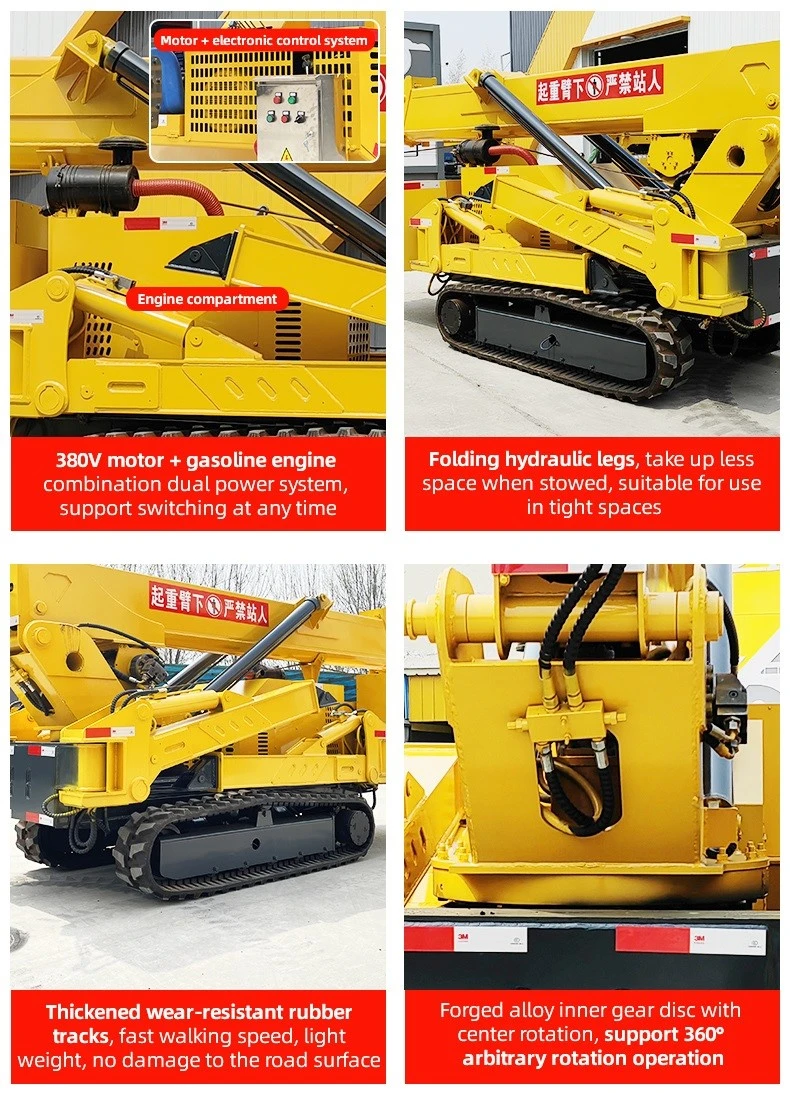

* 380 V power supply
* Outrigger by remote control (optional)

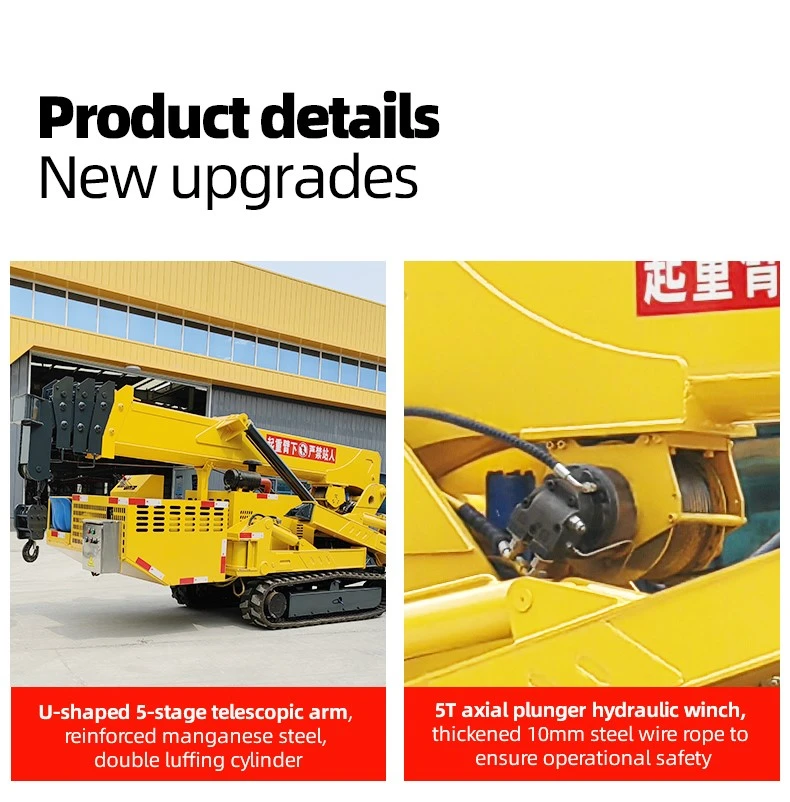

* Five section boom and double connecting cylinder
* 1.2 m height of body
* U boom
* Take the elevator
* One key for the level of body (optional)
* Interlock system
* Travel available by forklift truck
* Remote control walking (optional)
* Sensor of outrigger on the ground
|
Model |
30 |
50 |
80 |
|
|
Specification |
3t |
5t |
8t |
|
|
Maximum working radius |
8.83mx0.15t |
14mx0.5t |
16.5m |
|
|
Maximum above-ground head |
9.9mx0.7t |
16.8m |
|
|
|
Winch device |
Hook Speed |
0-8m/min (4 rope) |
12m/min (4 rope) |
12m/min (4 rope) |
|
Rope diameter |
8mm-45m |
11mm-80m |
11mm-80m |
|
|
Telescopic system |
Boom Type |
5-section boom, pentagonal structure |
5-section boom, pentagonal structure |
5-section boom, pentagonal structure |
|
Boom Length/Time |
3.1m-9.2m/20sec |
12.3m/54sec |
12.3m/54sec |
|
|
Up and down |
Boom Angle/Time |
0°~78°/13sec |
0°~78°/13sec |
0°~78°/13sec |
|
Slew system |
Slew Angle/Speed |
0-360°continuous/60sec |
0-360°continuous/38sec |
0-360°continuous/38sec |
|
Traction system |
Walking Way |
Hydraulic motor drives |
Hydraulic motor drives |
Hydraulic motor drives |
|
Walking Speed |
0~2.5km/h |
0~2.5km/h |
0~2.5km/h |
|
|
Grade Ability |
(25°)36% |
(25°)36% |
(25°)36% |
|
|
Operating characteristics |
Manual operation, remote control |
Manual operation, remote control |
Manual operation, remote control |
|
|
Transport parameters |
L*W*H(mm) |
2950*980*1560 |
5000*1500*1900 |
5000*1600*2180 |
|
Total weight(kg) |
2700 |
6200 |
7200 |
|
