Self propelled Standing Order Picker Equipment For Warehouse
video

Self propelled Standing Order Picker Equipment For Warehouse

The vertical order picker helps you increase productivity in your warehouse while reducing the risk of injuries. With its heavy duty, stable mast and a large working platform, the 0.4 ton order picker will give your employees the safety they need to work. Strong , steady and efficiently.
Send Inquiry
Product Introduction

Self propelled standing order picker is famous for its small compact body size, simple structure and very low failure rate. It moves and lifts all by battery power. Workers can stand on the platform to directly control the lifting and moving of equipment.


It moves 1 ton feed pallets with ease and is pretty much silent while doing so. It is built very well and has great welds.


Full electric standing order picker is lighter in weight, easy to handle by single person, flexible and convenient to operate. It is the best choice for stacking and reclaiming warehouses and supermarkets.20240914114506

Product test before delivery:

Total five test items:

1.Strengthening test detection

2.Stability detection

3.Detection of climbing performance and current

4.Debugging and testing of braking performance

5.Testing of technical parameters



1.Planetary Gear Drive Motors

2.Simultaneous Lift and Drive Capability

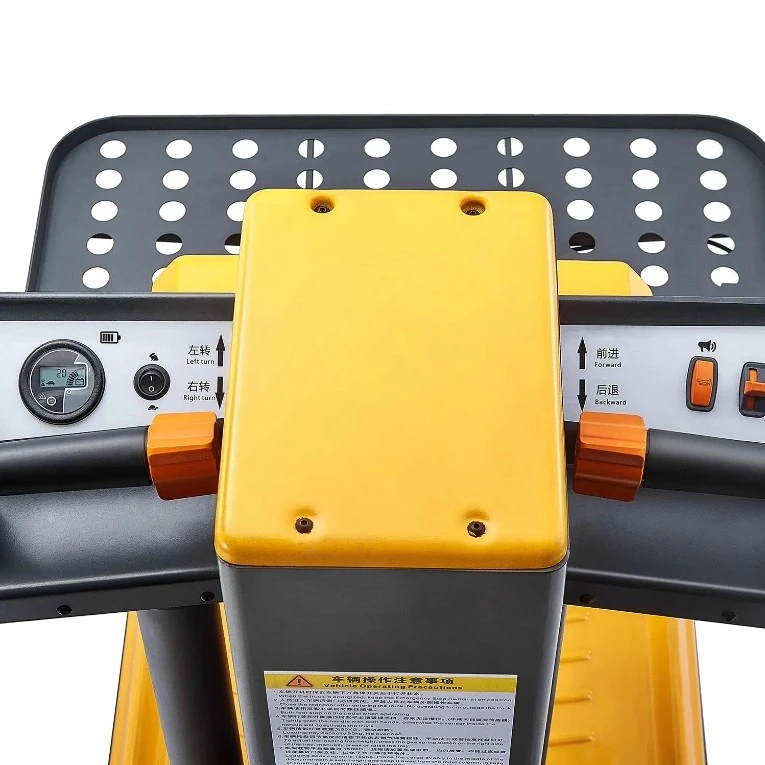

3.One-hand Drive and Steer System

4.Proportional Drive

5.Automatic Five-Hour Battery Charger

6.Battery Discharge Indicator -- Platform and base

7.Lubrication -- Free Anodized Aluminum Mast Sections

8.Maintenance -- Free Mast Guide System

9.Strobe Lights Front and Rear

10.Stand-on Foot Switch Operation Enable Control

11.Platform Gate Operation Interlock

12.Adjustable Height Material Tray

13.Non-Marking Tire Material

14.Lanyard Attachment Anchor Point

15.Hourmeter

16.Horn

17.Shipping Skid

18.Transportation Tie Downs

19.Side and Front Bumpers

20240914115817

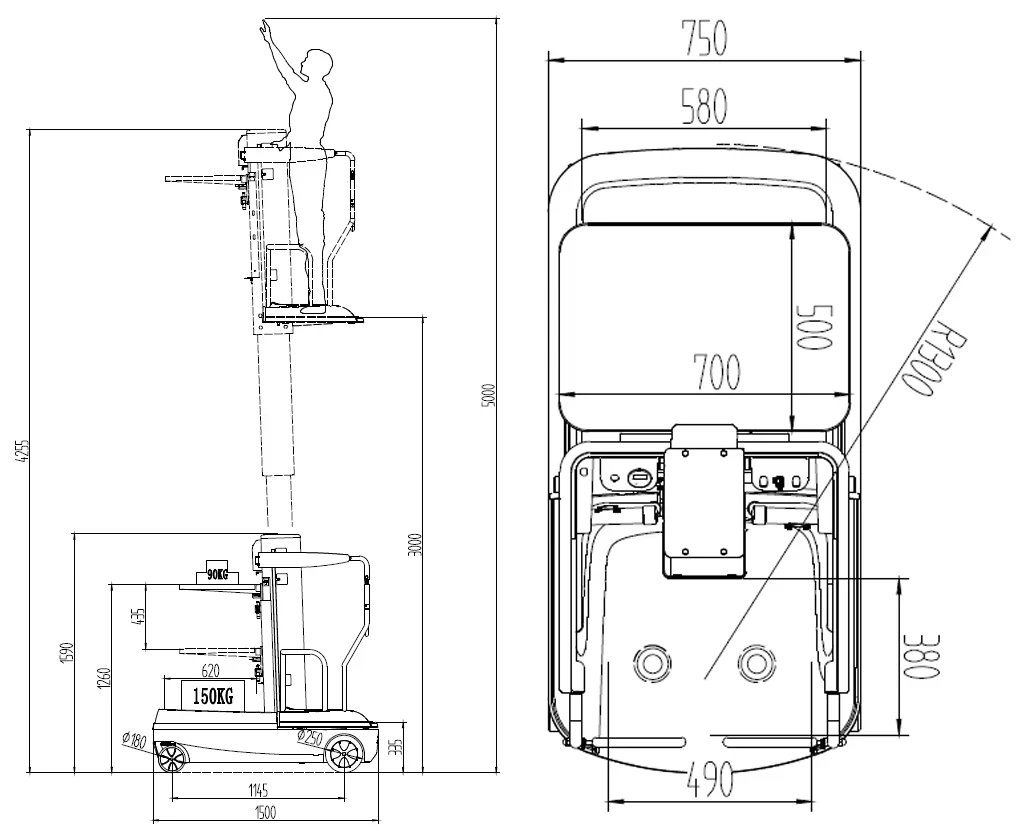

Model

OPSM

Operation type

stand driving

Height, lowered

inch

62.6

mm

1590

Overall length

inch

59

mm

1500

Overall width

inch

29.5

mm

750

Max lift height, platform

inch

118

mm

2995

Max reachable height

inch

197

mm

5000

Turning radius

inch

51.2

mm

1300

Size of load tray

inch

27.5x19.7

mm

700*500

Load capacity of loading tray

lbs

198

kg

90

Load capacity of loading dock

lbs

330

kg

150

Tyre size, front

inch

⌀7.1

mm

⌀180

Tyre size, rear

inch

⌀9.8

mm

⌀250

Wheelbase ground distance

m2 (inch)

2.6

m2(mm)

65

Travel speed, laden/unladen

(Mile/ h)

2.8

(Mile/ h)

2.8

Battery Voltage, normal capacity K20

(V/Ah)

24/105

(V/Ah)

24/105

Battery dimensions

inch

10.2x6.6x8.3

mm

260*168*212

Service weight

lbs

1653.5

kg

750

20240914115839
