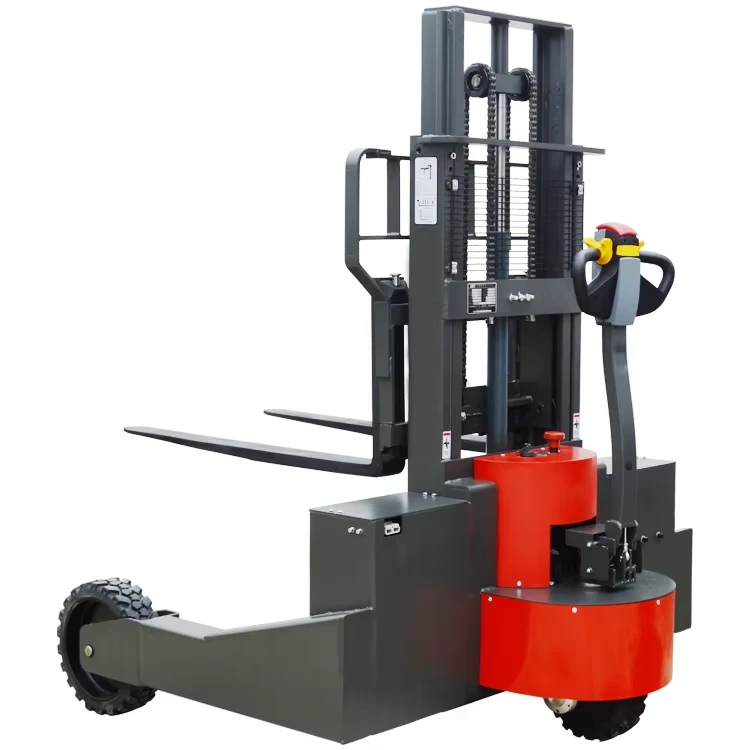

Electric Off Road All Rough Terrain Pallet Stacker Forklift
|
Model |
CDD-H |
||
|
Performance |
Maximum load capacity |
kg |
1500/2000 |
|
with load center at |
mm |
500 |
|
|
Travel speed without load/with load |
km/h |
4.5/4 |
|
|
Lifting speed without load /with load |
mm/s |
155/100 |
|
|
Lowered speed without load /with load |
mm/s |
110/100 |
|
|
Ascend slope ability without load /with load |
% |
8/6 |
|
|
Weight (without battery) |
kg |
800 |
|
|

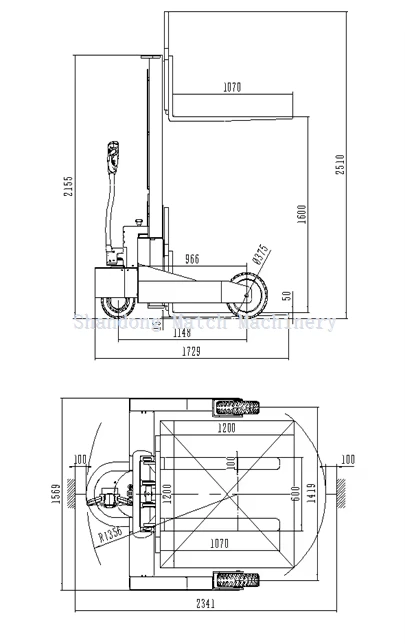

Dimensions |
Overall length/width/height of frame |
mm |
1773/1570 |
|
Maximum lifting height |
mm |
3500 |
|
|
Wheelbase |
mm |
1147 |
|
|
Fork size(length *width*thickness) |
mm |
1070*100*35 |
|
|
Distance between fork-arms |
mm |
685 |
|
|
Ground clearance |
mm |
85 |
|
|
Minimum truning radius |
mm |
1354 |
|
|
Minimum aisle width |
mm |
2369 |
|
|
Lowered height |
mm |
≤65 |
|
|
Tire |
Front wheel |
mm |
300*100 |
|
Drive wheel |
mm |
300*90 |
|
|
Electrical components |
Drive motor Rated output/AC motor |
kw |
1.5 |
|
Hoist motor Rated output/DC motor |
kw |
2.2 |
|
|
battery |
Voltag/Capacity |
V/AH |
24/120 |
|
Weight |
kg |
35*2 |
|
