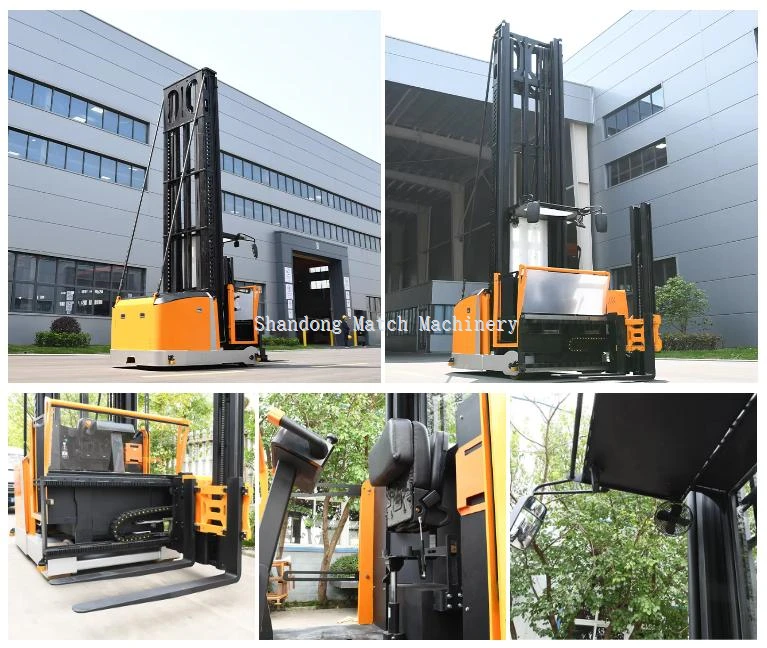

3-Way Electric Man-Up Forklift VNA Truck
>To load and unloaded with rotate ,side shift ,forks go left, right and front three ways without turning the truck. High-strength
>German Krupp steel mast with high strength,light weight and excellent workmanship;
Products Parameters
|
Features |
1.1 |
Model |
CDMC15-75 |
|
|
1.2 |
Power Type |
Q(kg) |
1500 |
|
|
1.3 |
Operation mode |
C(mm) |
600 |
|
|
1.4 |
Load Capacity |
X(mm) |
384 |
|
|
1.5 |
Load Center |
Y(mm) |
1913 |
|
|
Weight |
2.1 |
Total Weigh |
kg |
9300 |
|
Wheels, chassis |
3.1 |
Wheel type |
PU |
|
|
3.2 |
Front wheel specification |
∅×w(mm) |
φ350*200 |
|
|
3.3 |
Driving wheel specification |
∅×w(mm) |
φ400*160 |
|
|
3.4 |
Number of tires front/drive |
2/1X |
||
|
3.5 |
Wheel base, front wheel |
b10(mm) |
1190 |
|
|

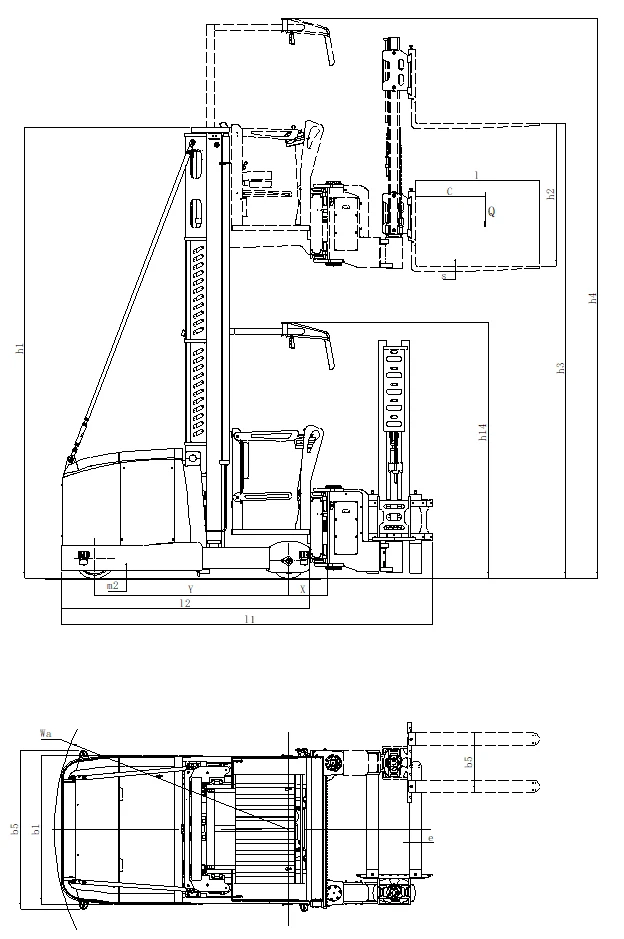

Dimension |
4.1 |
Closing height of the mast |
h1(mm) |
4480 |
|
4.2 |
Free lifting height |
h2(mm) |
1500 |
|
|
4.3 |
Lifting height |
h3(mm) |
7500 |
|
|
4.4 |
Maximum height of mast during operation |
h4(mm) |
8400 |
|
|
4.5 |
Top guard height |
h14(mm) |
2412 |
|
|
4.6 |
Fork height when mast retracted |
h13(mm) |
45 |
|
|
4.7 |
Vehicle length |
l1(mm) |
3679 |
|
|
4.8 |
Body length |
l2(mm) |
2448 |
|
|
4.9 |
Body width |
b1(mm) |
1474 |
|
|
4.10 |
The fork is wide outside |
b5(mm) |
260-720 |
|
|
4.11 |
Fork size |
s/e/l(mm) |
45*125*1220 |
|
|
4.12 |
Training wheel outside width |
b5(mm) |
1609 |
|
|
4.13 |
Minimum ground clearance |
m2(mm) |
80 |
|
|
4.14 |
Stacking channel width, pallet 1200×1200 |
Ast(mm) |
1700 |
|
|
4.15 |
Main channel width |
mm |
4410 |
|
|
4.16 |
Rail height |
mm |
180 |
|
|
4.17 |
Minimum turning radius |
Wa(mm) |
2300 |
|
|
Property |
5.1 |
Travel speed (no load/full load) |
km/h |
8/7 |
|
5.2 |
Lifting speed (no load/full load) |
m/s |
0.35/0.3 |
|
|
5.3 |
Descent speed (no load/full load) |
m/s |
0.3/0.35 |
|
|
5.4 |
Maximum climbing capacity(no load/full load) |
％ |
≤10 |
|
|
5.5 |
Service brake |
electromagnetism |
||
|
Electric machine |
6.1 |
Drive motor power |
kw |
8 |
|
6.2 |
Boost motor power |
kw |
12 |
|
|
6.3 |
Battery type |
Lead-acid battery |
||
|
6.4 |
Battery voltage/capacitance |
V/Ah |
48V540Ah |
|
|
6.5 |
charger |
V/A |
48V/75A |
|
|
Other |
8.1 |
Drive control mode |
AC |
|
|
8.4 |
Driver's ear noise level according to EN12053 |
dB(A) |
75 |
