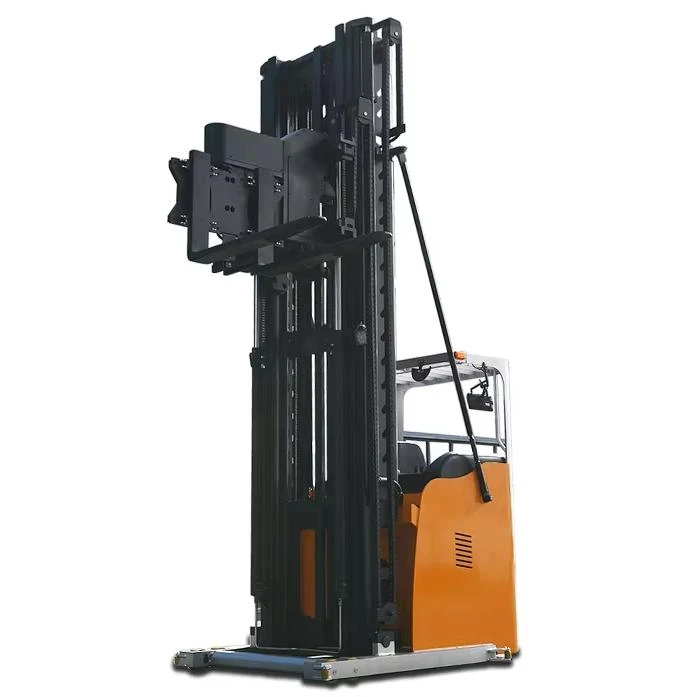

Seated Type Electric Pallet Stacker
- 3 Ways load and unload goods with the fork turning and rotate when the forklift does not turn, big load capacity, high lift 1600mm Aisle Width saves space and greatly improves the storage capacity make it first option for intense warehouse and storage extending.
- Side guide roller helps automation of the steering control to pass the smallest aisle width Branded control system has multiple automatic protection systems to provide a higher-level safety.
- The high-strength German Krupp steel mast does not deform and makes it run smoothly and reliably.
- Optimized mast system reduces the quiver when it lifts and lowers.

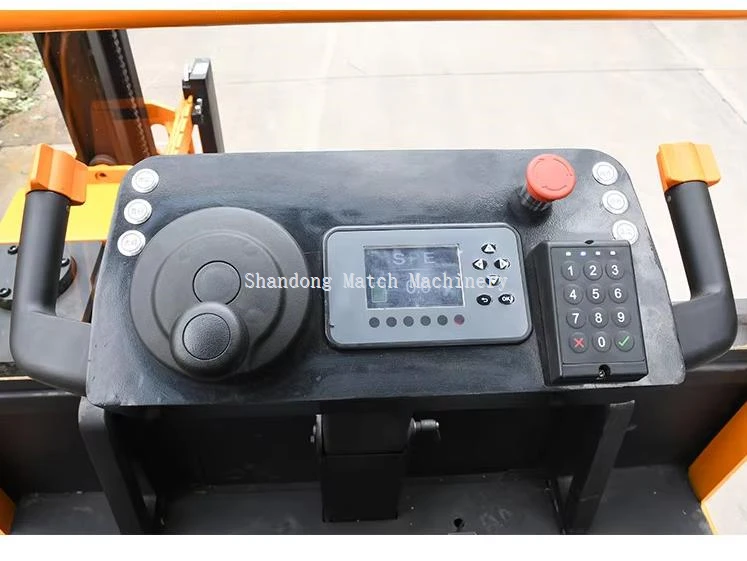

- Large-screen HD display with camera monitor, timing, fault display and excellent digital transmission to know the status in real time, which is convenient for troubleshooting and maintenance.
- Magnetic navigation/laser navigation AGV customizable.
|
Characteristic |
1.1 |
Model |
CDDM15E-60S |
|
|
1.2 |
Power Type |
Electric |
||
|
1.3 |
Operation Type |
Seated Type |
||
|
1.4 |
Load Capacity |
Q(kg) |
1500 |
|
|
1.5 |
Load Center |
C(mm) |
600 |
|
|
Weight |
2.1 |
Service Weight (With Battery) |
kg |
<6500 |
|
Wheels, Chassis |
3.1 |
Wheel Type |
PU |
|
|
3.2 |
Driving Wheel |
∅×w(mm) |
Ф400*160 |
|
|
3.3 |
Front Wheel |
∅×w(mm) |
Ф145*100 |
|
|
3.4 |
Wheel Tread (Front) |
b10(mm) |
1315 |
|
|
3.5 |
Mast Lowered Height |
h1(mm) |
3165 |
|
|
Dimensions |
4.1 |
Free Lift |
h2(mm) |
1980 |
|
4.2 |
Lift Height |
h3(mm) |
6000 |
|
|
4.3 |
Height,mast entended |
h4(mm) |
7185 |
|
|
4.4 |
Height of overhead Guards |
h14(mm) |
2180 |
|
|
4.5 |
Overall Length (Body/Overall) |
l2(mm) |
2960 |
|
|
4.6 |
Overall Width |
b1(mm) |
1567 |
|
|
4.7 |
Anti-collision guardrails width |
(mm) |
1617 |
|
|
4.8 |
Fork Size |
s/e/l(mm) |
45/125/1220 |
|
|
4.9 |
Fork Spread (Customizable) |
b5(mm) |
260-650 |
|
|
4.10 |
Min.Ground Clearance |
m2(mm) |
32 |
|
|
4.11 |
Aisle Width |
Ast(mm) |
1760(1200*1200 Pallet) |
|
|
4.12 |
Channel Guide Height |
(mm) |
120 |
|
|
4.13 |
Min. Turning Radius |
Wa(mm) |
1989 |
|
|
4.14 |
Main AisleWidth |
mm |
3560 |
|
|
4.15 |
Max. Travel Speed (Unladen/Laden) |
km/h |
8/7 |
|
|
Performance |
5.1 |
Lifting Speed (Unladen/Laden) |
m/s |
0.275/0.215 |
|
5.2 |
Lowering Speed (Unladen/Laden) |
m/s |
0.150/0.195 |
|
|
5.3 |
Driving Brake |
Electromagnetic |
||
|
5.4 |
Drive Motor |
kw |
8 AC |
|
|
Motor, Charger |
6.1 |
Lift Motor |
kw |
8.6 AC |
|
6.2 |
Battery Type |
Lead Acid |
||
|
6.3 |
Battery voltage/nominal capacity |
V/Ah |
48V/400Ah |
|
|
6.4 |
Type of Drive Control |
AC |
||
|
The data is for reference only, and the details shall be subject to the actual vehicle. |
||||
