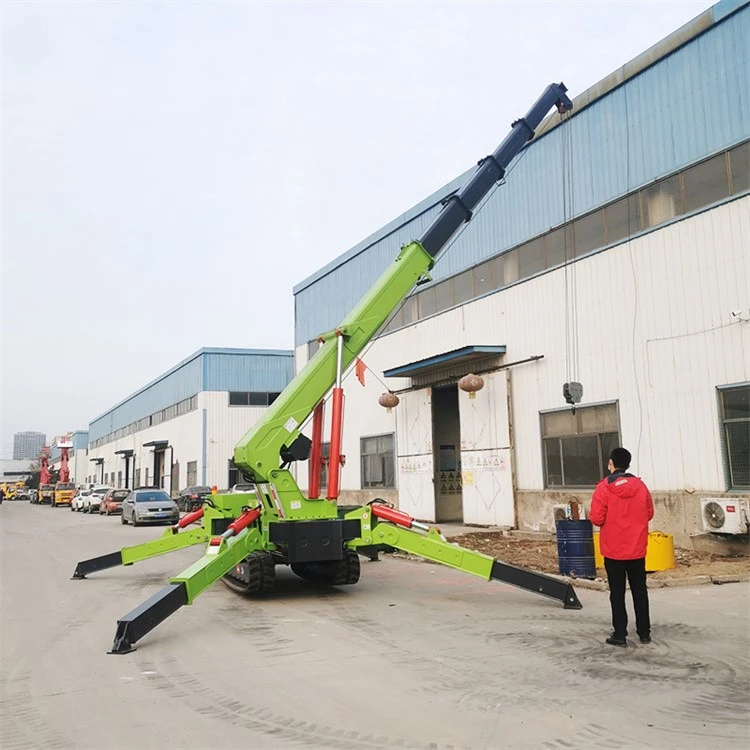

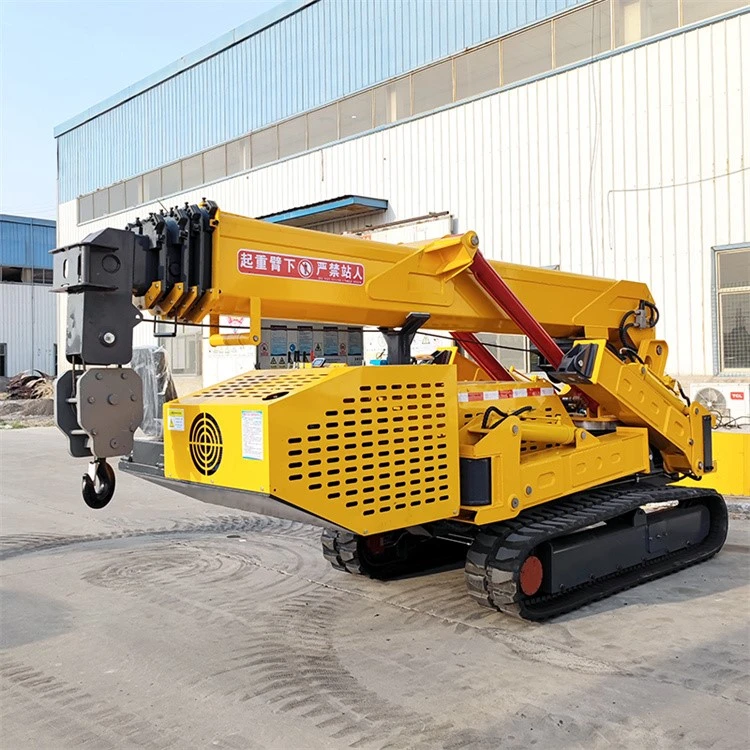

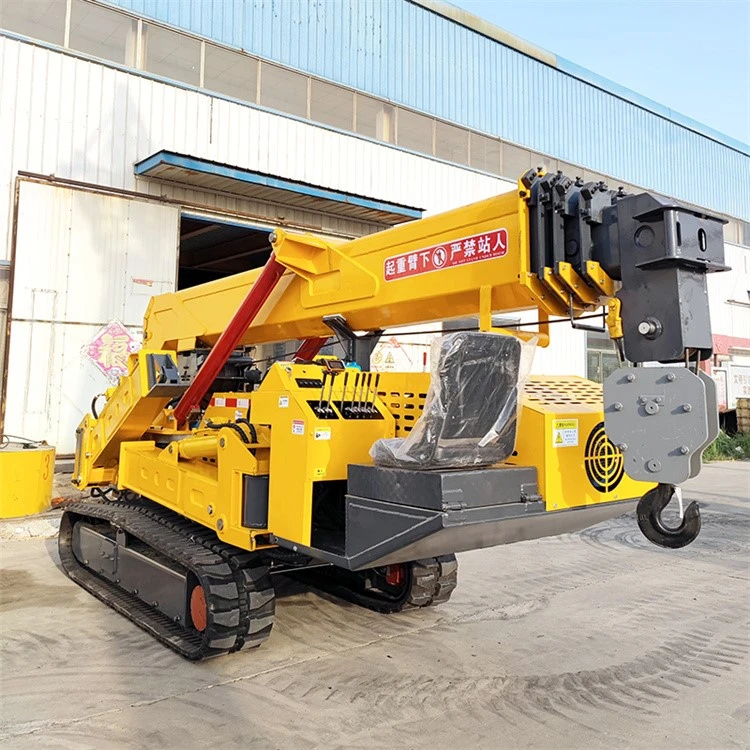

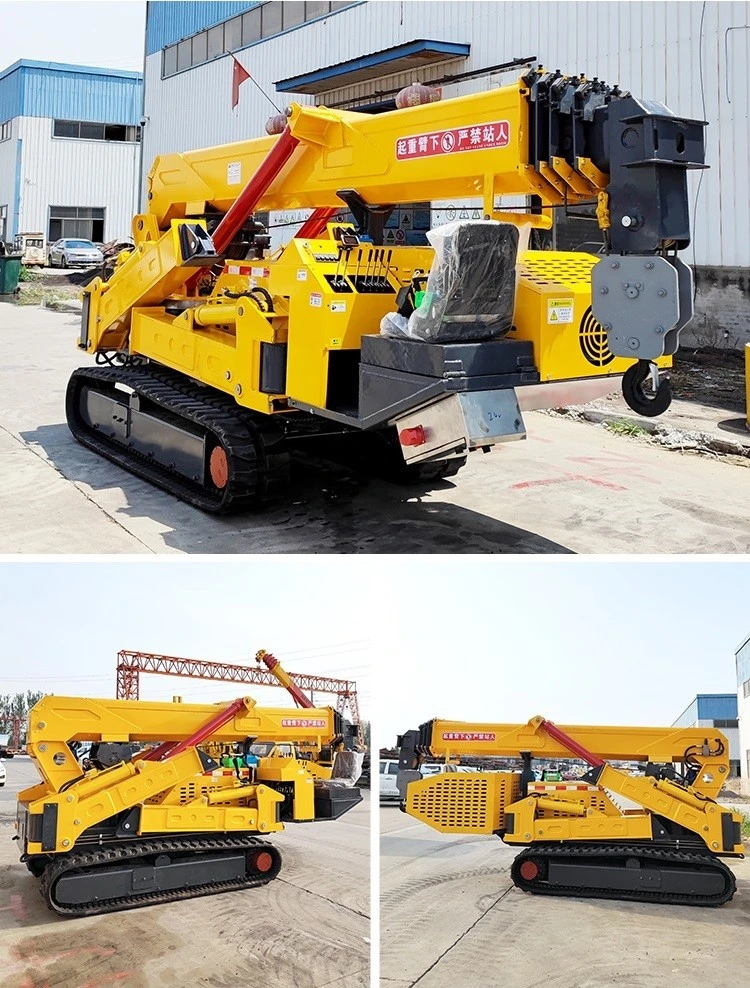

10ton Spider Crane
Mini Spider Crawler Crane is commonly used for loading and unloading of heavy equipment in the construction industry for the movement of materials and in the manufacturing industry. It can be used in installing glass curtain wall, petrochemical pipes, machine inspection, railway construction and maintenance in workshop, electric power construction or municipal construction.
Spider Crane are suitable for cargo handling in the transportation industry, material movement in the construction industry, and heavy equipment assembly in the manufacturing industry. It is especially effective for operation in narrow spaces. It can be used in installing glass curtain wall, petrochemical pipes, railway construction, machine inspection and maintenance in workshop, electric power construction or municipal construction.
|
Model |
3T |
5T |
10T |
|
|
Specification |
3t |
5t |
10t |
|
|
Maximum working radius |
8.83mx0.15t |
14mx0.5t |
17.5m |
|
|
Maximum above-ground head |
9.9mx0.7t |
16.8m |
19.6m |
|
|
Winch device |
Hook Speed |
0-8m/min (4 rope) |
12m/min (4 rope) |
12m/min (4 rope) |
|
Rope diameter |
8mm-45m |
11mm-80m |
11mm-80m |
|
|
Telescopic system |
Boom Type |
5-section boom, pentagonal structure |
5-section boom, pentagonal structure |
5-section boom, pentagonal structure |
|
Boom Length/Time |
3.1m-9.2m/20sec |
12.3m/54sec |
12.3m/54sec |
|
|
Up and down |
Boom Angle/Time |
0°~78°/13sec |
0°~78°/13sec |
0°~78°/13sec |
|
Slew system |
Slew Angle/Speed |
0-360°continuous/60sec |
0-360°continuous/60sec |
0-360°continuous/60sec |
|
Traction system |
Walking Way |
Hydraulic motor drives |
Hydraulic motor drives |
Hydraulic motor drives |
|
Walking Speed |
0~2.5km/h |
0~2.5km/h |
0~2.5km/h |
|
|
Grade Ability |
(25°)36% |
(25°)36% |
(25°)36% |
|
|
Operating characteristics |
Manual operation, remote control |
Manual operation, remote control |
Manual operation, remote control |
|
|
Transport parameters |
L*W*H |
2950*980*1560mm |
5000*1500*1900mm |
5450mm*1760mm*2530mm |
|
Total weight |
2700kg |
6200kg |
8500kg |
|
Compact Body, Hydraulic Walking, Safety Design To Prevent Misoperation, Adapt To Rugged Outdoor Space, Pentagon-Type Telescopic Boom, Remote Control Device Energy-Saving And Durable, Torque Limiter, To Prevent Overload Operation
