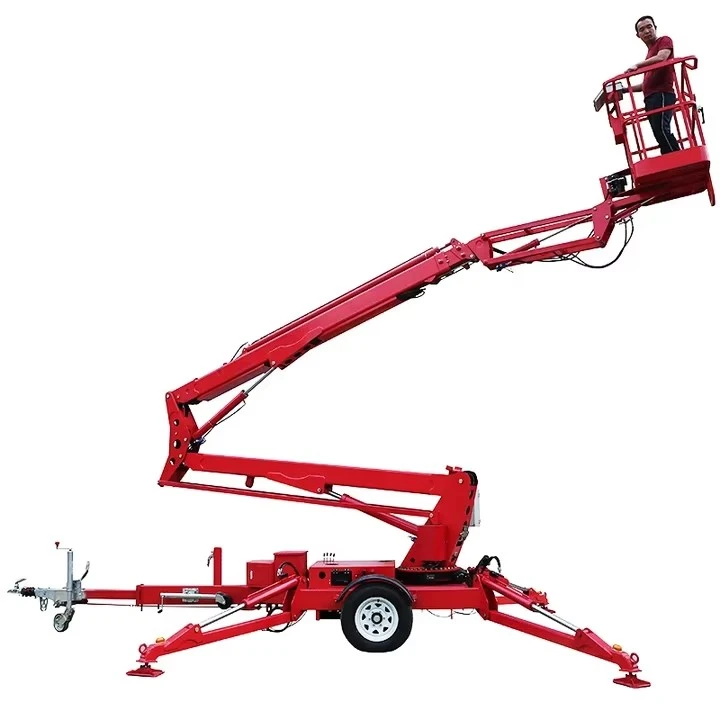

Towable Telescopic Boom Lift Tables
|
8-20m 250kg Towable Telescopic Articulating Boom Electric Hydraulic Spider Lift for repair |
|
Model |
Platform height |
Capacity |
Working radius |
Power source |
Dimension |
Weight |
|
TGZ-8 |
8m |
200kg |
4.5m |
Diesel engine |
5.2*1.5*1.9m |
1500kg |
|
TGZ-10 |
10m |
200kg |
5m |
Diesel engine |
5.4*1.665*1.9m |
1700kg |
|
TGZ-12 |
12m |
200kg |
6m |
Diesel engine |
6.4*1.665*1.9m |
2000kg |
|
TGZ-14 |
14m |
200kg |
8.5m |
Diesel engine |
6.2*1.73*2.1m |
2350kg |
|
TGZ-16 |
16m |
200kg |
9m |
Diesel engine |
7*1.73*2.2m |
2600kg |
|
TGZ-18 |
18m |
200kg |
10m |
Diesel engine |
7.1*1.85*2.26m |
4300kg |
|
TGZ-20 |
20m |
200kg |
12m |
Diesel engine |
7.7*1.85*2.26m |
4450kg |
Application scenarios
residential property, workshop,residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.
Attention about trailer boom lift:
1. When the platform works, the work bench should be horizontal
2. When work outdoors, workers should wear safety rope when the platform is higher than six meters.
3. In the process of lifting platform, anyone is prohibited from climbing.
4. Forbid working until support legs are right. After littered, platform should not be moved.
